Description

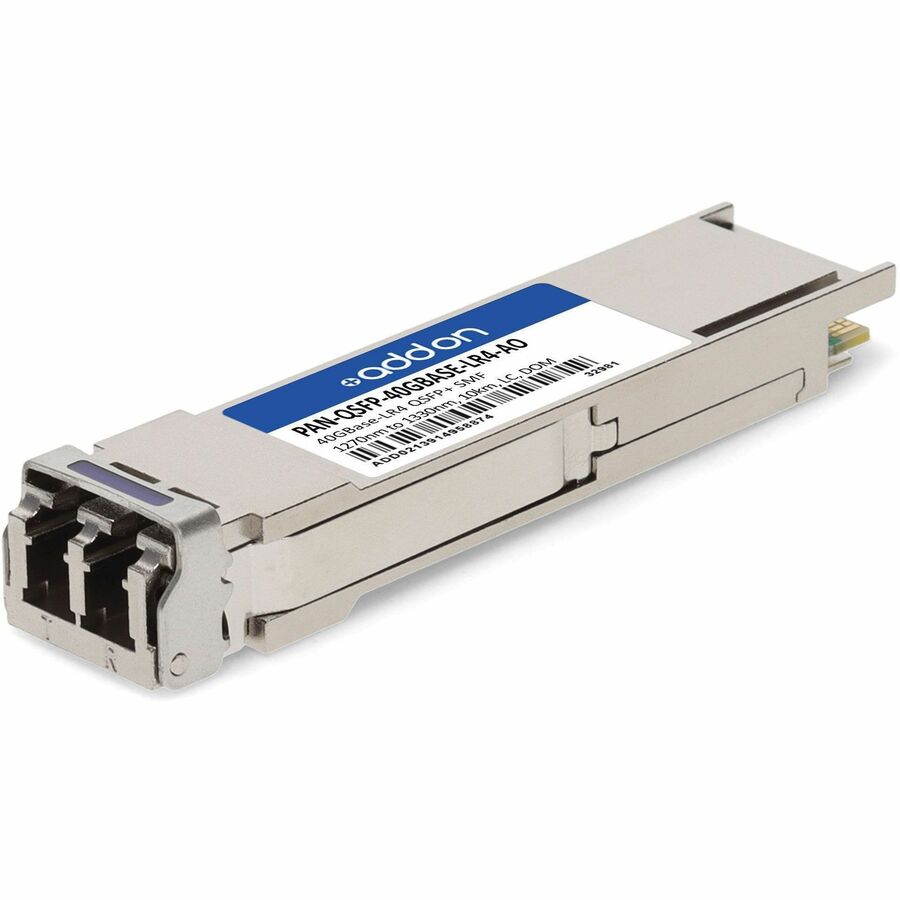

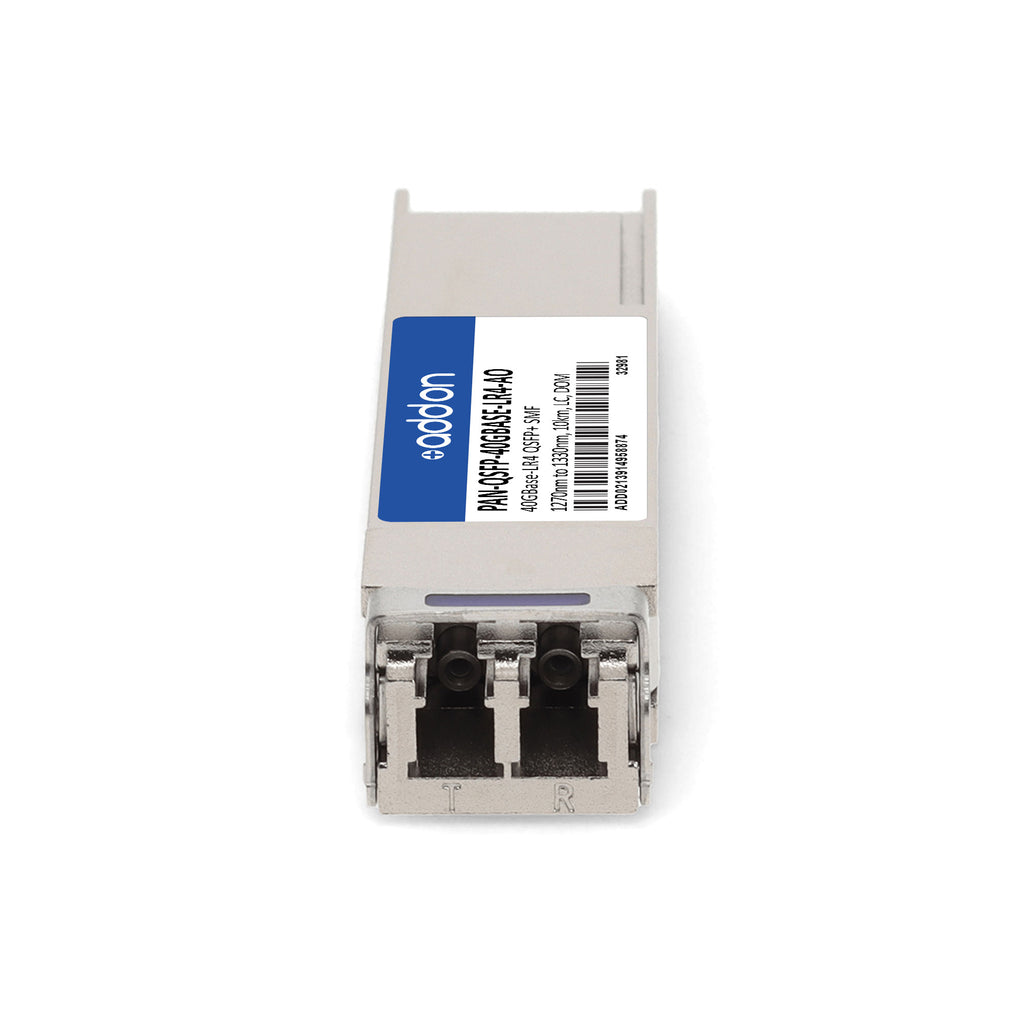

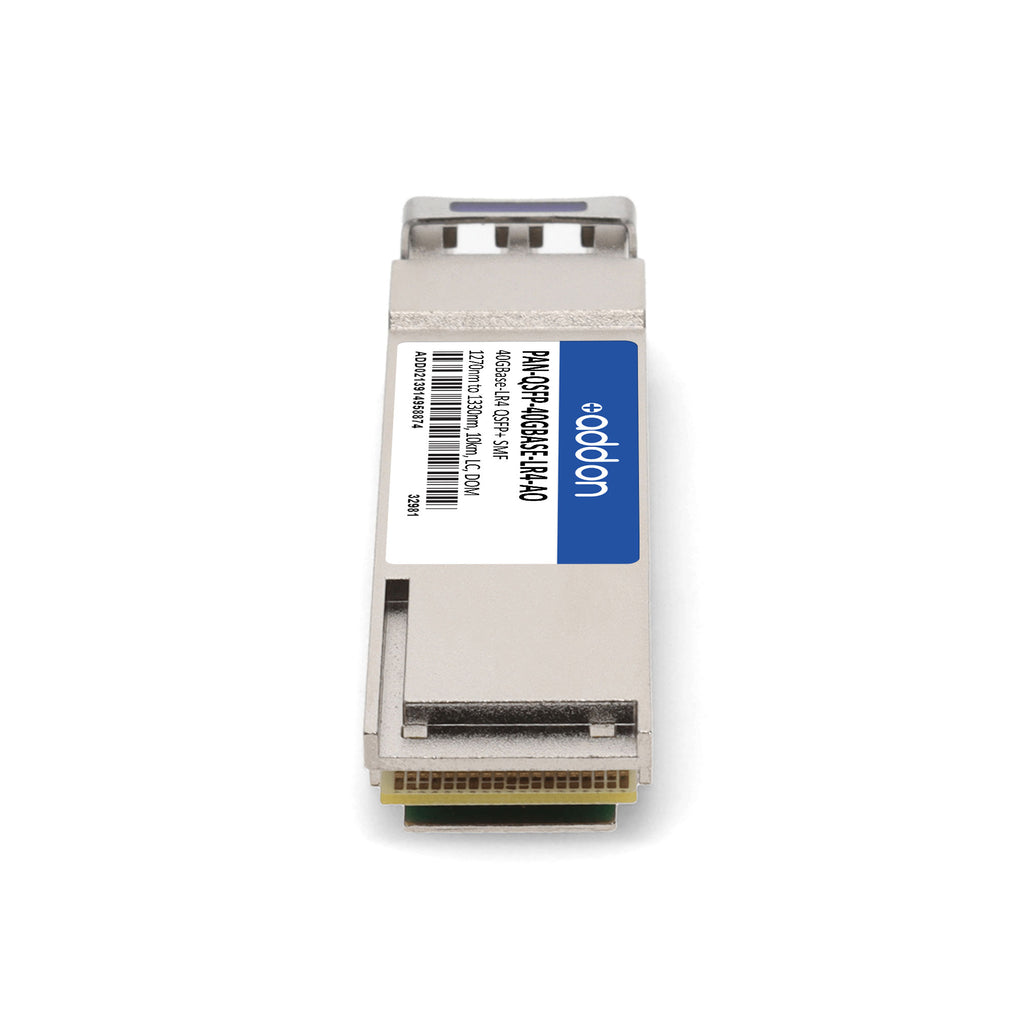

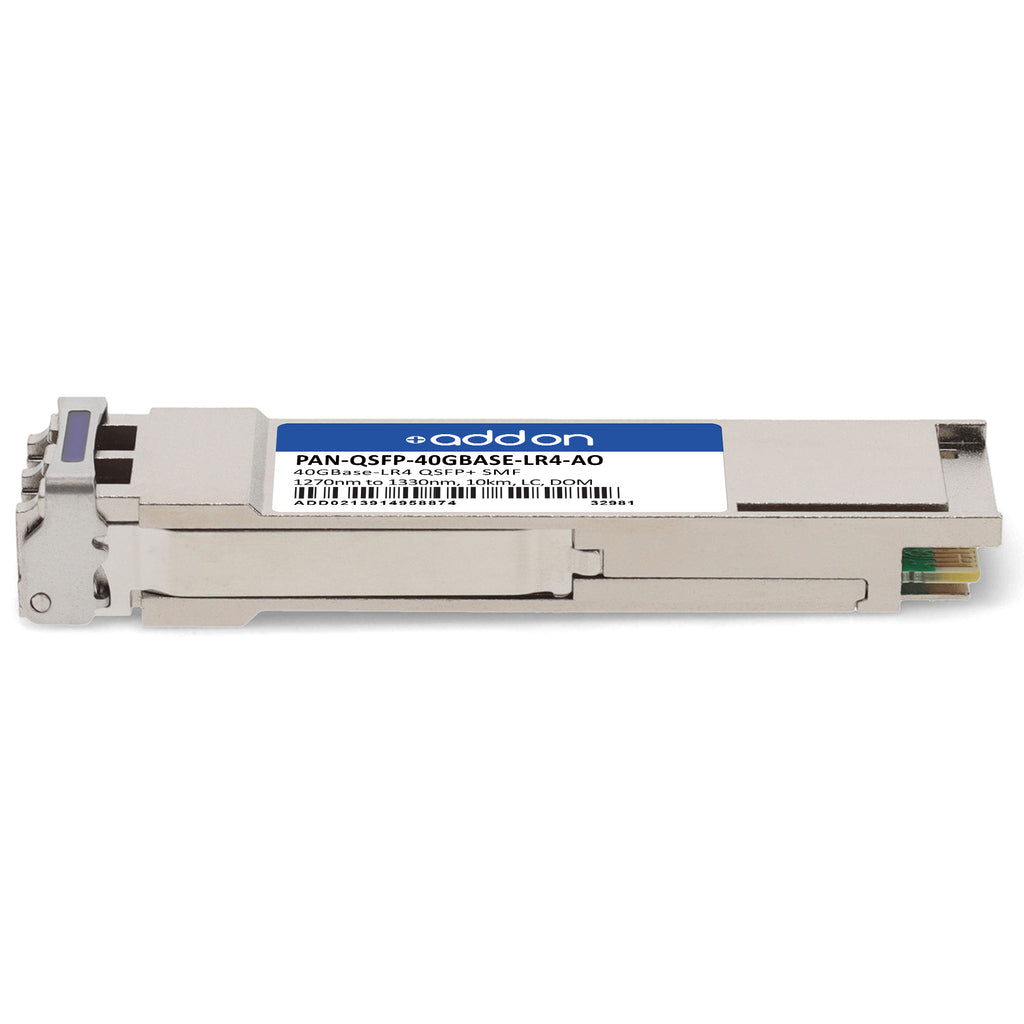

The AddOn Palo Alto Networks® PAN-QSFP-40GBASE-LR4-AO is a high-performance QSFP+ optical transceiver designed to deliver reliable 40GBase-LR4 Ethernet connectivity over single-mode fiber (SMF) up to 10 km. Operating across four wavelengths (1270 nm – 1330 nm), it provides excellent optical performance with low power consumption and robust signal integrity.
Engineered for seamless interoperability, this transceiver is 100% compatible with the equivalent Palo Alto Networks® module and complies with IEEE 802.3ba and SFF-8436 standards. It features a duplex LC connector, digital optical monitoring (DOM) for real-time diagnostics, and hot-swappable functionality for simple deployment and maintenance. With TAA compliance, RoHS certification, and a rugged EMI-shielded housing, it is ideal for high-density data center, enterprise, and access network applications. AddOn transceivers are application-tested, uniquely serialized, and backed by a limited lifetime warranty — ensuring maximum reliability and network uptime.
| Specification | Details |
|---|---|
| Brand Compatibility | Palo Alto Networks® |
| Part Number / SKU | PAN-QSFP-40GBASE-LR4-AO |
| Form Factor | QSFP+ |
| Data Rate | 40 Gbps |
| Wavelength | 1270 nm – 1330 nm (4 lanes: 1271, 1291, 1311, 1331 nm) |
| Reach / Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Optical Modulation Amplitude (OMA) | –4 dBm to 3.5 dBm per lane |
| Average Launch Power (per lane) | –7 dBm to 2.3 dBm |
| Receiver Sensitivity (per lane) | ≤ –11.5 dBm |
| Receiver Damage Threshold | 3.3 dBm |
| Power Consumption | 3.5 W (typical) |
| Power Supply Voltage | 3.13 V – 3.47 V |
| Operating Temperature | 0 °C – 70 °C (Commercial) |
| Compliance Standards | IEEE 802.3ba, SFF-8436, RoHS, TAA |
| Digital Optical Monitoring (DOM) | Supported |
| Hot-Swappable | Yes |
| ESD / EMI Protection | Excellent ESD protection, metal housing with low EMI |
| Applications | 40G Ethernet, Enterprise, Access Networks |
| Warranty | Limited Lifetime Warranty |
