Description
The Eaton 93PX13KHWPAR is a high-performance three-phase UPS engineered to deliver reliable, scalable power protection for critical IT infrastructure, data centers, and industrial environments. Designed with N+1 redundancy, this system ensures continuous uptime by providing backup capacity in the event of module failure, making it ideal for mission-critical applications where reliability is non-negotiable.
With online double-conversion topology and unity power factor, the 93PX delivers clean, consistent power while maximizing usable capacity. Its advanced ECO mode achieves up to 97% efficiency, reducing energy consumption and operational costs without compromising protection. The included parallel maintenance bypass panel enables seamless servicing without downtime, while cybersecure network cards provide full remote monitoring and control.

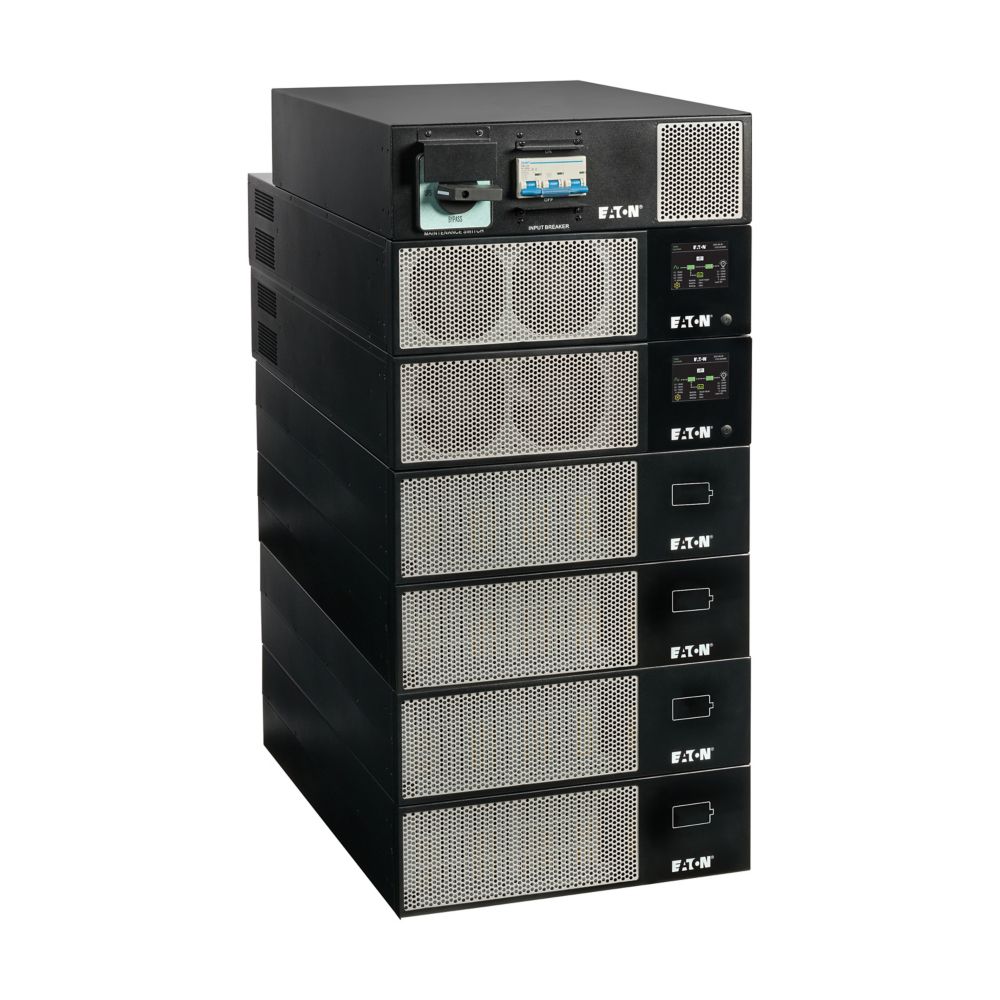

This UPS is built for flexibility and growth, featuring expandable runtime with multiple extended battery modules and a compact 21U rackmount design to optimize valuable rack space. Its plug-and-play modular architecture simplifies deployment and maintenance, ensuring minimal disruption to operations.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Series | 93PX |
| UPS Type | Three-Phase Online Double-Conversion UPS |
| Power Capacity | 13,000 VA / 13,000 W |
| Topology | Online Double Conversion |
| Redundancy | N+1 Redundant Configuration |

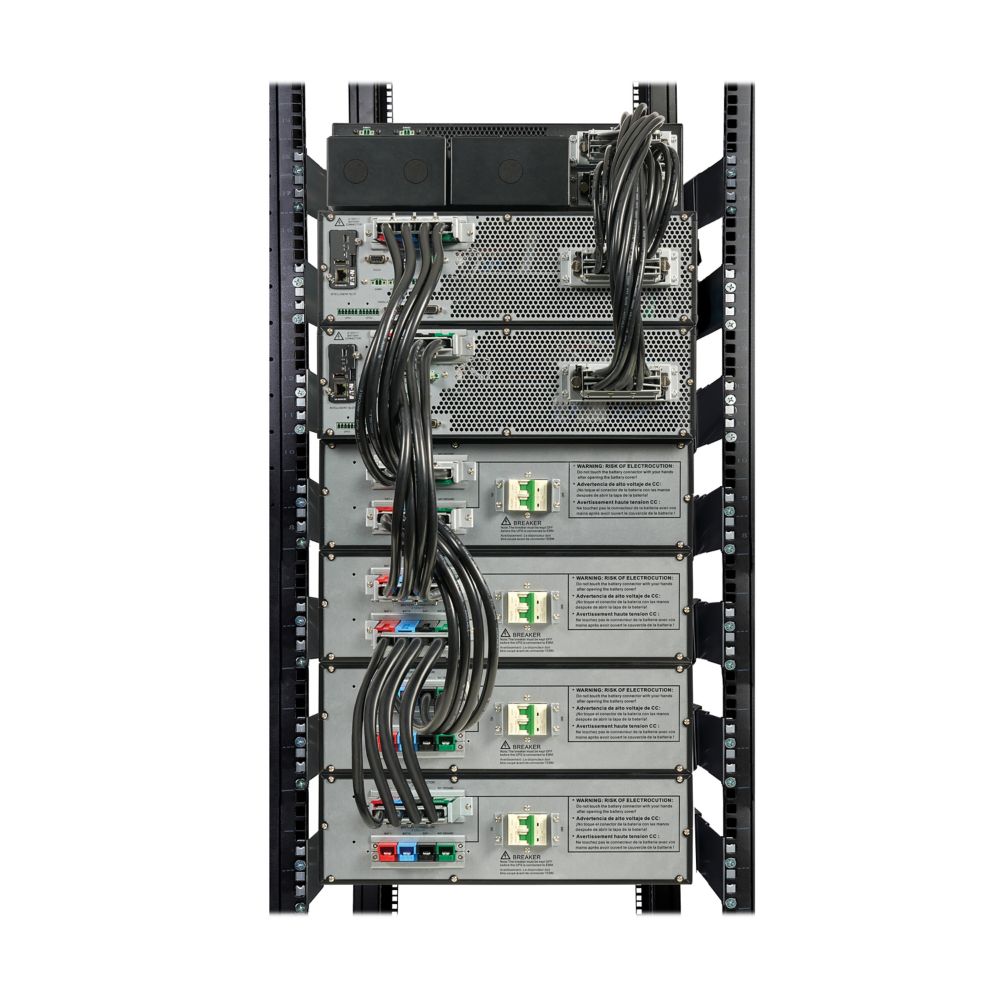

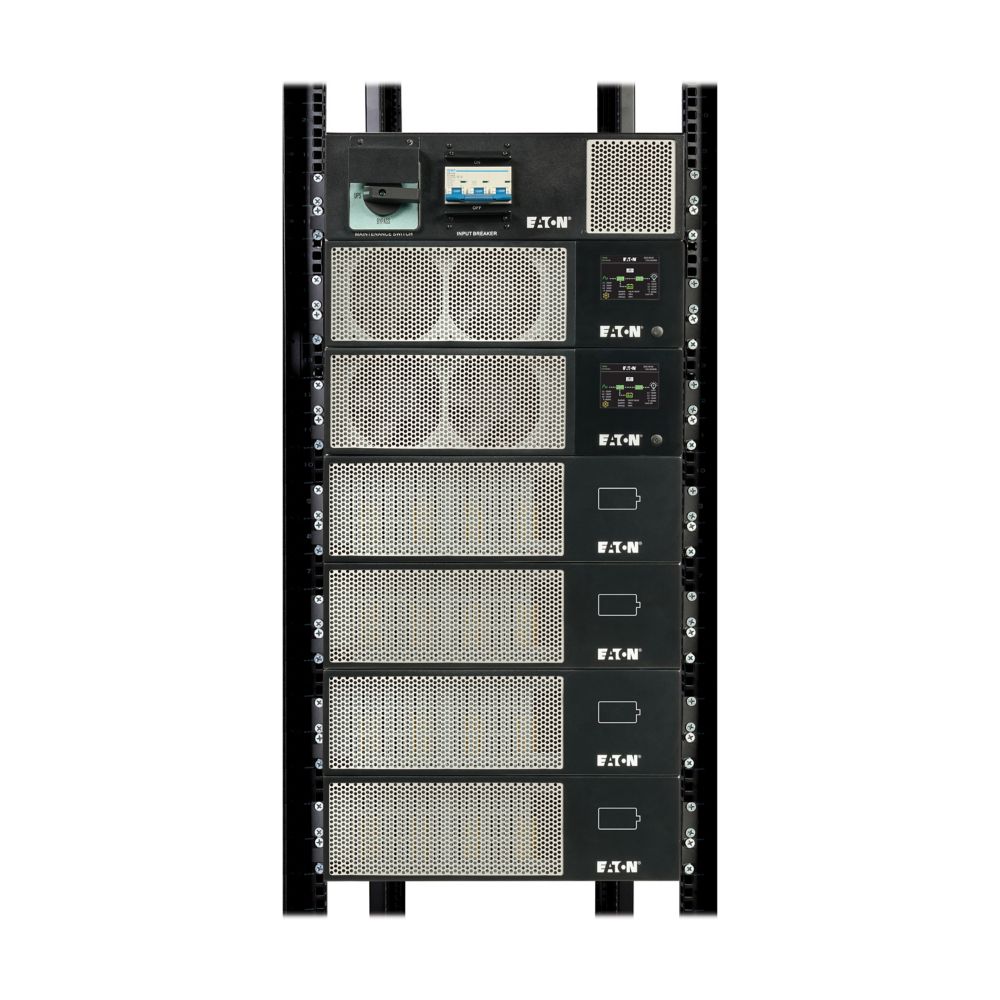

| Form Factor | Rackmount (4-Post, 19 Inch) |
| Rack Height | 21U |
| Input Voltage | 120/208V AC, 3-Phase Wye |
| Output Voltage | 120/208V AC, 3-Phase Wye |
| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Frequency | 50/60 Hz ±4 Hz |
| Input Power Factor | 1.0 |
| Output Power Factor | 1.0 |
| Efficiency | Up to 97% in ECO Mode |
| Waveform (AC & Battery Mode) | Pure Sine Wave |
| Transfer Time (ECO Mode) | <10 ms |
| THDi | < 4% at Full Load |
| Current Crest Ratio | 3:1 |
| DC Voltage | ±120 Vdc |
| Battery Type | External Extended Battery Modules (EBM) |
| Expandable Runtime | Up to 5 EBMs per Power Module |
| Typical Battery Life | 3.5 to 6 Years |
| Maintenance Bypass | Parallel Maintenance Bypass Panel Included |
| Network Management | Dual NETWORK-M3 Gigabit Network Cards |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 140°F (-15°C to 60°C) |
| Humidity | 0–95% Non-Condensing |
| Operating Elevation | Up to 3000m (Derating Above 1000m) |
| Dimensions (H x W x D) | 36 x 17.244 x 32.25 Inches |
| Weight | 900.59 lbs |

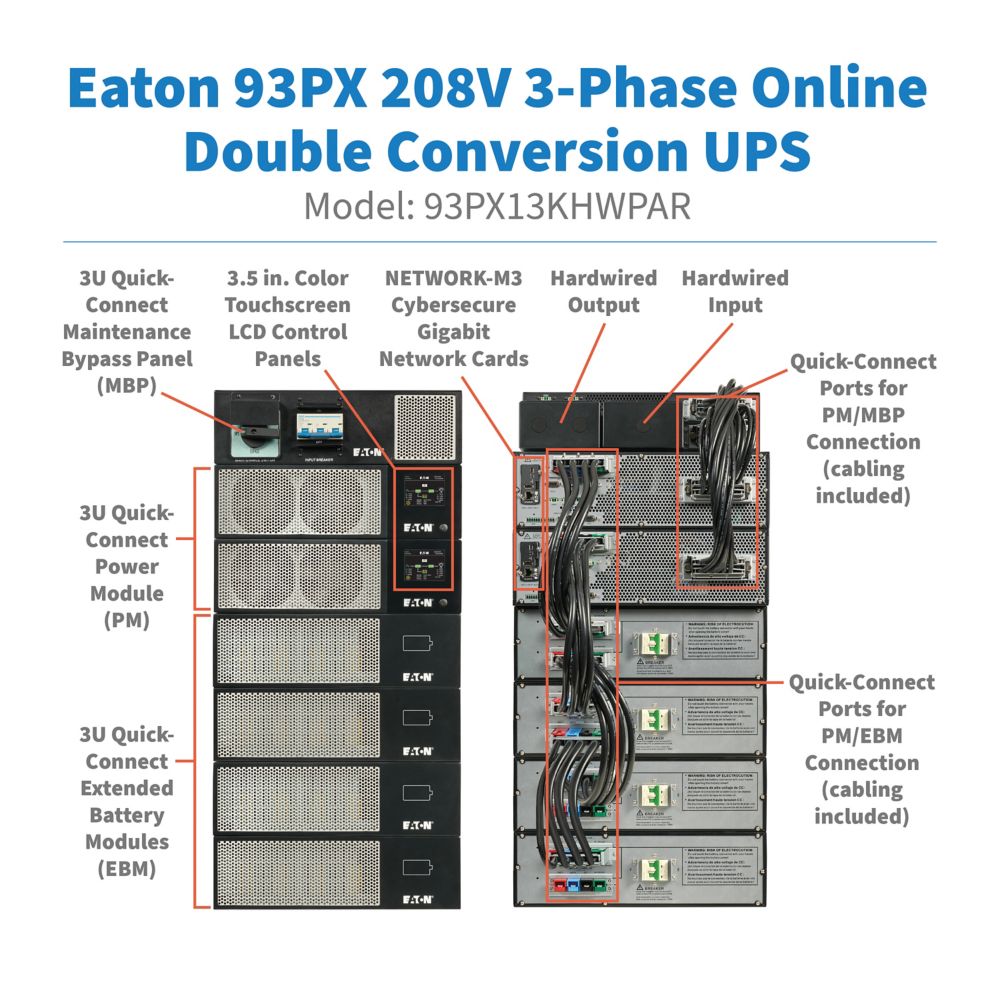

| Included Components | 2 Power Modules, 4 EBMs, Maintenance Bypass Panel, Network Cards, Rack Hardware, Cabling |
