Description

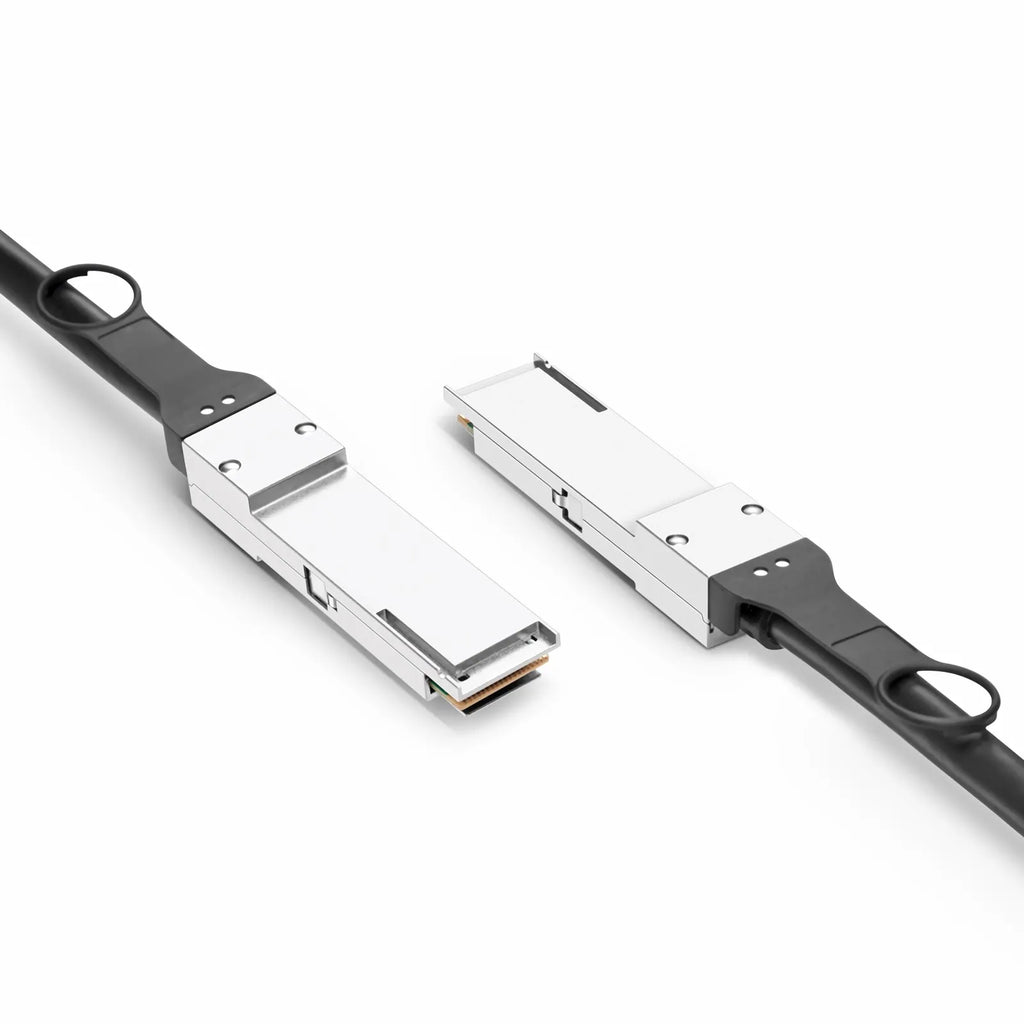

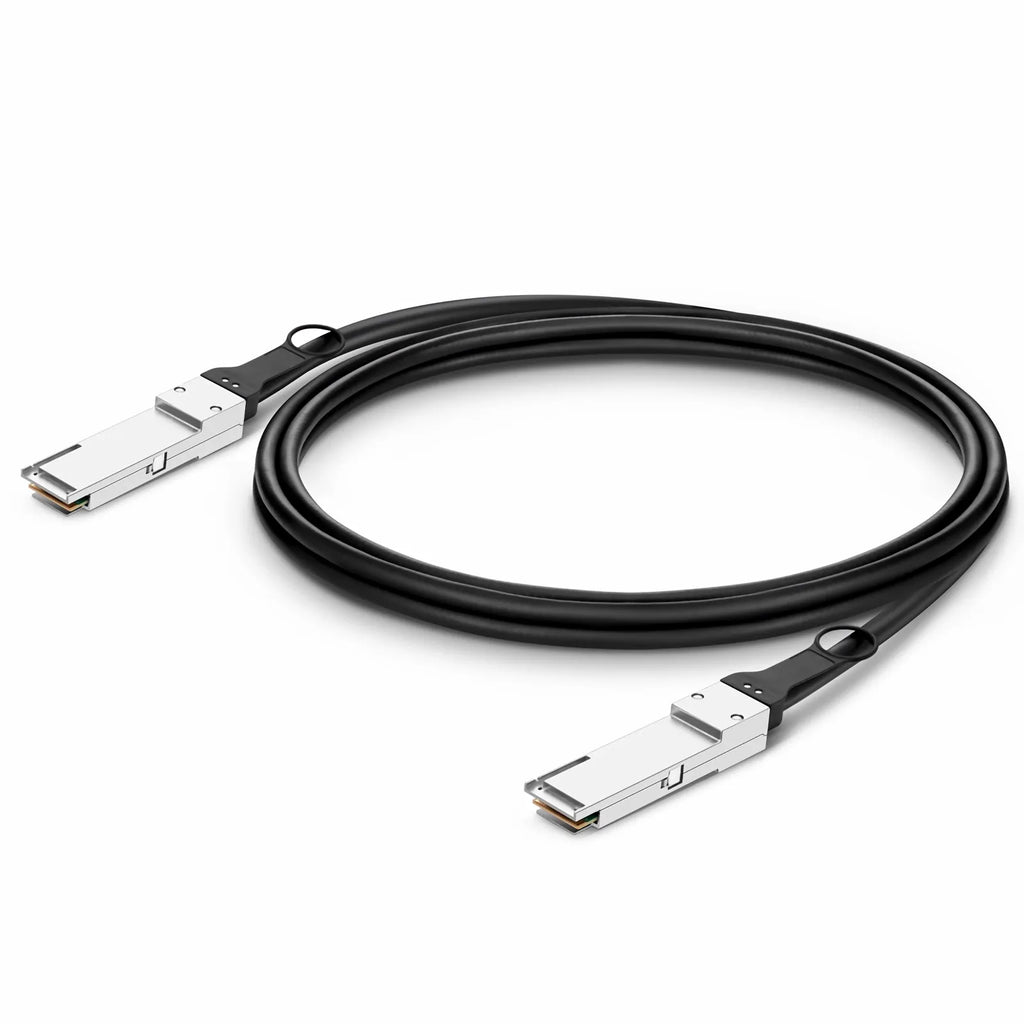

The NVIDIA Mellanox MCP1650-H00AE30 is a 0.5-meter passive direct attach copper cable for 200Gb/s InfiniBand HDR. It is well suited to very short in-rack links. The QSFP56 cable carries eight high-speed copper pairs, each running at up to 50Gb/s, using 4x 50Gb/s PAM4 modulation. Each QSFP56 port has an EEPROM the host system can read.
The cable is IBTA InfiniBand HDR compliant. Bit error rate is better than 1E-15 with Mellanox InfiniBand HDR systems. It is hot-pluggable, draws a maximum of 0.1W, and runs from a single 3.3V supply. It has an LSZH jacket and a black pull tab, and is RoHS compliant.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| MPN | MCP1650-H00AE30 |
| Product Type | Passive Direct Attach Copper (DAC) Cable |
| Protocol | InfiniBand HDR (IBTA compliant) |
| Data Rate | Up to 200Gb/s |
| Modulation | 4x 50Gb/s PAM4 |
| Connector | QSFP56 to QSFP56 (SFF-8665 compliant) |
| Length | 0.5m |
| Wire Gauge | 30AWG |
| Cable Diameter | 7.1 ± 0.35mm |
| Minimum Bend Radius | Single bend: 35.5mm; assembly/repeated bend: 71mm |
| Pull Tab | Black |
| Management Interface | SFF-8636 compliant I²C |
| Bit Error Rate | Better than 1E-15 with Mellanox InfiniBand HDR systems |
| Supply Voltage | 3.135–3.465V (3.3V typical) |
| Power Consumption | 0.1W max |
| Characteristic Impedance | 90–110Ω (100Ω typical) |
| Propagation Delay | 4.5ns/m max (informative) |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 85% |
| Jacket | LSZH (Low Smoke Zero Halogen) |
| PCB | Lead-free, halogen-free |
| Hot Pluggable | Yes |
| Compliance | RoHS |
| Warranty | 1-year limited hardware warranty |
