Description

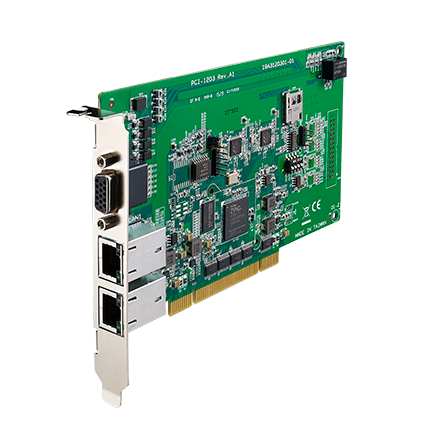

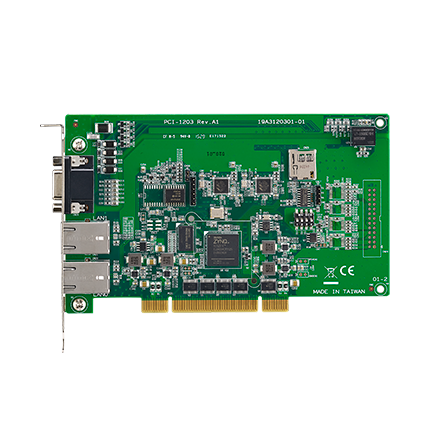

The Advantech PCI-1203-32AE is a high-performance 2-port EtherCAT Universal PCI motion control card designed for PC-based industrial automation, motion control, and high-speed I/O applications. Powered by a dual-core ARM processor, this controller executes the EtherCAT protocol stack autonomously on-board, delivering extremely short cycle times for precise real-time motion systems.
Supporting up to 32 servo axes, multiple motion groups, and integrated isolated digital I/O, the PCI-1203-32AE provides a reliable platform for demanding machine automation and multi-axis control environments. With Advantech’s Common Motion API SDK, developers can accelerate integration, configuration, and long-term application maintenance.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | PCI-1203-32AE |
| Product Type | EtherCAT Motion Control PCI Card |
| Bus Interface | Universal PCI v2.2 |
| EtherCAT Ports | 2 × RJ45 (Motion + I/O Rings) |
| Maximum Axes Supported | Up to 32 Axes |
| Motion Groups | Up to 6 Groups |
| Axes per Group | Up to 8 Axes per Group |
| Motion Cycle Time | ≤ 500 µs |
| I/O Cycle Time | ≤ 200 µs |
| Digital Input Channels | 8-CH Isolated DI |
| Digital Output Channels | 4-CH Isolated DO |
| Isolation Protection | 1,000 VDC |
| Output Voltage Range | 12–24 VDC |
| Sink Current Capacity | 300 mA per Channel |
| Processor | 650 MHz Dual-Core ARM |
| Connectors | 2 × RJ45, 1 × D-Sub 15 |
| Dimensions (L × H) | 175 × 100 mm |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 85°C |
| Certification | CE, FCC Class A |
| Power Consumption | 5 VDC @ 0.5A (Typical) |
