Description

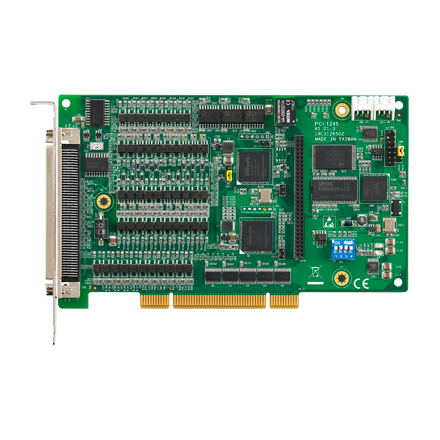

The Advantech PCI-1245-AE is a high-performance 4-axis universal PCI motion control card designed for precision stepping and pulse-type servo motor applications. Built with advanced DSP and FPGA architecture, it delivers smooth multi-axis synchronization, continuous contouring, and high-speed triggering for industrial automation systems.
With support for linear, circular, and helical interpolation, plus trajectory planning through an onboard buffer, the PCI-1245-AE is ideal for machine vision integration, CNC automation, robotics, and complex motion control environments. It also features rich digital I/O, encoder feedback support, emergency stop input, and programmable interrupts for enhanced safety and flexibility.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | PCI-1245-AE |
| Product Type | Universal PCI Motion Control Card |
| Number of Axes | 4-Axis Control |
| Motor Driver Support | Pulse-type servo and stepping motors |
| Interpolation Support | Linear, 2/3-axis circular, 3-axis helical |
| Max Output Speed | Up to 5 Mpps |
| Encoder Input Frequency | Up to 10 MHz (4xAB mode) |
| Encoder Input Type | Quadrature (A/B) or Up/Down |
| Trajectory Buffer | Up to 10K points (DSP-based) |
| CAM Function Support | E-CAM with 256 profile points |
| Motion Profiles | T-Curve and S-Curve acceleration/deceleration |
| Position Compare Triggering | Up to 100 kHz, buffer up to 100K points |
| Digital I/O | 16-ch DI, 16-ch DO |
| Safety Features | Hardware emergency input, watchdog timer |
| Bus Type | Universal PCI V2.2 (3.3V / 5V compatible) |
| Connector Type | 1 × 100-pin SCSI female connector |
| Dimensions (L × H) | 175 × 100 mm (6.9" × 3.9") |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 85°C |
| Humidity Range | 5–95% RH, non-condensing |
