Description

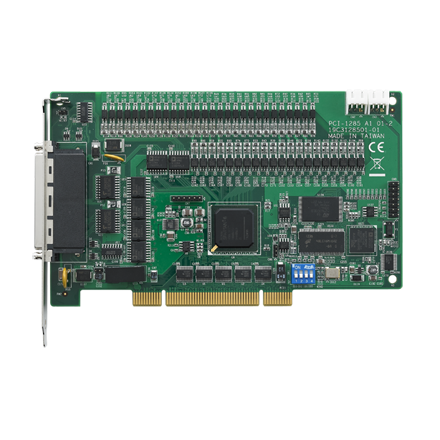

The Advantech PCI-1285E-AE is an economic, high-performance 8-axis motion control card designed for entry-level industrial automation, motion control, and machine vision applications. Built on a universal PCI V2.2 interface, it supports both stepping and pulse-type servo motor drivers, making it an ideal solution for multi-axis positioning, synchronized motion, and precision trajectory execution.
Powered by advanced DSP and FPGA architecture, the PCI-1285E-AE delivers reliable motion performance with features such as linear interpolation, T-curve and S-curve acceleration profiles, electronic gearing support, and programmable interrupt handling. With its extensive encoder input capability and flexible digital I/O channels, this motion controller is well-suited for CNC equipment, robotics, automated inspection, and packaging systems.
Advantech also provides a Common Motion API library and graphical utilities to reduce development complexity and speed up integration.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | PCI-1285E-AE |
| Product Type | Motion Control Card |
| Motion Axes Supported | 8-Axis |
| Motor Driver Support | Pulse-type servo and stepping motors |
| Interpolation Mode | 2-axis linear interpolation |
| Max Pulse Output Speed | Up to 5 Mpps |
| Encoder Input Frequency | Up to 10 MHz (4xAB mode) |
| Pulse Output Type | Pulse/Direction or CW/CCW |
| Trajectory Buffer Memory | Up to 10K commands |
| Acceleration Profiles | T-Curve and S-Curve |
| Digital Input Channels | 32-channel DI |
| Digital Output Channels | 32-channel DO |
| Emergency Input Support | Yes (Hardware emergency input) |
| Watchdog Timer | Supported |
| Isolation Protection | 2,500 VDC |
| Bus Type | Universal PCI V2.2 |
| Connectors | 2 × 100-pin Mini-SCSI female connectors |
| Dimensions (L × H) | 175 × 100 mm |
| Operating Temperature | 0°C to 60°C |
