Description

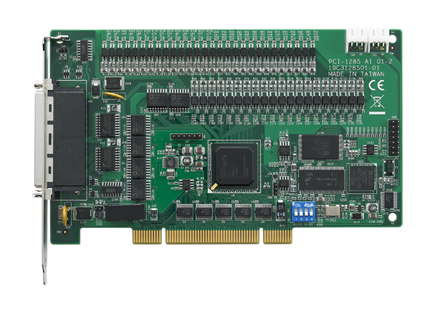

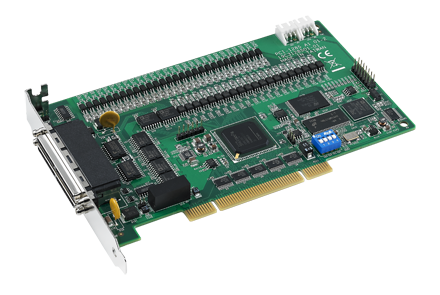

The Advantech PCI-1285V-AE is a high-performance 8-axis universal PCI motion control card designed for advanced stepping and pulse-type servo motor applications. Built with a powerful DSP and FPGA architecture, it supports multi-axis synchronization, continuous contouring, and high-speed trajectory execution for demanding automation and machine vision systems. With linear, circular, and helical interpolation, integrated trajectory buffers, and flexible digital I/O expansion, the PCI-1285V-AE is ideal for precision motion control in industrial robotics, semiconductor equipment, CNC machinery, and inspection platforms.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | PCI-1285V-AE |
| Product Type | Motion Control PCI Card |
| Motion Axes Supported | 8 Axes |
| Motor Driver Support | Pulse-type servo and stepping motors |
| Interpolation Functions | Linear, 2/3-axis circular, 3-axis helical |
| Max Output Speed | Up to 5 Mpps |
| Encoder Input Frequency | Up to 10 MHz (4xAB mode) |
| Encoder Input Type | Quadrature (A/B) or up/down |
| Trajectory Planning Buffer | Up to 10K points (DSP-based) |
| Position Compare Triggering | Up to 100 kHz, buffer up to 100K points |
| Digital I/O Capacity | 32 DI / 32 DO (switchable dedicated channels) |
| Pulse Output Modes | Pulse/Direction or CW/CCW |
| Motion Profiles | T-Curve and S-Curve acceleration/deceleration |
| Emergency & Safety Features | Hardware emergency input, watchdog timer |
| Bus Interface | Universal PCI V2.2 (3.3 V / 5 V compatible) |
| Connectors | 2 × 100-pin mini-SCSI female connectors |
| Dimensions (L × H) | 175 × 100 mm |
| Operating Temperature | 0 to 60°C |
