Description

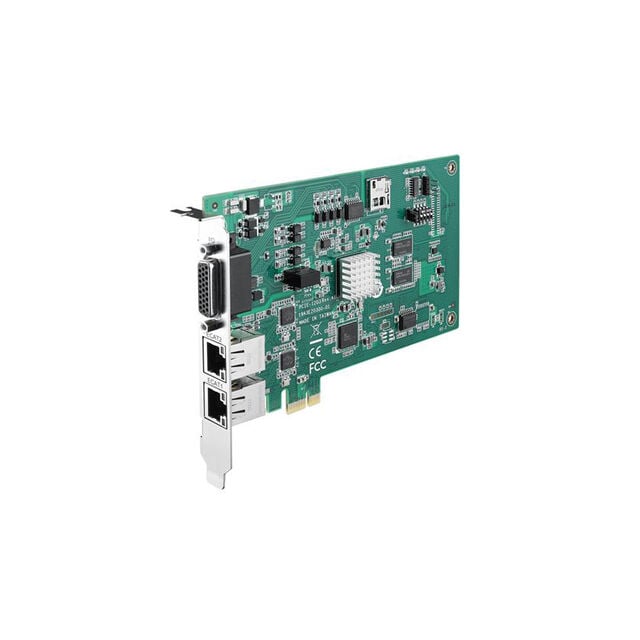

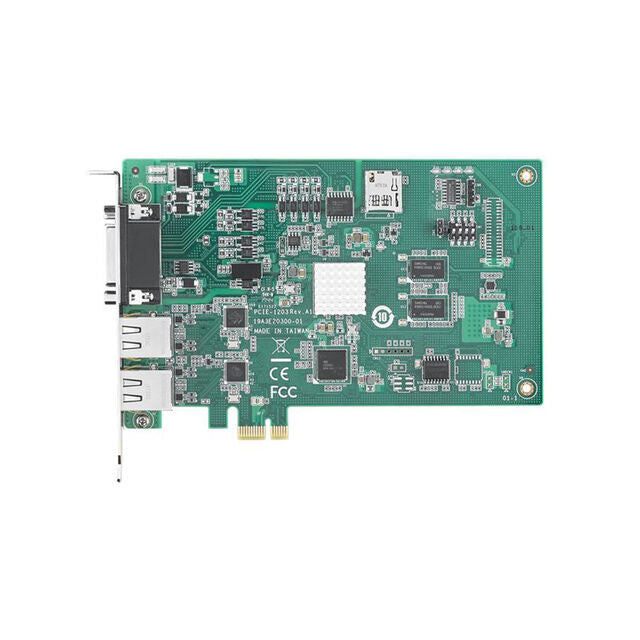

The Advantech PCIE-1203-64AE is a high-performance EtherCAT PCI Express motion control adapter designed for PC-based industrial automation systems. Featuring a dual-core ARM processor and two EtherCAT ports, it delivers ultra-fast cycle times for motion and I/O applications. This controller supports up to 32 axes of motion control and integrates seamlessly with Advantech’s Common Motion API architecture, enabling rapid development, simplified maintenance, and smooth scalability across SoftMotion platforms. Ideal for robotics, CNC machinery, and advanced automation, the PCIE-1203-64AE ensures real-time precision, diagnostics-driven reliability, and flexible high-speed EtherCAT networking.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | PCIE-1203-64AE |
| Product Type | EtherCAT PCI Express Motion Control Card |
| Bus Interface | PCI Express |
| Processor | 667 MHz Dual-Core ARM |
| EtherCAT Ports | 2 × RJ45 |
| Number of EtherCAT Rings | 2 (Motion ×1, I/O ×1) |
| Motion Cycle Time | Up to 500 µs |
| I/O Cycle Time | Up to 200 µs |
| Maximum Axes Supported | Up to 32 Axes |
| Motion SubDevices Supported | Up to 32 Servo Drives |
| Digital I/O Capacity | 1024-CH DI / 1024-CH DO |
| Analog I/O Capacity | 128-CH AI / 128-CH AO |
| Interpolation Support | Linear, Circular, Path Table |
| Advanced Functions | Compare, Latch, Compare Delay DO Trigger |
| Power Consumption | 5 VDC @ 0.5 A Typical |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 85°C |
| Humidity | 5 to 95% RH, Non-condensing |
| Dimensions (L × H) | 175 × 100 mm |
| Certifications | CE, FCC Class A |
