Description

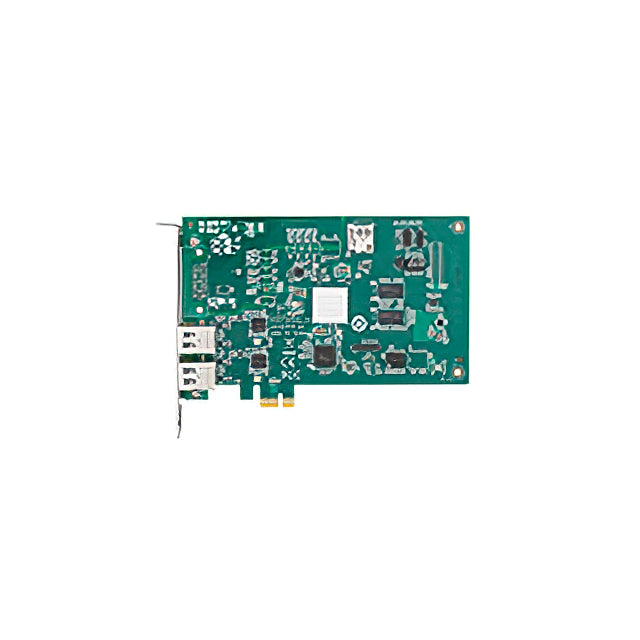

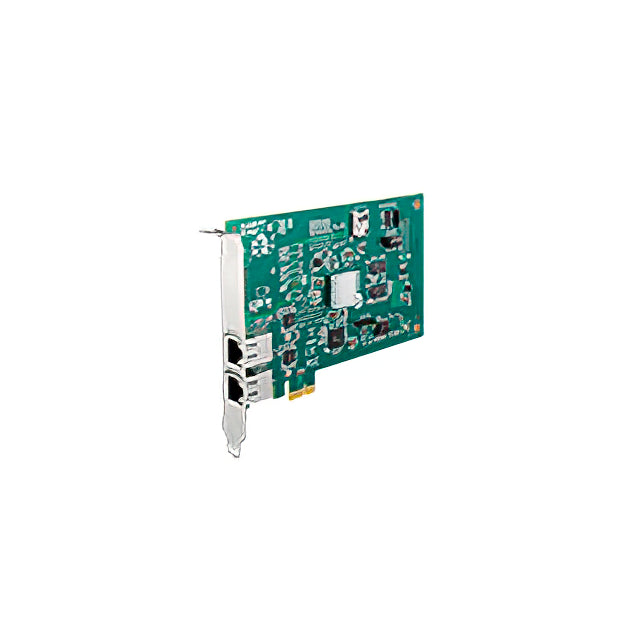

The Advantech PCIE-1203L-64AE is a high-performance 2-port EtherCAT PCI Express motion control and industrial I/O card designed for demanding automation applications. With an onboard dual-core ARM processor running the EtherCAT protocol stack autonomously, it delivers extremely short communication cycle times for precise motion control and high-speed I/O.
Supporting advanced motion functions such as point-to-point moves, 2-axis linear interpolation, and programmable acceleration/deceleration, the PCIE-1203L-64AE is ideal for machine builders and industrial automation engineers. Built on Advantech’s Common Motion API architecture, it also ensures rapid development, easier maintenance, and seamless upgrades across SoftMotion platforms.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | PCIE-1203L-64AE |
| Product Type | EtherCAT PCI Express Motion Control Card |
| Network Ports | 2 × EtherCAT (RJ45) |
| Supported Axes | Up to 32 axes motion control |
| Motion Functions | Point-to-point move, 2-axis linear interpolation |
| Cycle Time (Motion) | Up to 500 µs |
| Cycle Time (I/O) | Up to 200 µs |
| Communication Capacity | Up to 32 servo drives (Motion) |
| I/O Expansion Support | 1024 DI / 1024 DO, 128 AI / 128 AO |
| Processor | 667 MHz Dual-Core ARM |
| Bus Interface | PCI Express |
| Power Consumption | 5 VDC @ 0.5A (typical) |
| Certifications | CE, FCC Class A |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 85°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | 175 × 100 mm (6.9 × 3.9 in) |
