Description

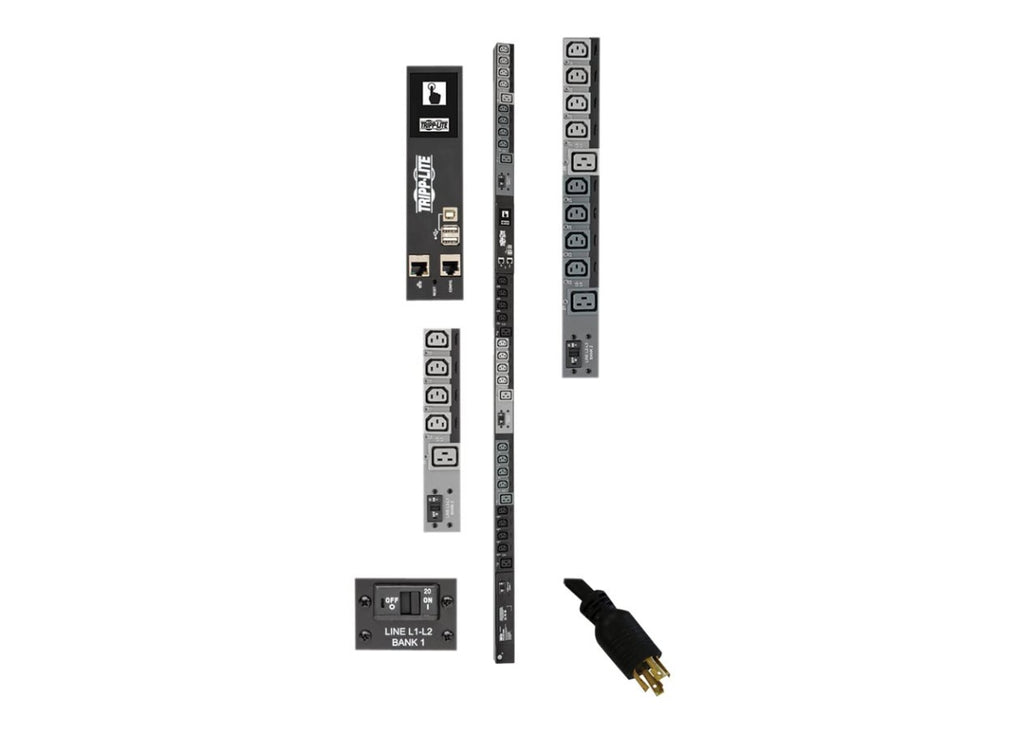

The Eaton Tripp Lite PDU3EVSR10L2130 is a high-performance 10 kW 200–240 V 3-phase switched rack PDU designed for advanced power distribution, monitoring, and control in data centers and enterprise network environments. Featuring 30 switched outlets (24 × C13, 6 × C19) and a NEMA L21-30P input plug with a 3 m power cord, it provides exceptional flexibility for managing connected equipment.
The built-in Gigabit LX Platform interface (WEBCARDLX) with HTML5-based PowerAlert Device Manager (PADM20) allows secure, Java-free remote management via HTTPS, SNMP, SSH, or Telnet. Users can control, reboot, or lock out individual outlets remotely, enabling proactive load management and reduced downtime.
A vibrant color touchscreen LCD delivers ±1 % billing-grade accuracy for monitoring per-phase and per-outlet current, wattage, and voltage. The unit also generates a QR code for quick mobile access and integrates with optional EnviroSense2 environmental sensors. Constructed from durable metal, the 0U vertical-mount PDU fits standard EIA 19-inch racks and is TAA compliant, making it ideal for government or enterprise deployments requiring precise, network-grade power management.
| Category | Specification |
|---|---|
| Model Number | PDU3EVSR10L2130 |
| Power Capacity | 10 kW (240 V), 9.6 kW (230 V), 9.1 kW (220 V), 8.6 kW (208 V), 8.3 kW (200 V) |
| Input Type | NEMA L21-30P, 3-Phase, 200–240 V AC |
| Input Cord Length | 10 ft (3.05 m) |
| Maximum Input Current | 24 A (agency-derated continuous) |
| Output Outlets | 30 total (24 × C13, 6 × C19) |
| Output Voltage | 200–240 V AC |
| Overload Protection | Three × 20 A circuit breakers (one per load bank) |
| Monitoring Accuracy | ±1 % (billing-grade for Amps/Volts/Watts) |
| Network Interface | Pre-installed WEBCARDLX (Gigabit Ethernet) with PADM20 |
| Supported Protocols | IPv4/IPv6, HTTP/HTTPS, SNMP (v1/v2c/v3), SSH, Telnet, FTP, DHCP, NTP |
| Display | Color touchscreen LCD with QR code mobile access |
| Communications Ports | 1 × RJ-45 (network), 1 × RJ-45 (config), 2 × USB-A (for EnviroSense2 modules), 1 × USB-B (config console) |
| Material | Heavy-duty metal enclosure |

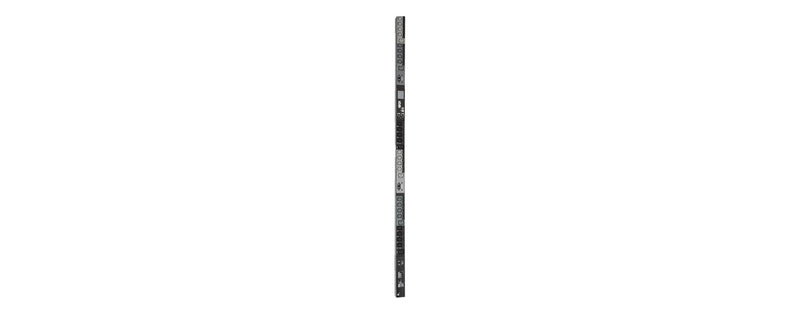

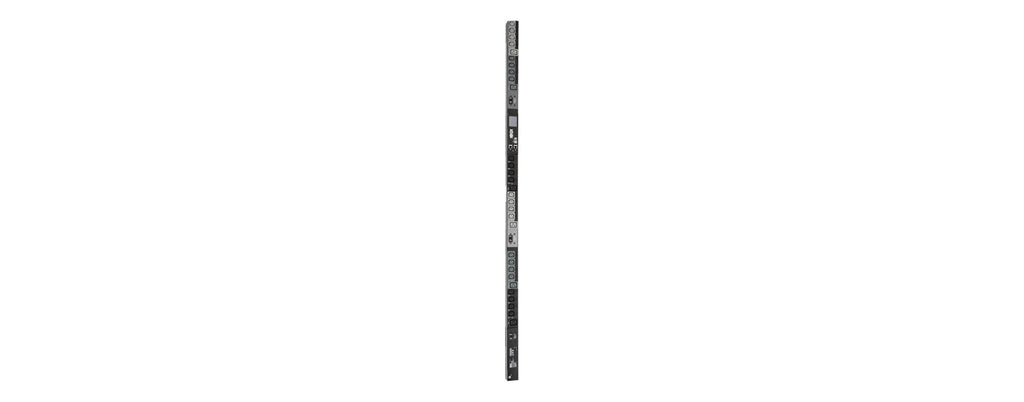

| Mounting Type | 0U vertical rackmount (with brackets and tool-less buttons) |
| Rack Height | 0U (1.8 m tall) |
| Dimensions (H × W × D) | 70 × 2.17 × 2.86 in (177.8 × 5.5 × 7.3 cm) |
| Weight | 20.01 lb (9.08 kg) |
| Operating Temperature | 0 – 50 °C (32 – 122 °F) |
| Relative Humidity | 5 – 95 % non-condensing |
| Compliance | UL 60950-1, CSA, NOM, FCC Part 15 Class A, RoHS, TAA |
| Warranty | 2-Year Limited Warranty |
