Description

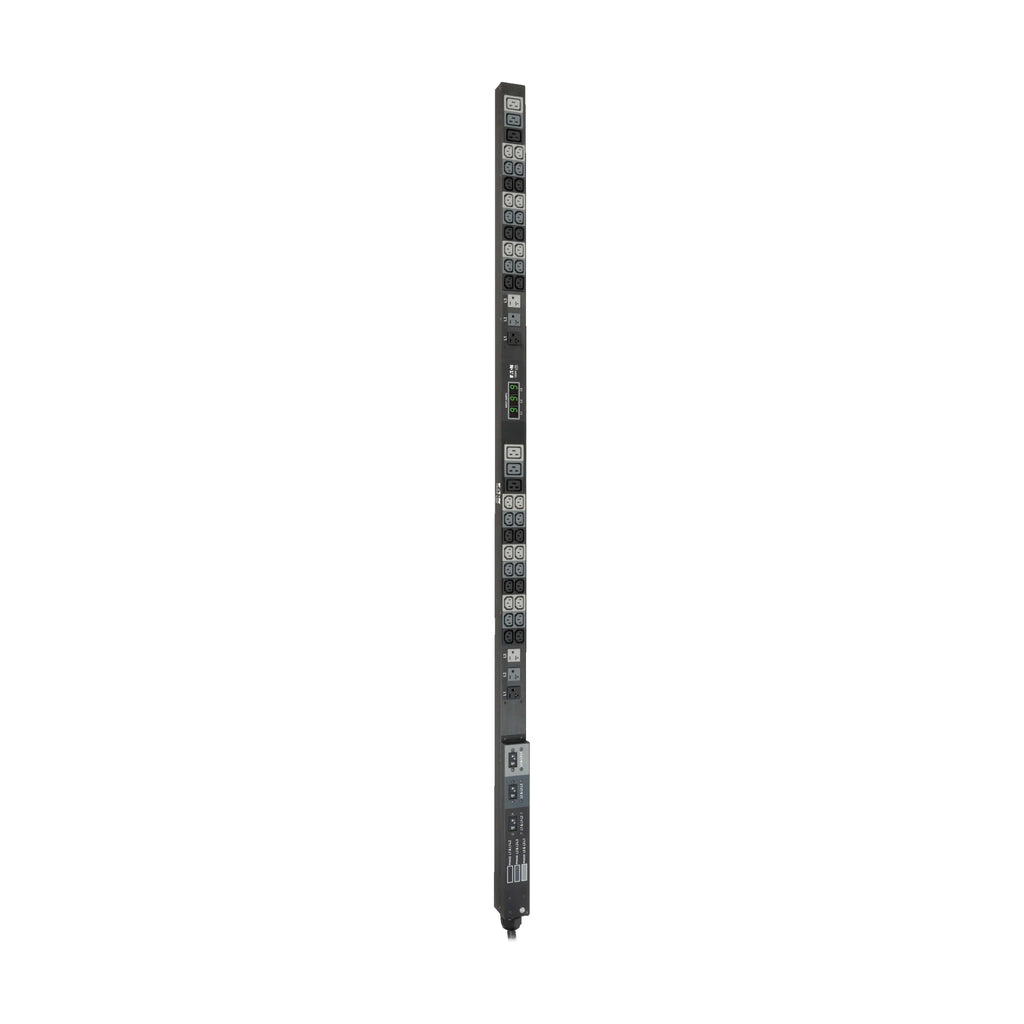

The Eaton Tripp Lite PDU3MV6L2130 is a high-capacity, three-phase metered rack power distribution unit designed for enterprise data centers, network closets, and mission-critical IT environments. Delivering up to 8.6kW of 208/120V power, this 0U vertical PDU provides reliable, space-efficient power distribution while enabling real-time current monitoring across all three phases.
Built-in digital current meters display per-phase load levels to help balance power consumption, prevent overloads, and improve capacity planning. With a versatile outlet mix—including C13, C19, and NEMA 5-15/20R receptacles—this PDU supports a wide range of servers, networking equipment, and peripherals. Toolless vertical mounting and included cord retention brackets ensure fast deployment and secure connections in both 2-post and 4-post racks.
| Specification | Details |
|---|---|
| Model Number | PDU3MV6L2130 |
| PDU Type | Local Metered Rack PDU |
| Power Capacity | 8.6 kW |
| Input Voltage | 208/120V |
| Input Phase | 3-Phase |

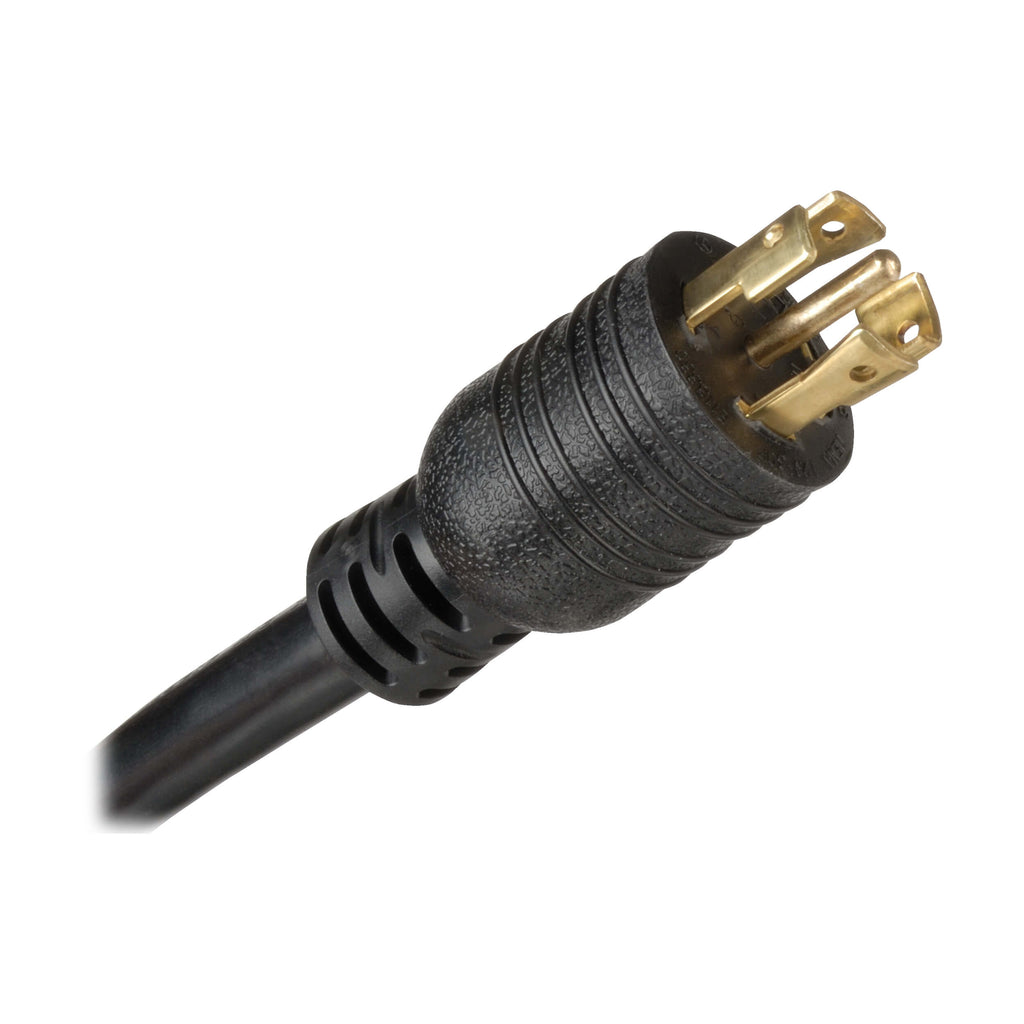

| Input Plug | NEMA L21-30P |
| Input Cord Length | 6 ft (1.83 m) |
| Maximum Input Current | 24A (continuous) |

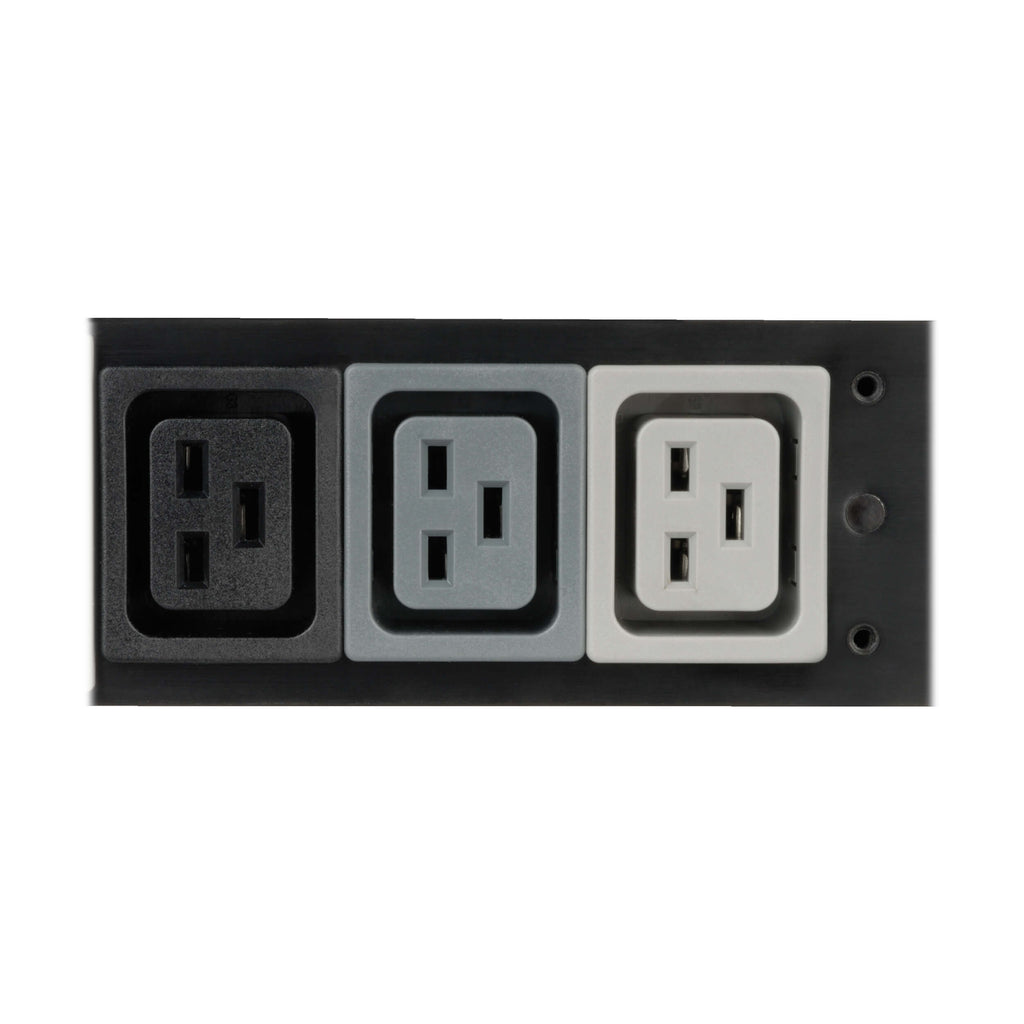

| Outlet Configuration | 36 × C13 (208V), 6 × C19 (208V), 6 × NEMA 5-15/20R (120V) |
| Total Outlets | 48 |
| Overload Protection | 3 × 20A double-pole circuit breakers |
| Monitoring | Built-in digital meters (per-phase current) |
| Form Factor | Vertical, 0U |
| Rack Compatibility | 2-post and 4-post racks |
| Mounting | Toolless button-mount and bracket mounting |
| Construction | Metal housing |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Compliance | TAA compliant |
| Warranty | 2-Year Limited Warranty |
