Description

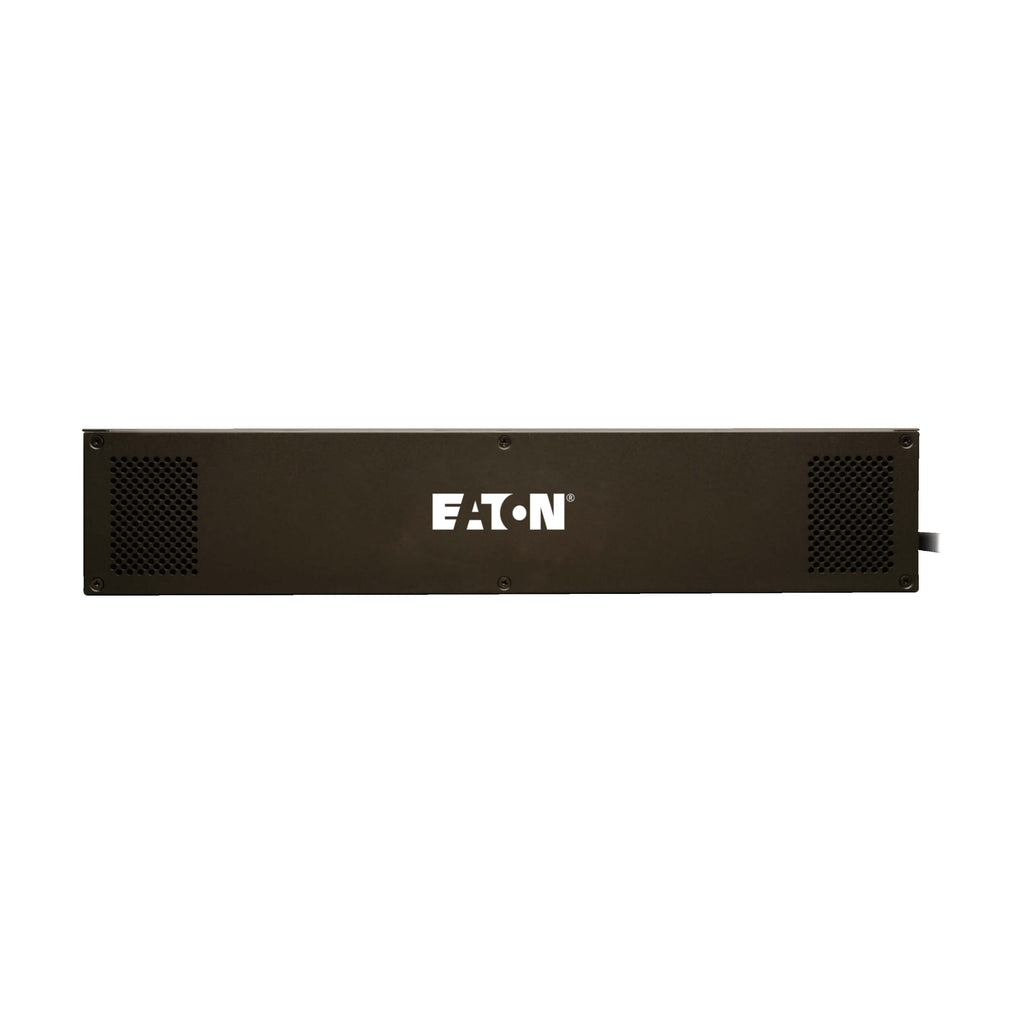

The Eaton Tripp Lite PDUMNH30HV is a high-capacity, single-phase monitored rack power distribution unit designed for data centers, network closets, and mission-critical IT environments. Delivering up to 5.5kW at 208/230V, this 2U horizontal PDU provides real-time load visibility and reliable power distribution for servers, networking gear, and edge infrastructure.

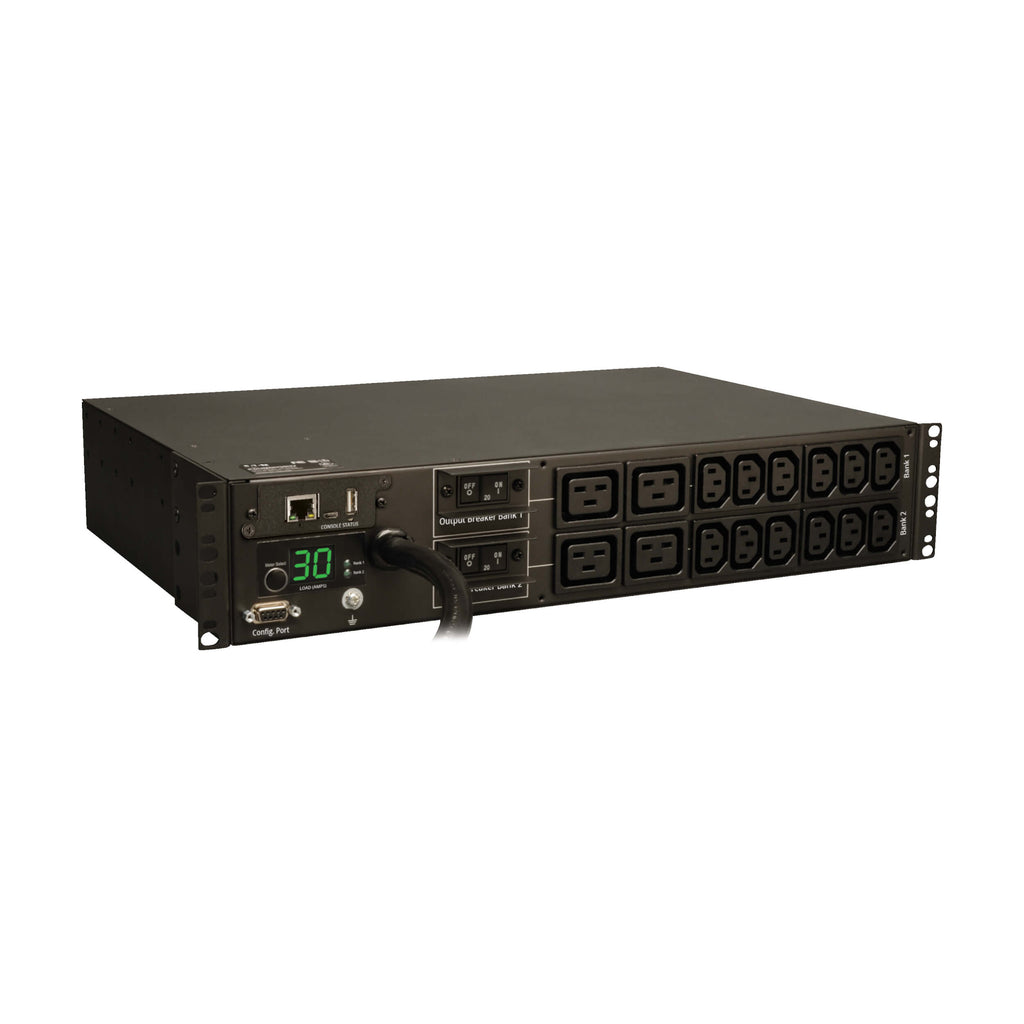

Equipped with a built-in network interface, the PDUMNH30HV enables remote monitoring of power consumption via web, SNMP, or management platforms, helping IT teams optimize load balancing and prevent overload conditions. A front-panel digital display shows current draw by outlet bank or total load for quick at-rack verification.

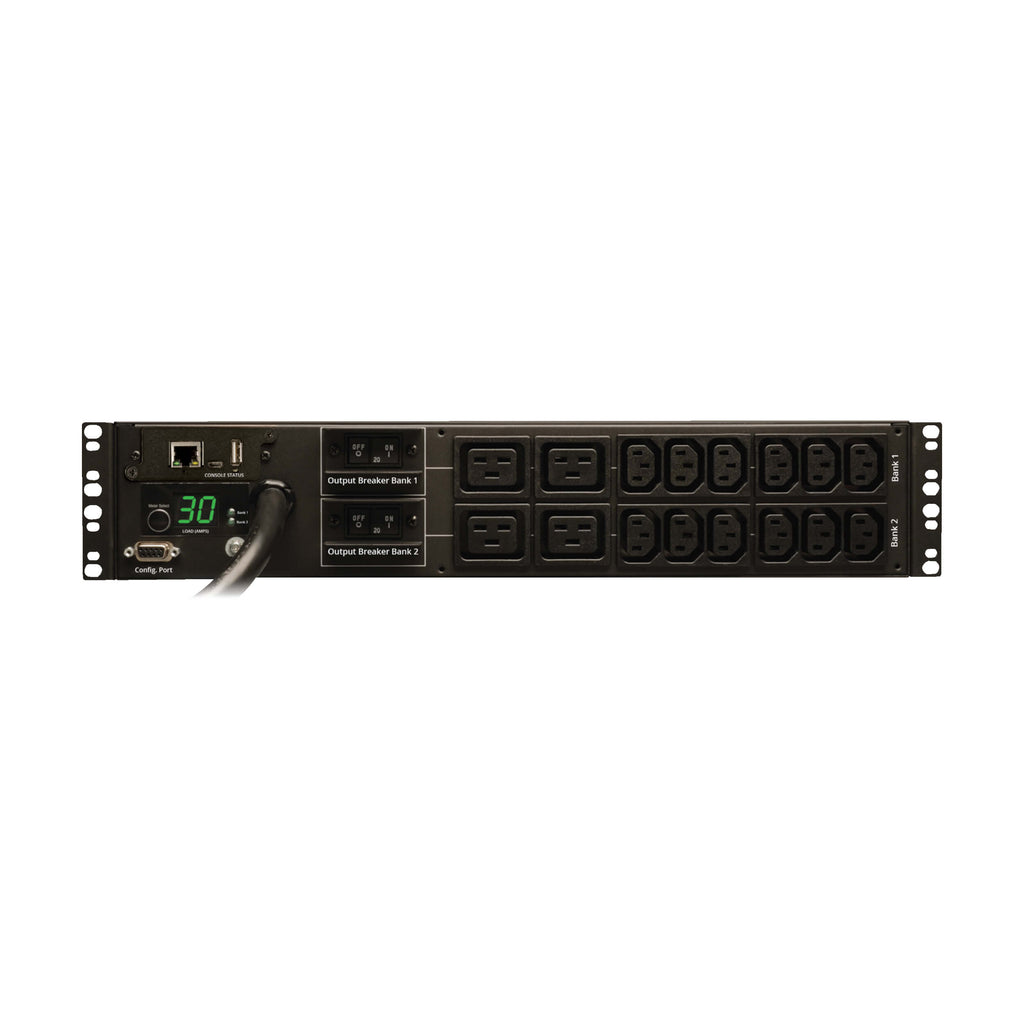

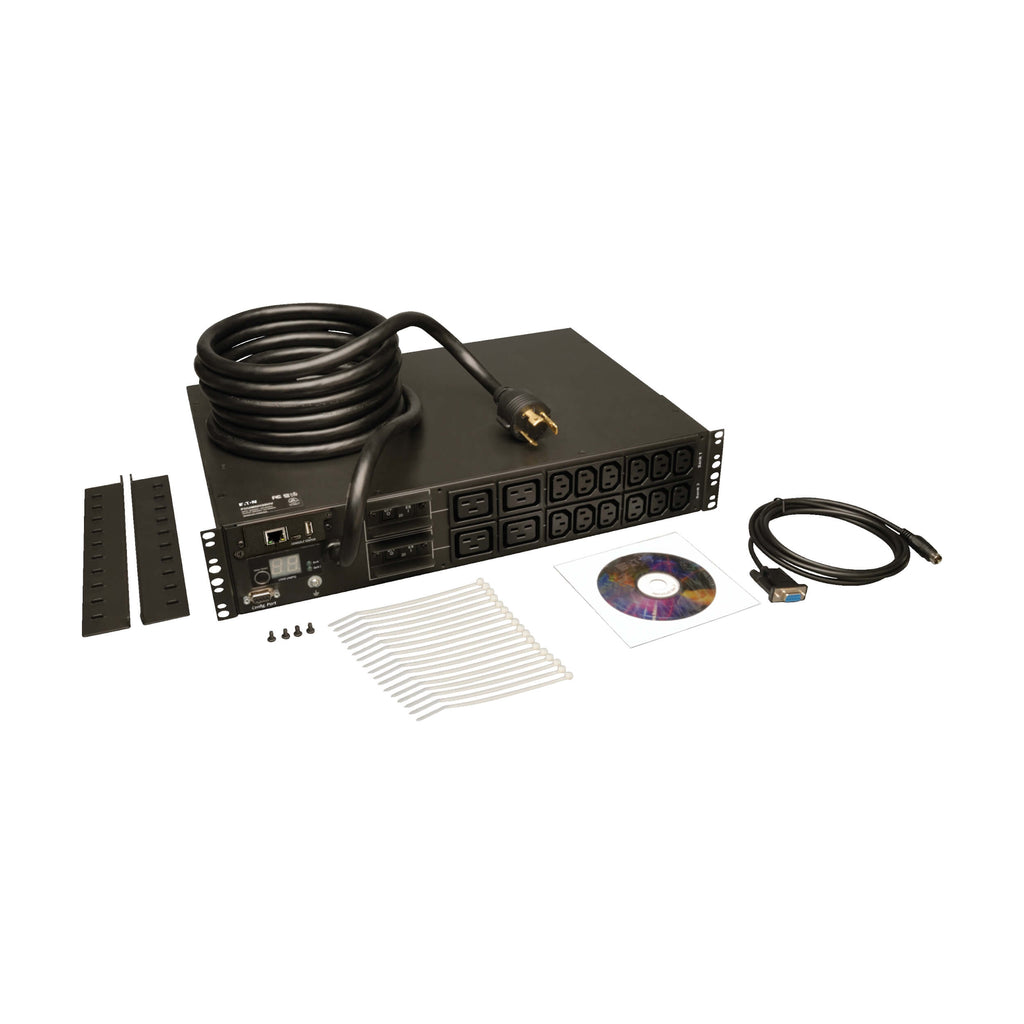

With 16 total outlets (12 C13 and 4 C19), dual internal circuit breakers, and a locking NEMA L6-30P input plug, this PDU supports high-density equipment while maintaining compliance and uptime. Reversible mounting ears and included retention brackets ensure flexible installation in 2-post or 4-post racks.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | PDUMNH30HV |
| PDU Type | Monitored |
| Phase | Single-Phase |
| Input Voltage | 208 / 230V |
| Max Power Capacity | 5.5kW @ 230V / 5.0kW @ 208V |
| Max Continuous Current | 24A |
| Input Plug | NEMA L6-30P |
| Input Cord Length | 12 ft (3.66 m) |
| Form Factor | Horizontal Rackmount |
| Rack Height | 2U |
| Outlet Count | 16 Total |
| Outlet Types | 12 × C13, 4 × C19 |
| Circuit Protection | Dual 20A Internal Breakers |
| Monitoring | Network & Local LCD Current Meter |
| Display | Digital Amps Display (Per Bank & Total) |
| Network Interface | Ethernet (RJ45) |
| Mounting | 2-Post & 4-Post Rack Compatible |
| Construction | Metal Housing |
| Compliance | TAA Compliant |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Warranty | 2-Year Limited Warranty |
