Description

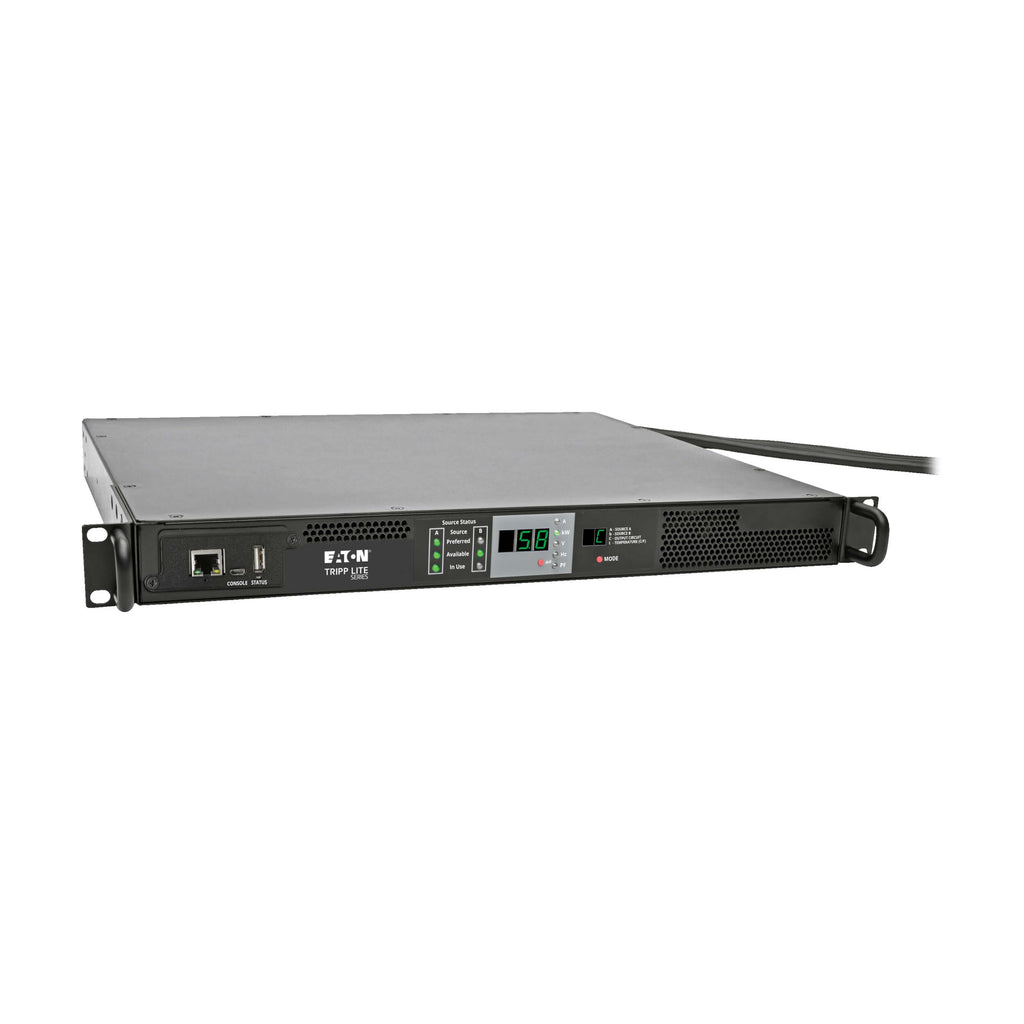

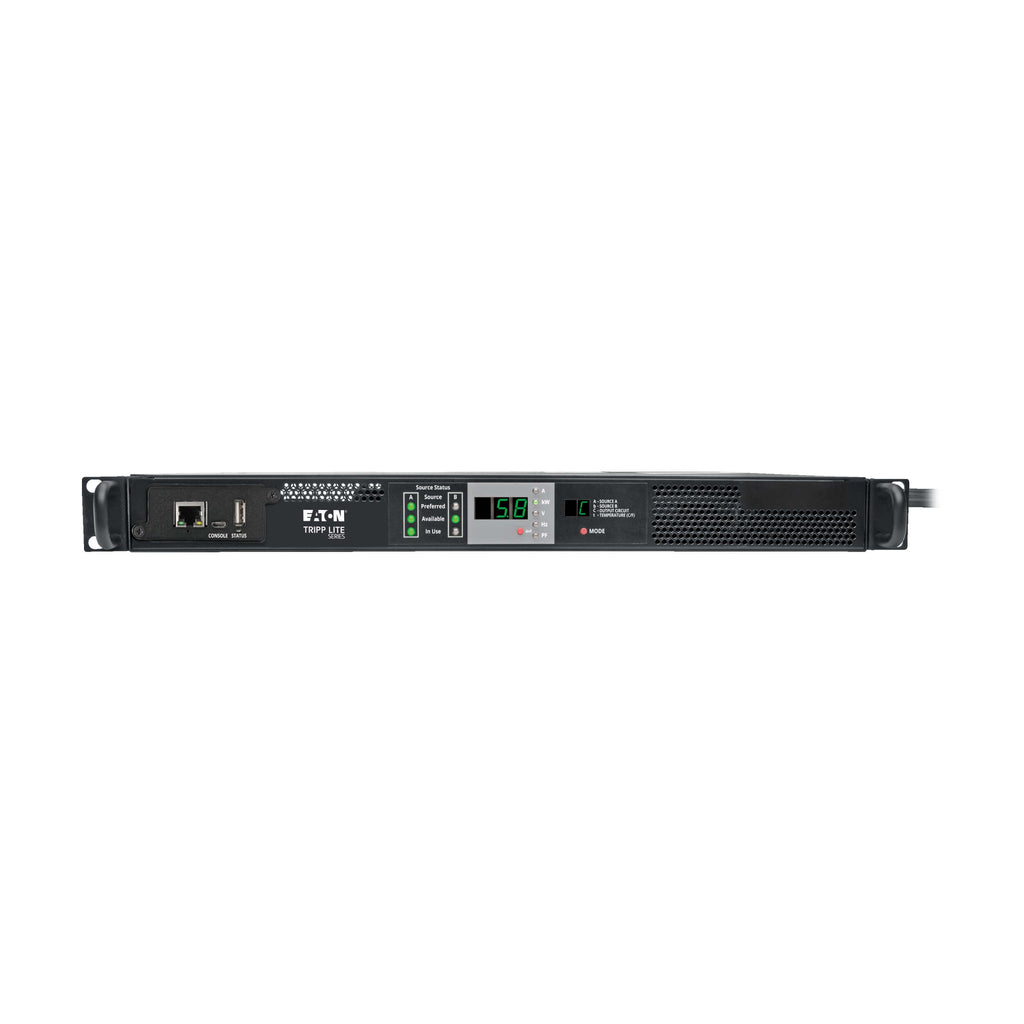

The Eaton Tripp Lite PDUMNH30HVAT is a 5.8kW single-phase monitored automatic transfer switch (ATS) PDU designed to provide redundant power and real-time monitoring for network devices with non-redundant power supplies. Featuring two 200–240V 30A L6-30P input cords and one L6-30R outlet, this 1U rackmount PDU ensures uninterrupted operation by dynamically transferring to a secondary power source within 1–5 milliseconds if the primary source fails or becomes unstable.
Its integrated LX Platform network interface (with pre-installed WEBCARDLX and PADM20 firmware) enables remote power monitoring via a Java-free HTML5 web interface, SNMP, SSH, or Telnet. A multifunction digital LED display reports vital data such as amperage, voltage, kilowatts, frequency, and power factor with ±1% accuracy. Ideal for data centers, edge environments, and high-availability IT infrastructures, this PDU combines reliability, visibility, and control to minimize downtime and maximize uptime.
| Category | Details |
|---|---|
| Model Number | PDUMNH30HVAT |
| Brand | Eaton Tripp Lite |
| PDU Type | Monitored; Auto-Transfer Switch |
| Power Capacity | 5.8kW (240V) / 24A (Agency de-rated continuous) |
| Input Voltage | 200 / 208 / 220 / 230 / 240V |
| Input Phase | Single-Phase |

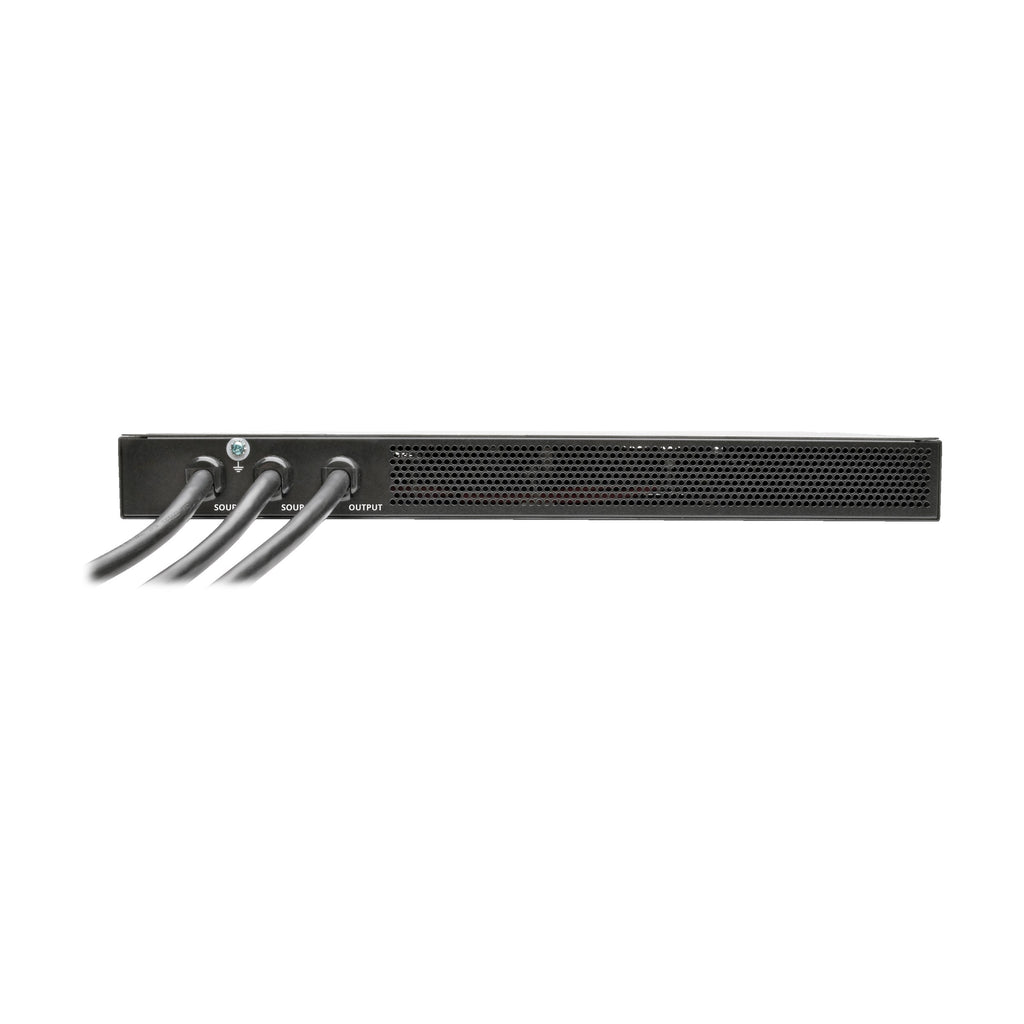

| Input Plug Type | (2) NEMA L6-30P |
| Input Cord Length | 10 ft (3.05 m), dual cords for primary and secondary sources |
| Output Receptacles | (1) NEMA L6-30R |
| Output Voltage | 200–240V |
| Transfer Time | 1–5 milliseconds (solid-state TRIAC switching) |
| Network Interface | Pre-installed WEBCARDLX (LX Platform with PADM20 firmware) |
| Network Protocols Supported | HTTP, HTTPS, SNMPv1/v2/v3, Telnet, SSH, FTP, DHCP, NTP |

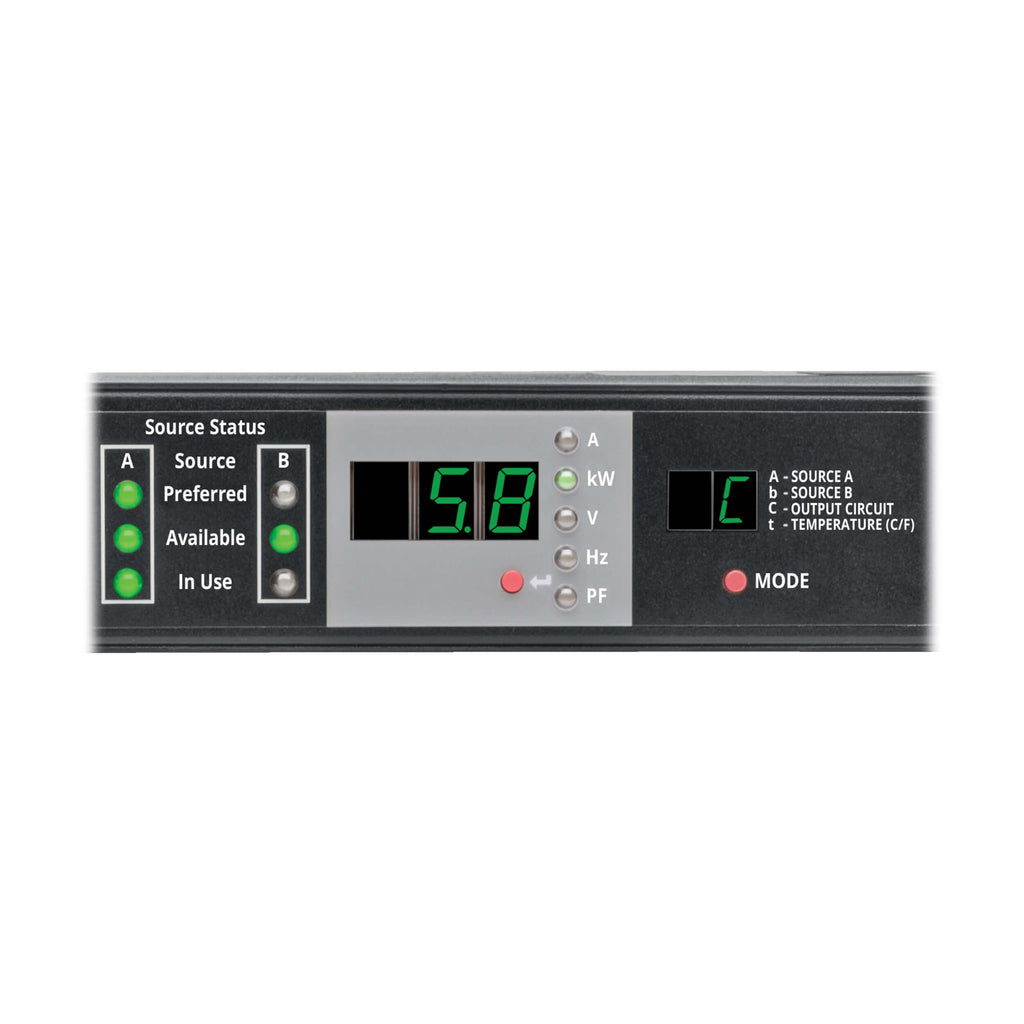

| Monitoring Display | Digital LED for amps, volts, kW, Hz, PF (±1% accuracy) |
| Mounting | 1U horizontal rackmount (EIA-standard 19”) |
| Construction | Metal |
| Dimensions (H x W x D) | 1.72 × 16.93 × 14.00 in (4.4 × 43 × 35.6 cm) |
| Unit Weight | 15.37 lb (6.97 kg) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Humidity | 5% to 95% (non-condensing) |
| Certifications | UL 60950-1, NOM (Mexico) |
| Compliance | RoHS, FCC Part 15 Class A (USA) |
| Warranty | 2-year limited warranty |
