Description

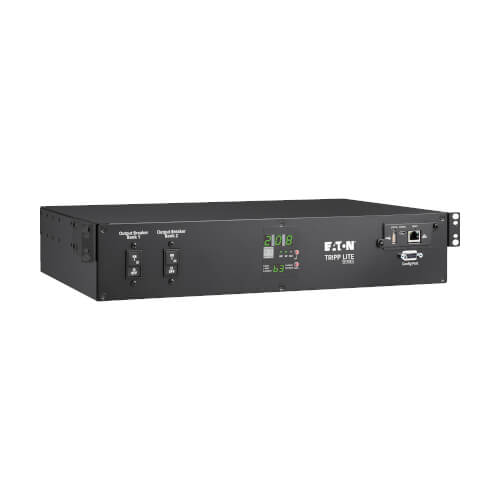

The Eaton PDUMNH30HVAT2 is a high-performance 5.8kW automatic transfer switch (ATS) and monitored rack PDU designed for mission-critical environments requiring continuous uptime and remote power monitoring. With dual NEMA L6-30P inputs and dynamic solid-state transfer switching, it ensures seamless power transition between primary and secondary sources within 1–5 milliseconds, maintaining uninterrupted operation for connected equipment.
Ideal for data centers, server racks, and IT network environments, this 2U rack-mount PDU delivers real-time remote monitoring via its HTML5-based LX Platform network interface with PowerAlert Device Manager. Users can easily monitor load, voltage, and frequency metrics, preventing overloads and optimizing load balance.
The PDUMNH30HVAT2 features 16 C13, 2 C19, and 1 L6-30R outlets, plus two 10-foot input cords for flexible deployment. Its robust metal housing, digital ammeter, and TAA compliance make it a dependable and secure solution for enterprise power management.
| Category | Details |
|---|---|
| Brand | Eaton |
| Model | PDUMNH30HVAT2 |
| Type | Automatic Transfer Switch (ATS) / Monitored Rack PDU |
| Power Capacity | 5.8 kW (208/240 V); 4.8 kW (200 V) |
| Input Voltage | 200 V / 208 V / 240 V |
| Input Phase | Single-Phase |
| Input Plug Type | (2) NEMA L6-30P |
| Input Cord Length | 10 ft (3.05 m), dual cords for primary and secondary sources |
| Output Receptacles | (16) C13, (2) C19, (1) L6-30R |
| Output Nominal Voltage | 200 V / 208 V / 240 V |
| Frequency Compatibility | 50 / 60 Hz |
| Maximum Input Amps | 30 A (agency-de-rated to 24 A continuous) |
| Output Protection | Two 20 A circuit breakers – banked outlet control |
| Switching Type | Solid-state ATS (1–5 ms transfer time) |
| Load Monitoring | Digital ammeter with 1% accuracy; real-time current, kW and voltage display |
| Network Interface | Built-in LX Platform (HTML5 Webcard LX); RJ-45 network port + Micro-USB config port |
| Remote Management | SNMP, Telnet, SSH, HTTP/HTTPS via PowerAlert Device Manager (PADM20) |
| Indicators / Display | LCD for amps/kW/voltage/IP; LED status for input source |
| Form Factor | 2U rackmount / wall-mount metal housing |
| Dimensions (H × W × D) | 3.5 × 17.5 × 12.5 in (8.8 × 44.4 × 31.7 cm) |
| Weight | 13.7 lb (6.21 kg) |
| Operating Temp. Range | 32 °– 104 °F (0 °– 40 °C) |
| Humidity | 5 % – 95 % non-condensing |
| Compliance | UL 60950-1, RoHS, FCC Part 15 Class A, TAA Compliant |
| Certifications | NOM (Mexico) |
| Warranty | 2-year limited warranty |
| Included Accessories | USB config cable, rack hardware, plug-retention sleeves, cable ties, owner’s manual |
