Description

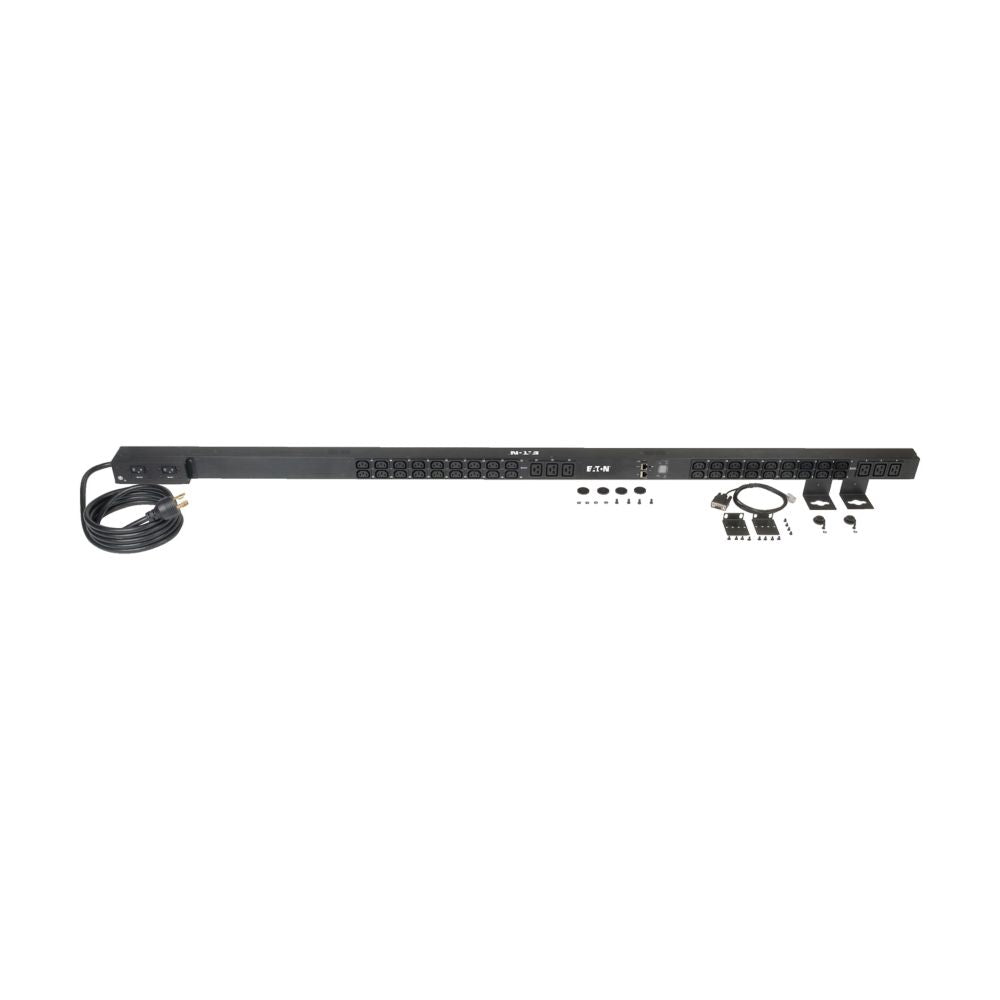

The Eaton Tripp Lite PDUMNV30HV2LX is a high-capacity, single-phase monitored rack PDU designed for data centers, network closets, and industrial IT environments. Delivering up to 5.5kW at 208/230V, this 0U vertical PDU provides reliable power distribution with real-time load monitoring to help prevent overloads and unplanned downtime.

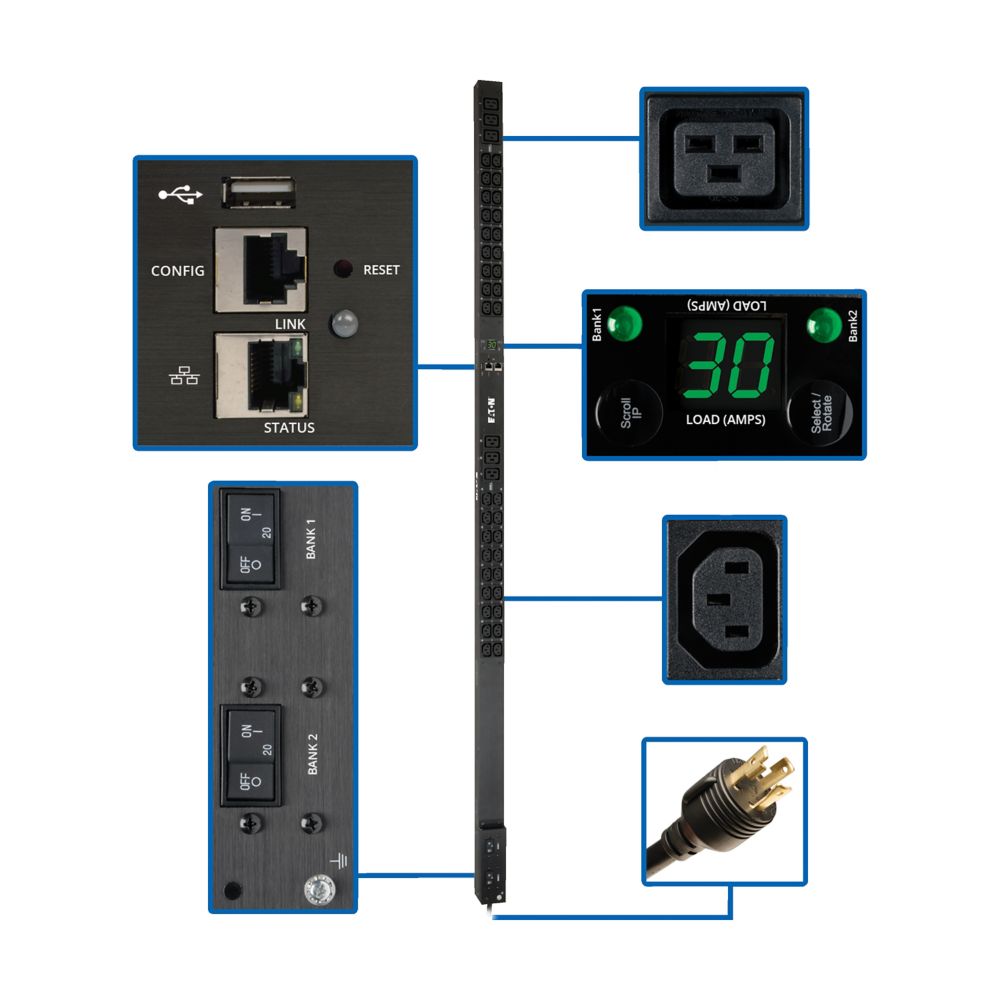

Equipped with 42 total outlets (36 C13 and 6 C19) across two independently breakered load banks, the PDUMNV30HV2LX supports dense equipment deployments. A built-in LX Platform network interface enables Java-free remote monitoring via secure web browser, SNMP, SSH, or Telnet, while a front-panel digital ammeter provides immediate visibility into current draw at the rack.
Designed for efficient installation, this vertical PDU mounts in zero rack units using included toolless buttons or brackets and features a 10-foot input cord with a NEMA L6-30P plug. Plug-lock insert sleeves help prevent accidental cable disconnections, making this PDU ideal for mission-critical infrastructure requiring secure, monitored power distribution.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | PDUMNV30HV2LX |
| PDU Type | Monitored Rack PDU |
| Input Phase | Single-Phase |
| Input Voltage | 208 / 230V |
| Output Capacity | 5.5kW (230V) / 5.0kW (208V) |
| Maximum Input Current | 30A (24A continuous, derated) |
| Plug Type | NEMA L6-30P |
| Input Cord Length | 10 ft (3.05 m) |
| Outlet Configuration | 36 × C13, 6 × C19 |
| Load Banks | 2 × 20A independently breakered banks |
| Form Factor | Vertical 0U |
| Rack Compatibility | EIA-standard 19 in racks |
| Monitoring | Digital ammeter, remote network monitoring |
| Network Interface | LX Platform (HTML5, Java-free) |
| Supported Protocols | SNMP, SSH, Telnet, HTTP/HTTPS, SMTP |
| Mounting | Toolless buttons and rack brackets included |
| Construction | Metal |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Compliance | TAA Compliant |
| Warranty | 2-Year Limited Warranty |
