Description

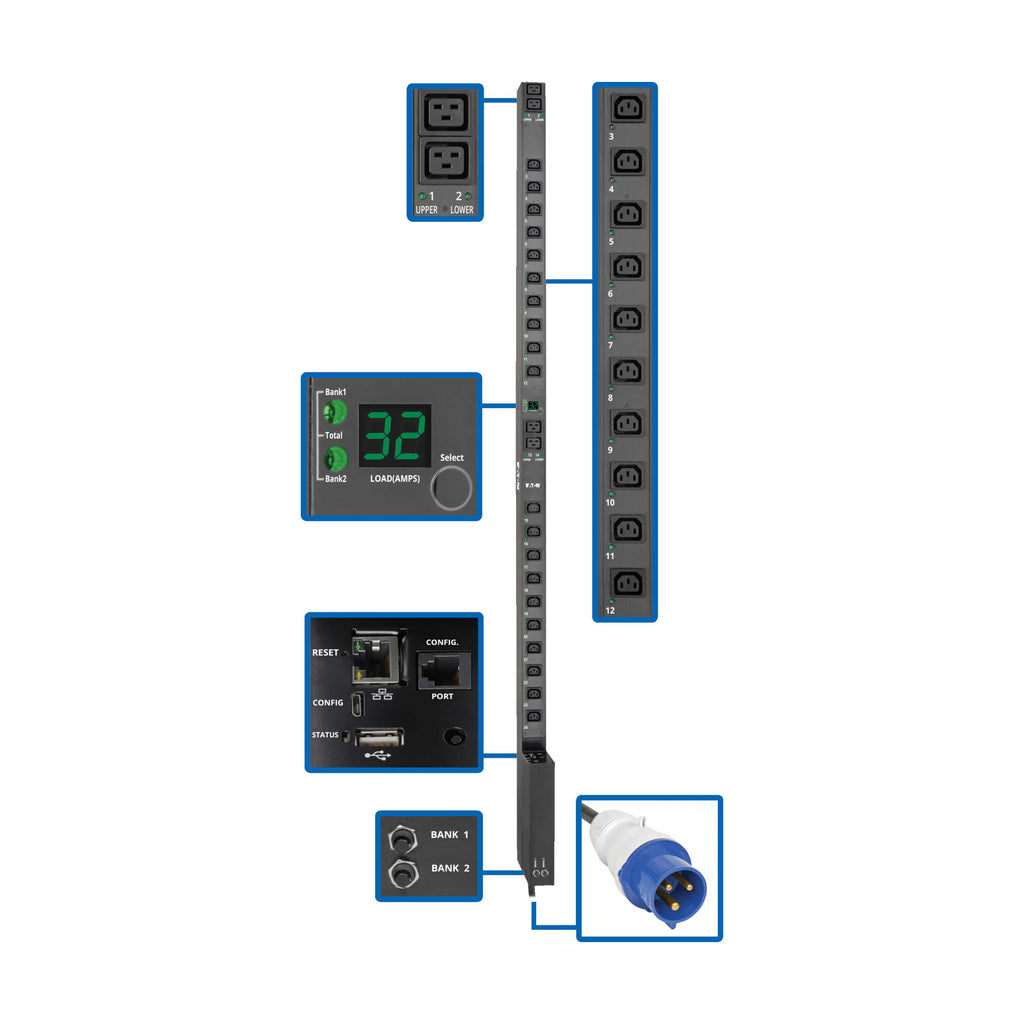

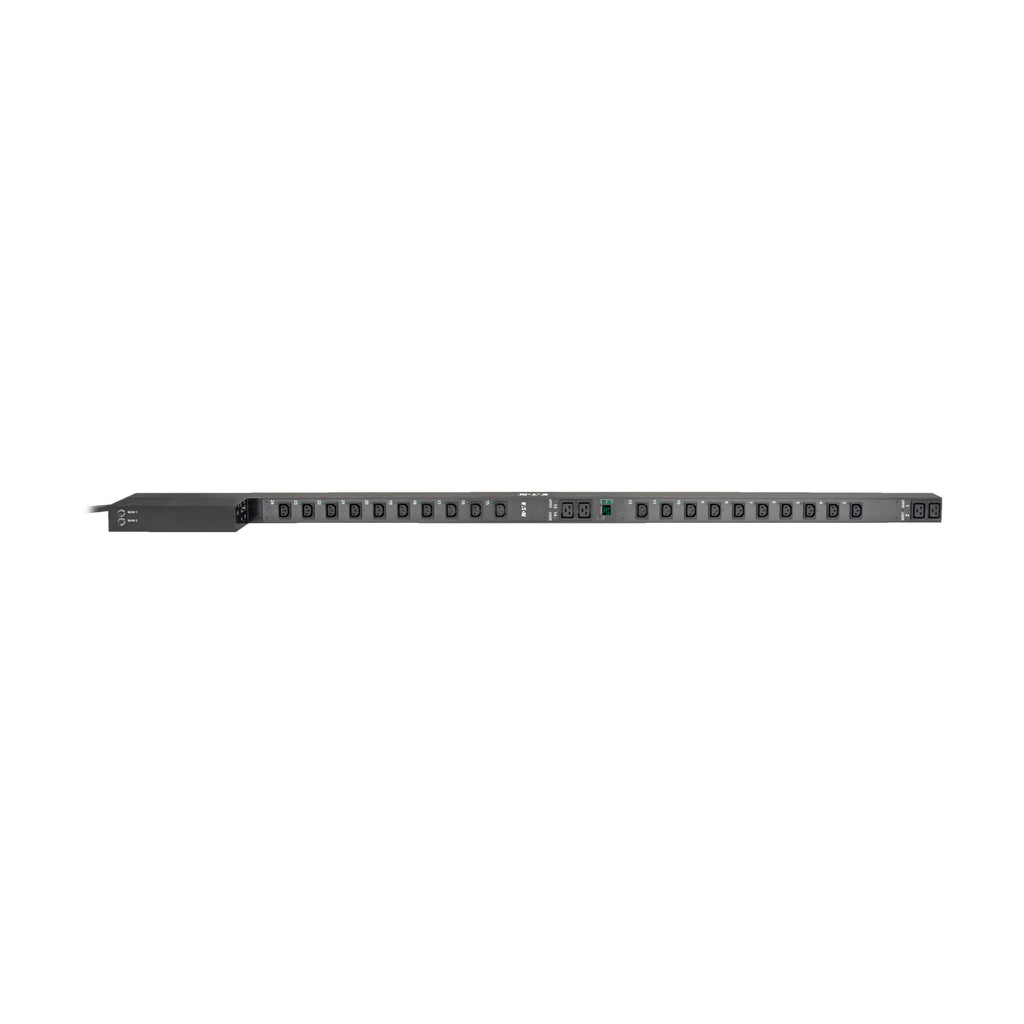

The Eaton Tripp Lite PDUMV32HVNETLX is a high-capacity, network-managed 0U switched PDU designed for enterprise data centers, server rooms, and industrial IT environments. Delivering up to 7.7kW of single-phase power, this PDU provides advanced remote outlet-level control, monitoring, and reboot capabilities to improve uptime and reduce on-site maintenance.
Equipped with 24 individually controllable outlets (20× C13 and 4× C19), the unit allows administrators to power cycle devices, balance loads, and lock outlets remotely. Integrated LX Platform network management enables secure access via HTML5 web interface, SNMP, SSH, and telnet, while advanced features like Auto Probe monitoring and automatic reboot help maintain continuous operation of critical equipment.
A digital load meter, dual circuit breakers, and per-outlet LEDs provide real-time visibility and protection against overloads. Designed for vertical 0U installation, the PDUMV32HVNETLX mounts easily in standard 19-inch racks and connects to compatible UPS systems or generators using its IEC 60309 32A blue input plug. This model is TAA compliant, making it suitable for government and regulated deployments.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | PDUMV32HVNETLX |
| PDU Type | Switched, Network-Managed |
| Form Factor | Vertical 0U Rackmount |
| Input Voltage | 230V AC |
| Input Phase | Single-Phase |
| Maximum Input Current | 32A |
| Input Plug | IEC 60309 32A Blue (2P+E) |
| Input Cord Length | 10 ft (3.05 m) |
| Output Capacity | Up to 7.7kW |
| Output Frequency | 50 / 60 Hz |
| Outlets | 24 total |
| Outlet Configuration | 20 × IEC C13, 4 × IEC C19 |
| Outlet Control | Individual outlet on/off/reboot |
| Circuit Protection | Dual circuit breakers (two load banks) |
| Load Monitoring | Digital ammeter with bank and total load display |
| Network Interface | Integrated LX Platform network card |
| Management Protocols | Web (HTML5), SNMP, SSH, Telnet |
| Ethernet Speed | 10/100 Mbps |
| Environmental Monitoring | Supports external sensor modules |
| Rack Compatibility | Standard 19-inch EIA racks |
| Compliance | TAA, RoHS, CE |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Warranty | 2-Year Limited Warranty |
