Description

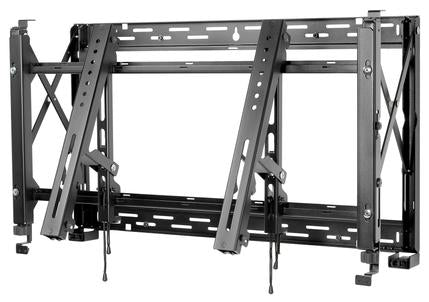

Video walls should be easy to configure, quick to install, and a snap to maintain. The SmartMount® Full-Service Video Wall Mount with a Quick Release is designed for quick service access in recessed video wall applications. This mount provides versatility demanded by installers. With quick release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR offers tool-less micro-adjustment and provides easy-access to any display. The custom wall plate spacers eliminate guesswork and on-site installation calculations, reducing installation time and cost.
Features

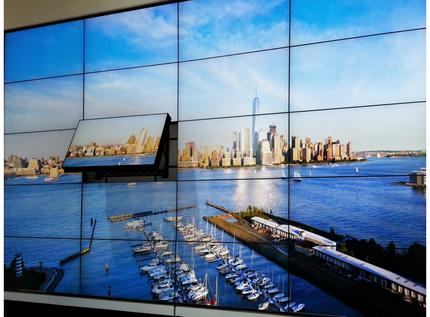

- Quick release mechanism provides convenient display access in recessed applications
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs
- Modular mount for unlimited video wall display configurations
- Simple, tool-less micro-adjustments at 8 points seamlessly align the displays
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple
- Reusable custom wall spacers eliminate guesswork and on-site installation calculations (sold separately)
Product Specifications
-
Minimum to Maximum Screen Size
46" to 65"
-
Mounting Pattern
200 x 200 up to 700 x 400mm
-
Weight Capacity
125lb (56.8kg)
-
Color
Black
-
Finish
Textured
-
Product Dimensions
35.59" x 21.37" x 3.08"-3.83" (904 x 543 x 78-97mm)
-
Product Weight
32.6lb (14.8kg)
Package Specifications
-
Shipping Weight
39lb (17.6kg)
-
Ship Dimensions
23.375 x 4.25 x 37.125" (593.7 x 108.0 x 943.0mm)
-
UPC Code
735029300847
