Description

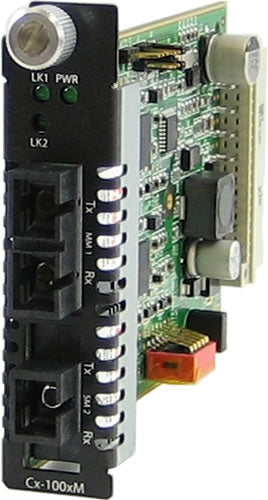

The Perle C-1000MM-S1SC40D Gigabit Ethernet Fiber to Fiber Media Converter Module delivers high-performance fiber extension for IT environments requiring flexible multimode-to-single mode conversion. Designed for installation in Perle’s high-density Media Converter Chassis, this module supports conversion from 1000BASE-SX 850nm multimode (SC) [up to 550 m / 1804 ft.] to 1000BASE-BX 1490nm TX / 1310nm RX single strand single mode fiber (SC) [up to 40 km / 25 miles].
With advanced features such as Smart Link Pass-Through, Fiber Fault Alert, and signal regeneration, Perle ensures transparent connectivity and simplified troubleshooting. IT professionals can rely on robust performance with support for jumbo packets, VLAN transparency, full/half duplex operation, and remote loopback testing. Backed by Perle’s lifetime warranty and global technical support, the C-1000MM-S1SC40D provides a reliable and cost-effective solution for enterprise fiber networking.
| Specification | Details |
|---|---|
| Manufacturer | Perle Systems |
| Model / SKU | C-1000MM-S1SC40D / 05061390 |
| Form Factor | Media Converter Module (for Perle Chassis) |
| Conversion Type | 1000BASE-SX multimode (SC) to 1000BASE-BX single strand single mode (SC) |
| Wavelengths | 850nm MM / 1490nm TX, 1310nm RX SM |
| Distance Support | MM: 550 m (1804 ft.), SM: up to 40 km (25 miles) |
| Connector Type | SC (multimode & single mode) |
| Features | Smart Link Pass-Through, Fiber Fault Alert, Signal Regeneration, Loopback |
| Network Standards | IEEE 802.3 1000BASE-SX, 1000BASE-BX |
| Jumbo Packets | Transparent up to 10KB |
| Duplex Modes | Full and Half Duplex supported |
| VLAN Support | Transparent to 802.1Q VLAN tagged packets |
| Pause Frames | IEEE 802.3x compliant (transparent) |
| Cascading | Supported for extended distance beyond 40 km |
| Warranty | Lifetime warranty with free worldwide technical support |
