Description
The Perle IDS-509F2PP6-T2SD40 is a rugged 7-port Industrial Managed Power over Ethernet (PoE+) Switch built to deliver high-performance networking in the most demanding environments. Designed with flexibility in mind, it supports both copper Gigabit Ethernet and fiber connectivity, ensuring reliable operation across manufacturing plants, military sites, transportation systems, oil & gas facilities, and outdoor applications.
With 6 PoE+ enabled ports delivering up to 30W each, the IDS-509F2PP6-T2SD40 powers wireless access points, IP cameras, and VoIP phones while maintaining uninterrupted data transmission. Built-in redundant power supply support, hardened fanless design, and compliance with EMI-resistant fiber technology guarantee stable operation in extreme conditions (-10°C to 60°C, XT models up to -40°C to 75°C).
For enterprise-grade security, it includes AAA authentication (RADIUS, TACACS+), 802.1X port security, and encrypted management sessions (SSH, HTTPS, SNMPv3). Advanced networking features like VLANs, QoS, IGMP Snooping, LLDP, and port mirroring ensure optimized traffic control and intelligent integration.
Whether DIN rail, rack, wall, or panel mounted, this switch is engineered for long-term reliability, backed by a 5-year limited warranty and Perle’s 35+ years of industrial networking expertise.
| Category | Details |
|---|---|
| Manufacturer | Perle Systems, Inc. |
| Part Number | 07016440 |

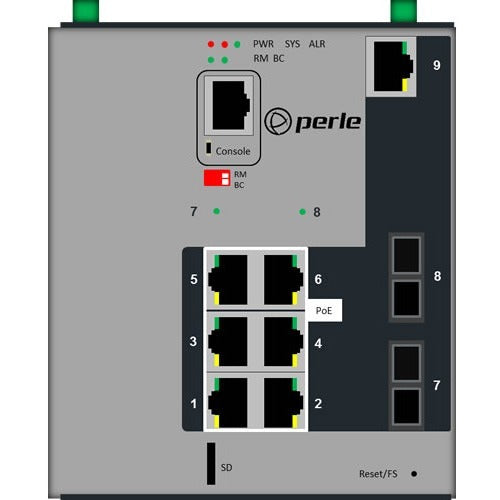

| Model | IDS-509F2PP6-T2SD40 |
| Product Type | Industrial Managed Power over Ethernet (PoE+) Switch |
| Ports | 7 x Gigabit Ethernet (10/100/1000Base-T), 2 x Fast Ethernet Fiber |
| PoE Capability | 6 x PoE/PoE+ (up to 30W per port, IEEE 802.3af/at) |
| Media Supported | Twisted Pair (Copper), Optical Fiber |
| Network Technology | 10/100/1000Base-T, 100Base-LX |
| Layer Supported | Layer 2 |
| Management | Web, CLI (Telnet/SSH), SNMPv3, HTTPS, RADIUS/TACACS+ AAA |
| Advanced Features | VLANs, QoS, Port Mirroring, IGMP Snooping, LLDP, 802.1X Port Security |
| Mounting Options | DIN Rail, Wall, Panel, Rack |
| Power | Dual Redundant Power Input, Reverse Polarity & Overload Protection |
| Form Factor | Fanless, Industrial Hardened Aluminum Case |
| Dimensions (HxWxD) | 3" x 5.1" x 4.8" |
| Weight | 3.3 lbs (approx.) |
| Operating Temp. | -10°C to 60°C (Standard), -40°C to 75°C (XT Models) |
| Environmental | RoHS, REACH, WEEE Compliant |
| Package Contents | Switch, DIN Rail Attachment, Terminal Block, Installation Guide |
| Warranty | 5-Year Limited Warranty |
