Description

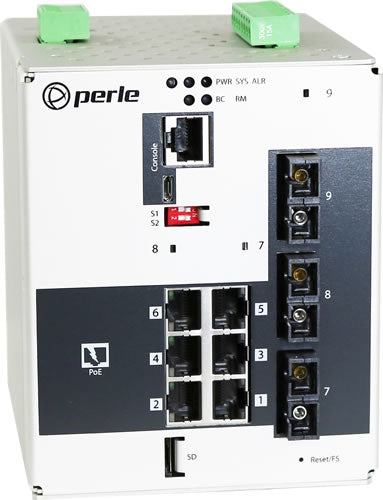

The Perle IDS-509G3PP6-C2MD05-SD10 is a rugged, industrial-grade managed Power over Ethernet (PoE+) switch built for demanding environments. Featuring 9 ports with flexible copper and fiber combinations, this switch supports Gigabit Ethernet, advanced Layer 2 protocols, and delivers up to 30W PoE per port for powering wireless access points, IP cameras, and VoIP phones.
Designed with redundant power inputs, corrosion-resistant aluminum casing, and fanless operation, the IDS-509G3PP6 ensures maximum reliability in harsh conditions such as manufacturing plants, oil and gas, transportation, and outdoor applications. With advanced security, QoS, VLAN, and IPv6 management, this switch delivers deterministic network performance while protecting mission-critical communications.
| Category | Details |
|---|---|
| Manufacturer | Perle Systems, Inc. |
| Part Number (SKU) | 07016950 |
| Model | IDS-509G3PP6-C2MD05-SD10 |
| Product Type | Industrial Managed Power over Ethernet (PoE+) Switch |
| Ports | 9 total (6 x Gigabit Ethernet, 3 x Gigabit Ethernet/Fiber options) |
| Media Supported | Optical Fiber, Twisted Pair |
| Ethernet Standards | 10/100/1000Base-T, 1000Base-SX, 1000Base-LX/LH |
| Layer Supported | Layer 2 |
| PoE Capability | 6 PoE+ ports, up to 30W per port |
| Manageability | CLI, Telnet, SSH, HTTPS, SNMPv3, RADIUS, TACACS+, VLAN, QoS, IPv6 support |
| Mounting Options | DIN Rail, Wall, Panel, Rack |
| Form Factor (WxDxH) | 5.1" x 4.8" x 3" |
| Weight | 3.31 lbs |
| Operating Temp. | -10°C to 60°C (standard), -40°C to 75°C (extended models) |
| Enclosure | Corrosion-resistant aluminum, fanless design |
| Power | Dual redundant DC power inputs with reverse polarity & overload protection |
| Compliance | RoHS, REACH, WEEE |
| Warranty | 5-Year Limited Warranty |
| Package Includes | Switch unit, DIN rail attachment, terminal block, installation guide |
