Description

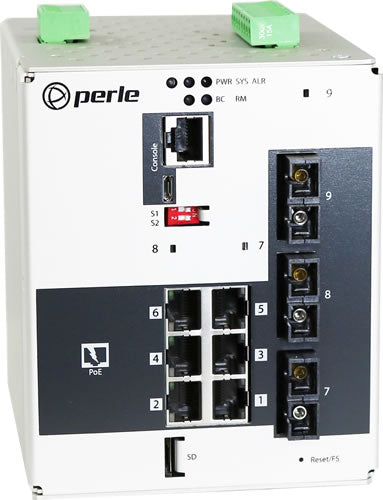

The Perle IDS-509G3PP6-C2MD05-SD120 is a rugged industrial-grade 9-port Managed PoE+ Switch designed for mission-critical networks in harsh environments. Featuring six 10/100/1000Base-T PoE/PoE+ copper ports, two 1000Base-SX multimode fiber ports (SC, up to 550m), and one 1000Base-ZX single-mode fiber port (SC, up to 120 km), it provides flexible connectivity to meet diverse deployment needs.
As a Power Sourcing Equipment (PSE), it delivers up to 30W per port to connected Powered Devices (PDs) such as IP cameras, wireless access points, and VoIP phones. Its PRO feature set enables advanced security, QoS, VLANs, and network resiliency protocols, ensuring high performance in real-time industrial automation.
Engineered with a fanless, corrosion-resistant aluminum enclosure, dual redundant 48VDC power inputs, and extreme operating temperature support, this switch ensures reliability in government, military, oil & gas, transportation, and outdoor applications. With advanced manageability, IEEE 1588 PTP synchronization, and strong security protocols, it delivers both durability and intelligence for complex networks.
| Category | Details |
|---|---|
| Manufacturer | Perle Systems, Inc. |
| SKU / Part Number | 07017010 |
| Product Model | IDS-509G3PP6-C2MD05-SD120 |
| Form Factor | Industrial DIN-rail mount, fanless aluminum enclosure |
| Ports | 9 total ports: (6) 10/100/1000Base-T RJ45 (PoE/PoE+), (2) 1000Base-SX SC, (1) 1000Base-ZX SC |
| Fiber Support | 1000Base-SX multimode (850nm, SC, up to 550m) 1000Base-ZX single-mode (1550nm, SC, up to 120 km) |
| PoE Capabilities | IEEE 802.3af/at compliant, up to 30W per port |
| Power Input | Dual redundant 48VDC with reverse polarity and overload protection |
| Security | AAA (RADIUS, TACACS+), SSH, SNMPv3, HTTPS, 802.1X, ACLs, password enforcement |
| Advanced Protocols | IEEE 1588 PTP, LLDP, GVRP, MSTP, GMRP, IGMP Snooping (IPv4), MLD Snooping (IPv6) |
| Management Interfaces | CLI (Telnet/Serial), Web GUI, SNMP, Fast Setup |
| Environmental Specs | Operating Temp: -10°C to 60°C (Standard) -40°C to 75°C (XT models) |
| Certifications | Hazardous Location Certification, Programmable Controller safety compliant |
| Use Cases | Industrial automation, military, oil & gas, mining, outdoor & transportation networks |
