Description

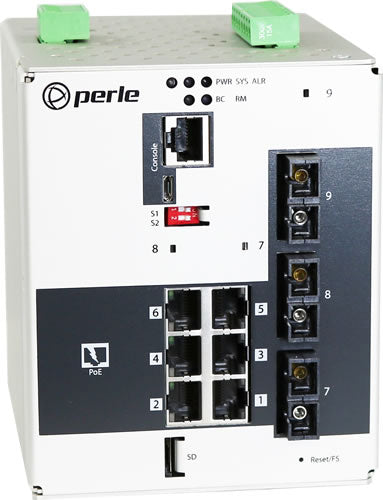

The Perle IDS-509G3PP6-C2SD10-MD05 is a rugged industrial-grade managed 9-port PoE+ switch designed to deliver reliable networking in demanding environments. With six 10/100/1000Base-T RJ45 ports (PoE/PoE+ capable), two 1000Base-LX/LH single-mode SC fiber ports (1310nm, up to 10km), and one 1000Base-SX multimode SC fiber port (850nm, up to 550m), it provides exceptional flexibility for diverse deployment needs.
This switch is equipped with Power Sourcing Equipment (PSE) functionality, delivering up to 30W per port to power devices such as IP cameras, VoIP phones, and wireless access points. Built with Perle’s PRO feature set, it supports advanced security protocols (RADIUS, TACACS+, SSH, IEEE 802.1x), VLAN segmentation, QoS, and IPv6 manageability.
The fanless, corrosion-resistant aluminum case ensures long-term durability in harsh conditions such as factories, utilities, oil & gas, mining, and outdoor applications. With redundant dual power inputs, extended operating temperatures (-10°C to 60°C standard / -40°C to 75°C XT models), and immunity to EMI, the IDS-509G3PP6-C2SD10-MD05 guarantees secure and reliable data transmission across industrial networks.
| Category | Details |
|---|---|
| Manufacturer | Perle Systems, Inc |
| SKU / Part Number | 07017050 |
| Model | IDS-509G3PP6-C2SD10-MD05 |
| Form Factor | Industrial DIN-Rail Mount, Fanless |
| Copper Ports | 6 × 10/100/1000Base-T RJ45 (PoE/PoE+ PSE, IEEE 802.3af/at) |
| Fiber Ports | 2 × 1000Base-LX/LH SC single-mode (1310nm, up to 10km) 1 × 1000Base-SX SC multimode (850nm, up to 550m) |
| PoE Power Output | Up to 30W per port |
| Switching Features | VLAN, QoS, IGMP Snooping, IPv6 MLD, LLDP, MSTP, Voice VLANs |
| Security Features | AAA (RADIUS, TACACS+), 802.1x, SSH, HTTPS, SNMPv3, Access Lists, Password Enforcement |
| Management Interfaces | CLI (Telnet/Serial), Web GUI, SNMP, IPv6 capable |
| Power Input | Dual redundant 48 VDC, reverse polarity & overload protection |
| Enclosure | Corrosion-resistant aluminum, DIN-rail mount |
| Operating Temperature | -10°C to 60°C (Standard) -40°C to 75°C (XT models) |
| Certifications | Hazardous Location & Safety Certifications |
| Use Cases | Industrial automation, utilities, military, mining, oil & gas, transportation, outdoor networks |
