Description

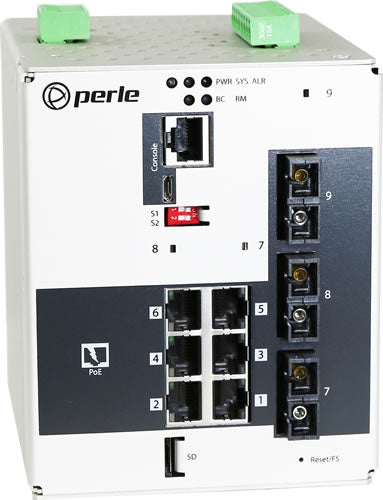

The Perle IDS-509G3PP6-C2SD10-SD160 is a rugged industrial-grade 9-port Managed PoE+ Switch designed to deliver high-performance, secure, and reliable networking in harsh environments. With six PoE/PoE+ enabled 10/100/1000Base-T RJ45 ports, two 1000Base-LX SC fiber ports (1310nm, 10km), and one 1000Base-ZX SC fiber port (1550nm, 160km), it offers flexible connectivity for industrial networks requiring long-distance fiber transmission.
This switch provides up to 30W per PoE+ port for powering wireless access points, VoIP phones, and IP cameras, while ensuring robust network protection with AAA security, IEEE 802.1X, RADIUS, and TACACS+. Equipped with Perle’s PRO software feature set, it supports advanced Layer 2 protocols, VLANs, QoS, MSTP, and IPv6 management.
Built for mission-critical deployments in oil & gas, utilities, military, mining, and transportation, the IDS-509GPP features a fanless, corrosion-resistant aluminum chassis, dual redundant power inputs, and operating temperature tolerance from -10°C to 60°C (standard) and -40°C to 75°C (XT models).
| Category | Details |
|---|---|
| Manufacturer | Perle Systems |
| SKU / Part Number | 07017130 |
| Model | IDS-509G3PP6-C2SD10-SD160 |
| Ports | 9 total – (6) 10/100/1000Base-T RJ45 (PoE/PoE+), (2) 1000Base-LX SC (10km), (1) 1000Base-ZX SC (160km) |
| PoE Capability | IEEE 802.3af/at compliant, up to 30W per port (PSE) |
| Fiber Type & Distance | SC Duplex – 1310nm LX (10km), 1550nm ZX (160km) |
| Switching Features | VLANs, QoS, MSTP, IGMP Snooping, IPv6 MLD Snooping, LLDP, GVRP, Voice VLAN |
| Security | AAA (RADIUS, TACACS+), 802.1X, Port Security, SSH, HTTPS, SNMPv3, ACLs |
| Management | CLI (Telnet/Serial), Web GUI, IPv6 addressable, P-Ring, RMON, port mirroring |
| Power Input | Dual redundant 48 VDC with reverse polarity & overload protection |
| Chassis | Fanless, corrosion-resistant aluminum, DIN-rail mountable |
| Operating Temp | -10°C to 60°C (Standard), -40°C to 75°C (XT Models) |
| Certifications | Hazardous Location, Industrial Safety, IEEE 1588 PTP support |
