Description

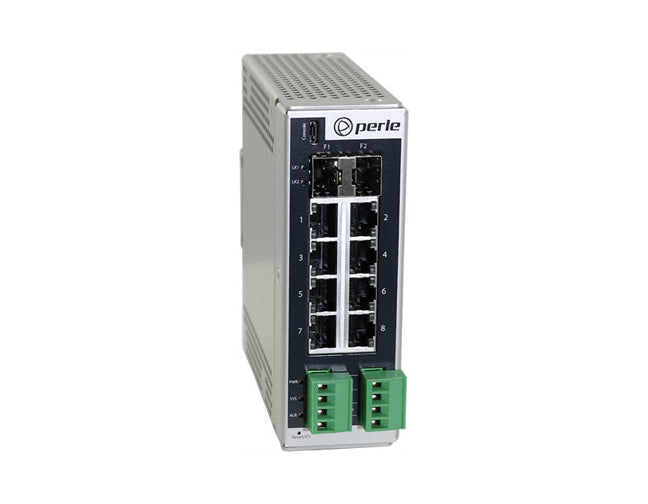

The Perle IDS-710HP Industrial Managed Ethernet Switch (SKU: 07017270) is a rugged, high-performance solution designed for demanding industrial environments. With 8 Gigabit PoE++ ports and 2 flexible SFP slots, this switch delivers reliable connectivity and up to 100W per port, providing a total of 450W of PoE power to support PTZ cameras, wireless access points, traffic controllers, and sensors.
Engineered for extreme conditions, the IDS-710HP ensures <10ms recovery time, robust redundancy protocols (STP/RSTP/MSTP, MRP, P-Ring), and advanced security features such as 802.1X, TACACS+, RADIUS, SSH, and SNMPv3. It also supports PROFINET and Modbus TCP for seamless integration into automation, SCADA, and industrial control systems.
Built with a fanless, corrosion-resistant aluminum chassis, dual redundant power inputs, and compliance with global safety and EMC standards, the IDS-710HP provides dependable, long-term operation in harsh environments from -10°C to 60°C. For more extreme conditions, the IDS-710HP-XT variant is available.
| Category | Details |
|---|---|
| Manufacturer | Perle Systems |
| Model | IDS-710HP |
| SKU / Part Number | 07017270 |
| Ports | 10 total – 8 x 10/100/1000Base-T PoE++ RJ-45, 2 x SFP slots (1G/2.5G) |
| PoE Power Budget | 450W total; up to 100W per port (802.3bt Type 4) |
| PoE Standards | IEEE 802.3af (15.4W), 802.3at (30W), 802.3bt Type 3 (60W), Type 4 (100W) |
| Protocols Supported | PROFINET, Modbus TCP, IGMP Snooping, LLDP-MED, GVRP, VLANs, MRP, MSTP |
| Redundancy | STP, RSTP, MSTP, MRP (IEC 62439-2), P-Ring, Link Standby |
| Security | 802.1X, SSHv2, SNMPv3, HTTPS, TACACS+, RADIUS, Port Security |
| Switching Capacity | Store and Forward; 8K MAC address table |
| Management | Web Device Manager, CLI (Telnet/SSH), SNMP (v1, v2c, v3), PerleVIEW |
| Power Input | Dual 44–57VDC redundant power inputs with overload and reverse polarity protection |
| Operating Temp. | -10°C to 60°C (14°F to 140°F) |
| MTBF | 192,408 hours |
| Certifications | CE, FCC Part 15 Class A, UL/IEC 61010-1/2, EN62368-1, RoHS, WEEE, NERC CIP |
| Dimensions (W x H x D) | 130 x 130 x 45 mm (5.1 x 5.1 x 1.8 in) |
| Weight | 0.48 kg (1.06 lb) |
| Mounting | DIN Rail (included); optional panel/wall mount kit |
| Warranty | 5-Year Return-to-Factory |
