Description

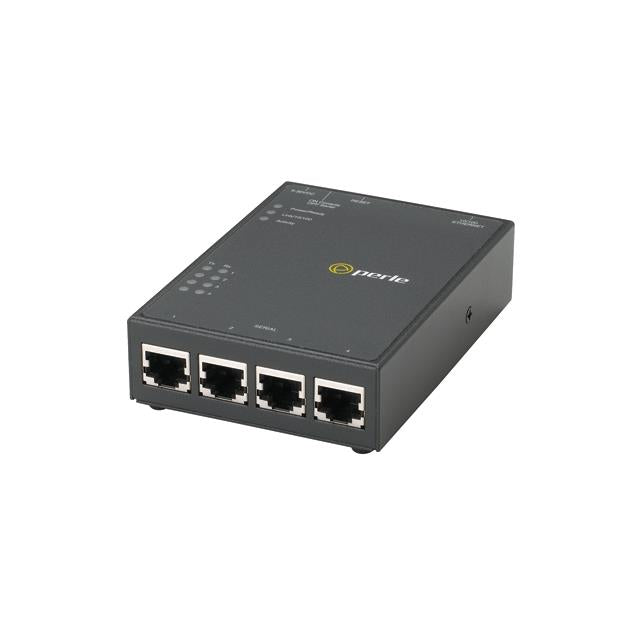

The Perle IOLAN SDS4 P is a 4-port Secure Device Server with Power over Ethernet (PoE) designed for high-performance serial-to-Ethernet connectivity. Built for demanding enterprise, industrial, and data center environments, it allows secure remote access to serial console ports on servers, routers, firewalls, PBXs, and network devices.
With support for IPv6/IPv4, AES and 3DES encryption, SSH/SSL security, and advanced authentication protocols (RADIUS, TACACS+, LDAP, Kerberos, RSA SecurID), the IOLAN SDS4 P ensures safe data transport and reliable device management. Its software-selectable RS-232/422/485 interfaces, compact steel enclosure, and robust 15kV ESD protection make it ideal for flexible deployment in field applications.
Combined with Perle’s TruePort COM/TTY re-director, the SDS4 P enables transparent data tunneling, fixed COM port emulation, and centralized device management across IP networks. Backed by Perle’s lifetime warranty, it delivers long-term investment protection and industry-leading reliability.
| Category | Details |
|---|---|
| Brand | Perle Systems |
| Product Line | IOLAN SDS P Series |
| Model | SDS4 P |
| SKU / Part Number | 04030340 |
| Form Factor | Secure Device Server with PoE |
| Serial Ports | 4 x software-selectable RS-232/422/485 |
| Serial Connector | RJ45 10-pin |
| Network Interface | 1 x 10/100Mb RJ45 Ethernet |
| Security | SSHv1/v2, SSL/TLS, AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR, ARCTWO; RADIUS, TACACS+, LDAP, NIS, Kerberos, RSA SecurID |
| Supported Protocols | IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, SNMPv3, DNS, HTTP/HTTPS, Telnet/SSH, Modbus TCP/RTU/ASCII, PPP, LPD, RCP, SMTP, SYSLOG |
| Management | Web browser (HTTP/HTTPS), Perle DeviceManager, CLI (Telnet/SSH), SNMP, SYSLOG |
| Indicators | Power/Ready, Network Link/Activity, Serial TX/RX LEDs |
| Performance | 50bps to 230Kbps, full modem & hardware flow control |
| Power Options | IEEE 802.3af PoE (pins 1/2, 3/6 or 4/5, 7/8); Optional 9–30V DC external adapter |
| Dimensions (LxWxH) | 11.3 x 8.1 x 2.8 cm (4.4 x 3.2 x 1.1 in) |
| Weight | 0.34 kg (0.75 lbs) |
| Operating Temp | 0°C to 55°C (32°F to 131°F) |
| Storage Temp | -40°C to 66°C (-40°F to 150°F) |
| Certifications | FCC Part 15A, CE, UL 60950, EN 55022/55024 Class A, CSA |
| Warranty | Perle Limited Lifetime Warranty |
