Description

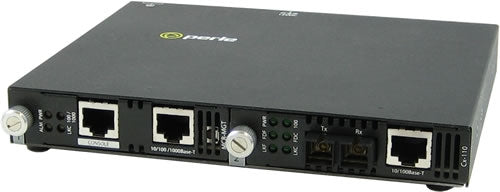

The Perle SMI-110-S1SC40D is a high-performance Fast Ethernet IP Managed Standalone Media and Rate Converter that provides seamless copper-to-fiber connectivity. Designed for enterprise and carrier-grade networks, it extends Ethernet connections up to 40 km (24.9 miles) over single-mode, single-fiber using an SC connector (1550nm TX / 1310nm RX).
This managed media converter supports advanced features such as Link Pass-Through, Far-End Fault detection, Auto-MDIX, VLAN tagging, QoS prioritization, bandwidth allocation, and secure management via SNMPv3, SSH, HTTPS, or PerleVIEW. With robust authentication options including TACACS+, RADIUS, and LDAP, it ensures secure network integration.
Built for mission-critical applications, the SMI-110-S1SC40D offers flexible configuration, detailed port statistics for troubleshooting, and enterprise-class management capabilities, backed by Perle’s lifetime warranty and worldwide technical support.
| Category | Details |
|---|---|
| Brand | Perle |
| Product Line | SMI-110 Series |
| Model / SKU | SMI-110-S1SC40D / 05071084 |
| Function | Fast Ethernet IP Managed Standalone Media & Rate Converter |
| Copper Interface | 10/100Base-TX (RJ45, 100m/328ft) |
| Fiber Interface | 100Base-FX, Single Fiber, Single Mode, SC |
| Wavelength | 1550nm TX / 1310nm RX |
| Maximum Distance | Up to 40km (24.9 miles) |
| Advanced Features | Link Pass-Through, Far-End Fault, Auto-MDIX, QoS, VLAN tagging, Multicast filtering, Unidirectional Ethernet |
| Management Options | SNMP v1/v2c/v3, SSH CLI, Telnet, HTTPS/HTTP Web Interface, PerleVIEW, Console port |
| Security | TACACS+, RADIUS, LDAP, Active Directory, RSA SecureID, Kerberos, NIS |
| Encryption & Protocols | AES (256/192/128), 3DES, DES, Blowfish, CAST128, RC4, RC2, MD5, SHA-1, SSL/TLS, SNMPv3 |
| Port Control | Enable/disable copper & fiber ports individually |
| Diagnostics & Stats | Loopback, real-time port statistics, event logs, SNMP traps, Syslog, email alerts |
| Compliance | IEEE 802.3, IEEE 802.3u, VLAN tagging, QoS priority mapping |
| Dimensions | Standalone chassis (compact size, SMI form factor) |
| Warranty | Lifetime Warranty with Free Worldwide Technical Support |
