Description

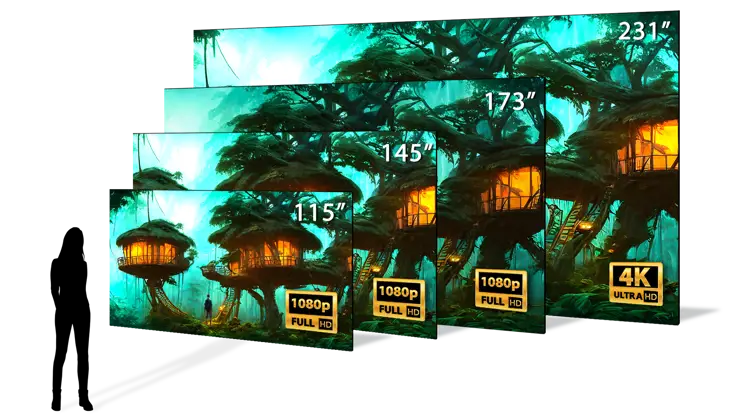

The Planar Luminate™ Ultra W Complete HD 145 is a fully integrated outdoor MicroLED video wall solution designed for uncompromising performance in large-scale applications. With a massive 145-inch diagonal screen, Full HD resolution (1920 x 1080), and ultra-bright 3000-nit output, this display ensures stunning visual impact even in direct sunlight.
Built for demanding 24/7 environments, the system includes everything you need for a seamless installation: MicroLED display cabinets, wall mounts, trim, a Colorlight Z5 controller, cables, and spare modules. Featuring a fine 1.6mm pixel pitch, deep 10,000:1 contrast, and wide >170° viewing angles, it delivers exceptional clarity and uniformity across all content.
With IP65 protection on both front and back, a 3840Hz refresh rate, and durable design rated for all-weather performance, the Planar Luminate Ultra W Complete HD 145 is the ultimate choice for outdoor digital signage, entertainment venues, and large-format presentations.
| Specification | Detail |
|---|---|
| Model | Planar Luminate Ultra W Complete HD 145 |
| Part Number | 998-4019-00 |
| Controller | Colorlight Z5 |
| Display Technology | MicroLED |
| Diagonal Size | 145" |
| Dimensions (with mounts) | 3200.4 × 1798.32 × 95.5 mm (126 × 70.8 × 3.76 in) |
| Pixel Pitch | 1.6 mm |
| Resolution | 1920 × 1080 (Full HD) |
| Weight | 521 lbs |
| Max Power Consumption | 5250 W |
| Brightness (Max, Calibrated) | 3000 nits |
| Supported Frame Rates | 50 & 60 Hz |
| Color Temperature | 3000–10,000K (adjustable) |
| Luminance Uniformity | 97% |
| Contrast Ratio | 10,000:1 |
| Viewing Angle (50% Brightness) | >170° horizontal / >170° vertical |
| Front Access Install/Service | Yes |
| Refresh Rate | 3840 Hz |
| Operating Temperature/Humidity | -20° to 50°C (-4° to 122°F), 10–80% RH (non-condensing) |
| Storage Temperature/Humidity | -35° to 60°C (-31° to 140°F), 10–85% RH (non-condensing) |
| IP Rating | IP65 (front and back) |
| Video Input Resolution | Up to 4096 × 2160 |
| Duty Cycle | 24/7 operation |
