Description

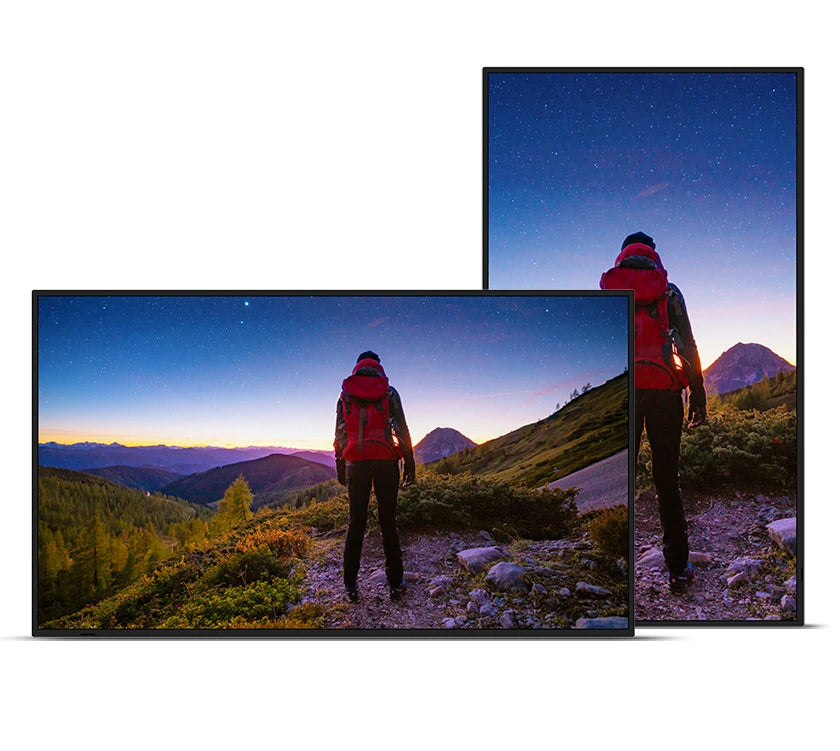

The Sharp PN-M502 is a premium 50-inch 4K UHD professional display engineered for high-performance digital signage and mission-critical environments. Designed with a robust full-metal chassis and advanced thermal management, it supports true 24/7 operation while maintaining consistent performance and reliability.
Powered by Sharp’s proprietary SpectraView Engine, the PN-M502 delivers exceptional color accuracy, uniformity, and stability right out of the box with factory calibration. Its 550 cd/m² brightness and high haze panel ensure clear, vivid visuals in a wide range of lighting conditions, making it ideal for retail, corporate, healthcare, and control room applications.
With modern connectivity including USB-C with 65W power delivery, HDMI, and DisplayPort, along with advanced daisy-chain and failover capabilities, the PN-M502 enables seamless integration into complex AV ecosystems. Flexible installation options, including landscape and portrait orientation, further enhance its adaptability for dynamic signage deployments.
| Feature | Specification |
|---|---|
| Display Size | 50" (49.5" viewable) |
| Resolution | 3840 x 2160 (4K UHD) |
| Panel Technology | VA |
| Brightness | 550 cd/m² |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (89°/89°/89°/89°) |
| Pixel Pitch | 0.285 mm |
| Color Support | Over 1.07 billion colors |
| Backlight Type | LED Direct-Lit |
| Orientation | Landscape and Portrait |
| Operating Hours | 24/7 continuous operation |
| Connectivity Inputs | 2x HDMI, 1x DisplayPort, 1x USB-C (DP Alt Mode, 65W PD) |
| Connectivity Outputs | HDMI Out, DisplayPort Out |
| Control Interfaces | LAN, RS-232C, IR |
| USB Ports | USB-C (hub), USB-A (service and downstream) |
| Daisy Chain Support | Yes (LAN, HDMI, DisplayPort) |
| Audio | HDMI, DisplayPort, USB-C audio support, 3.5mm output |
| Power Consumption (Typical) | 85W |
| Power Consumption (Max) | 305W |
| VESA Mount | 300 x 300 mm |
| Dimensions (W x H x D) | 44.2 x 25.4 x 2.6 inches |
| Weight | 39.7 lbs |
| Operating Temperature | 0°C to 40°C |
| Energy Efficiency | ENERGY STAR 8.0 Certified |
| Warranty | 3-Year Commercial Warranty |
| Key Features | SpectraView Engine, failover input switching, USB-C power delivery, NaViSet Administrator 2 compatibility |
