Description

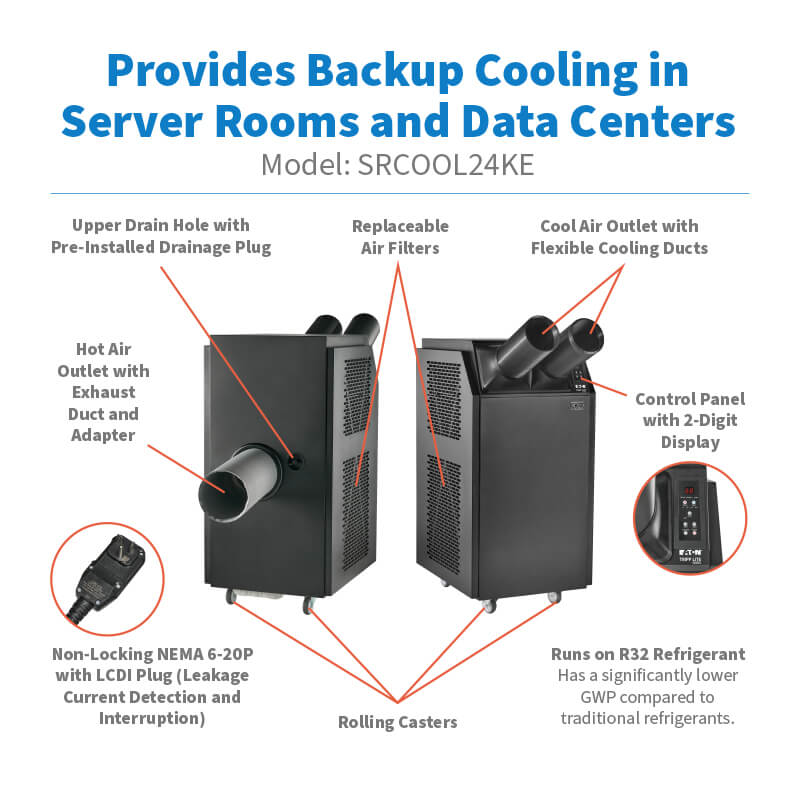

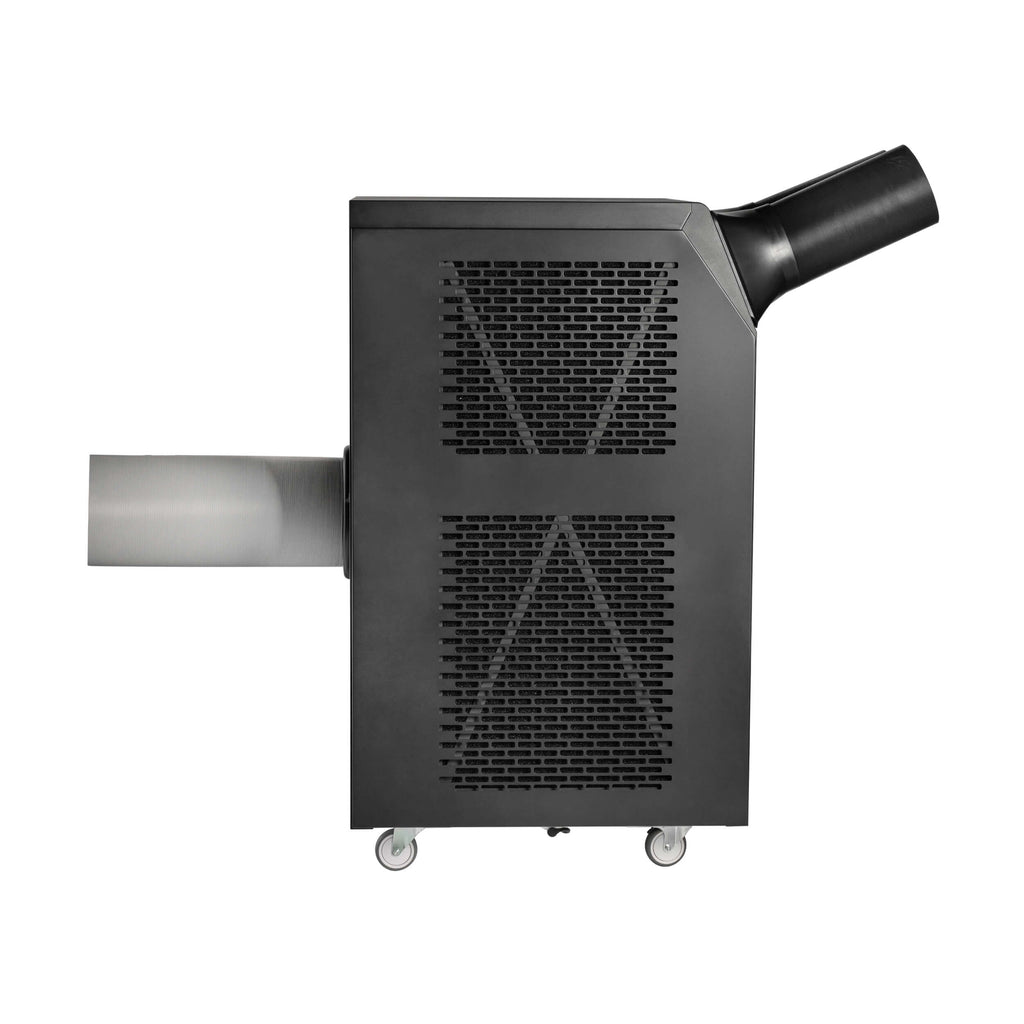

The Tripp Lite SRCOOL24KE by Eaton is a powerful, energy-efficient 24,000 BTU (7 kW) portable air conditioning unit engineered for high-performance cooling in server rooms, data centers, and network closets. Utilizing R32 refrigerant, the SRCOOL24KE offers superior efficiency and environmental compliance with modern energy standards (CEC, DoE, NRCan, EPA/AIM).
This close-coupled cooling solution delivers targeted airflow directly to overheated racks or equipment hot spotsāreducing recirculation and improving energy efficiency by up to 34.7%. The integrated evaporator ensures drip-free operation with no need for a drain tank or tube. Equipped with the SRCOOLNET2LX network interface and ENVIROSENSE environmental sensor, users can remotely monitor, manage, and automate cooling performance 24/7 through SNMP, web, SSH, or CLI access.
Designed for simple plug-and-play deployment, this self-contained system requires no plumbing or HVAC installation. Its 6-20P LCDI plug connects to a 208/240V 20A outlet, and the unit automatically restarts after power loss. The SRCOOL24KE provides reliable, precise climate control for mission-critical IT environments.
| Category | Specification |
|---|---|
| Model Number | SRCOOL24KE |
| Cooling Capacity | 24,000 BTU (7 kW ASHRAE) / 16,000 BTU (4.7 kW SACC) |
| Refrigerant Type | R32 (Low GWP) |
| Power Input | 208 / 240 V AC 60 Hz |

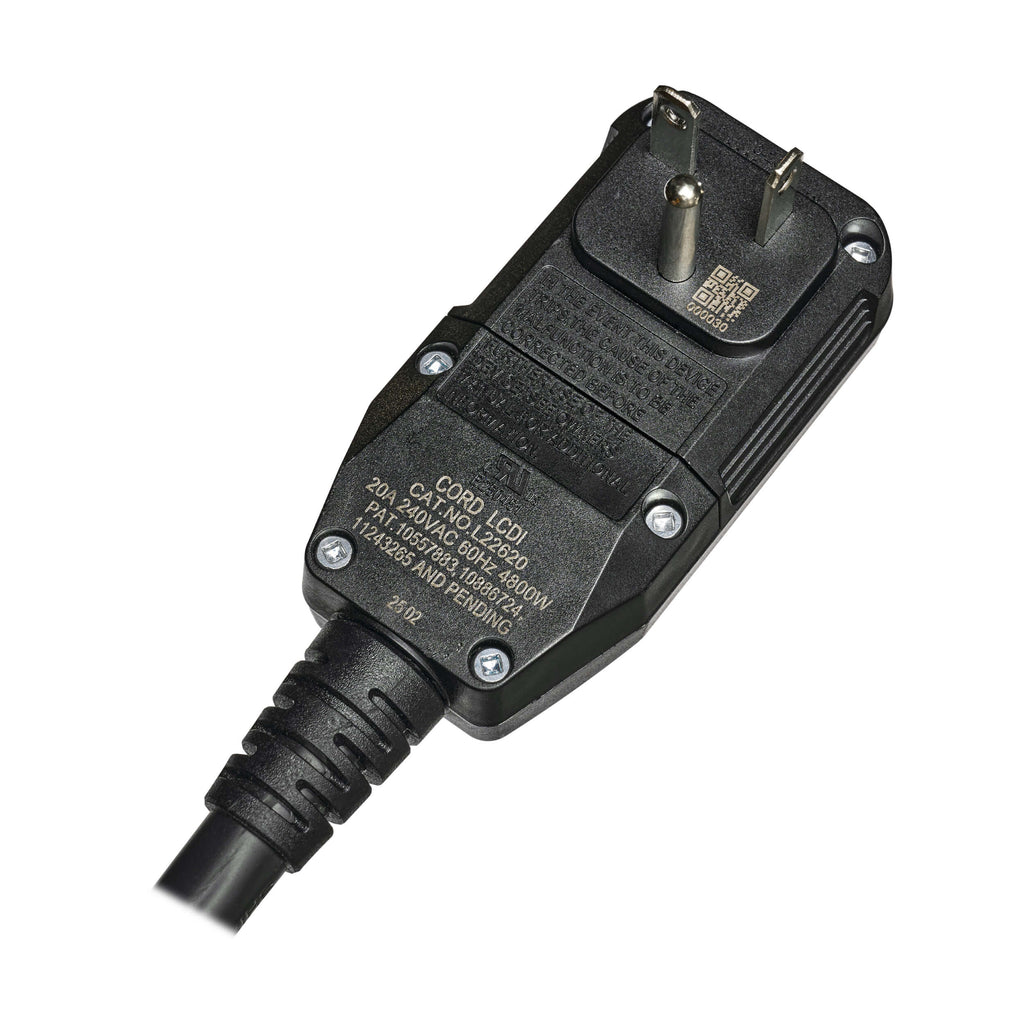

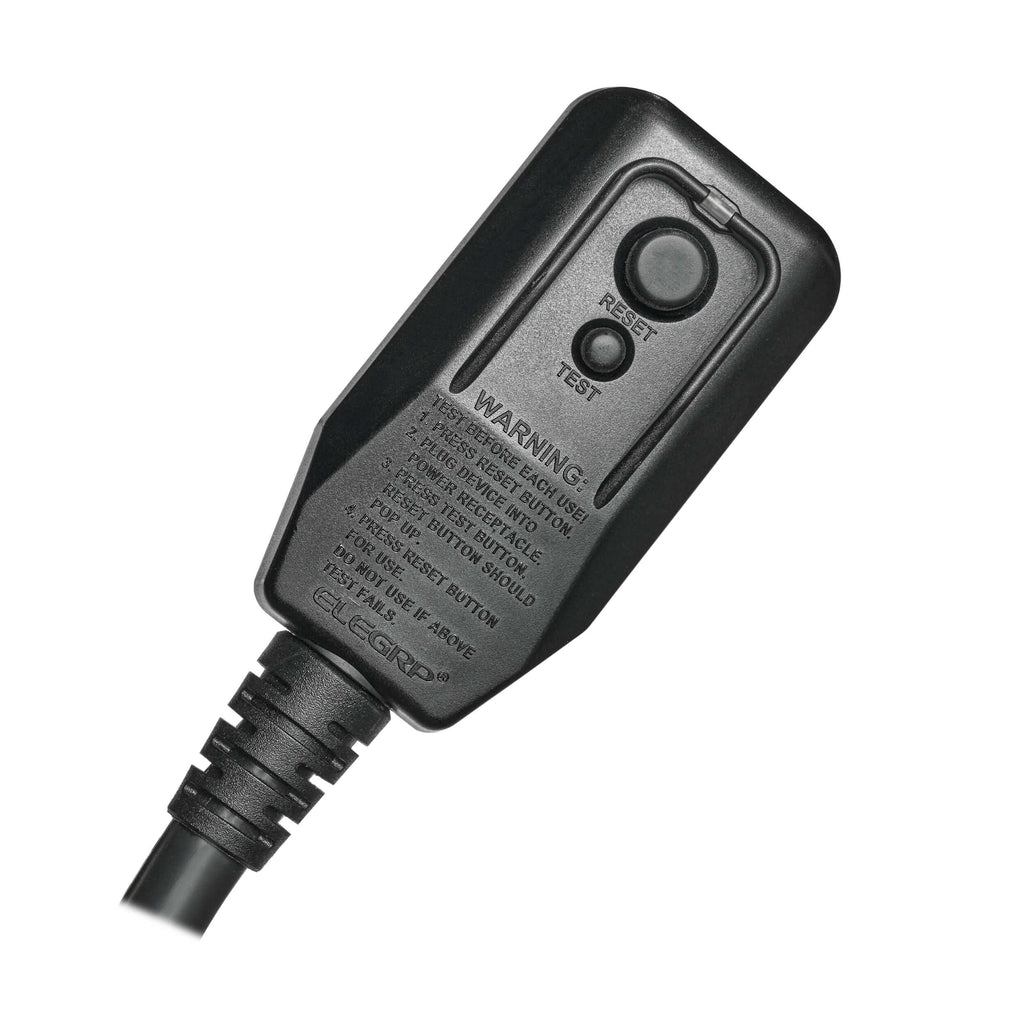

| Plug Type | 6-20P LCDI (Non-twist / Locking) |
| Electrical Consumption | 1,700 W (Max) |
| Amp Draw | 13.5 A (Nominal) |
| Airflow | Evaporator: 634 CFM / Condenser: 640 CFM |
| Dehumidification Capacity | 5 L per hour |
| Cooling Area | Up to 47 mĀ² (506 ftĀ²) |

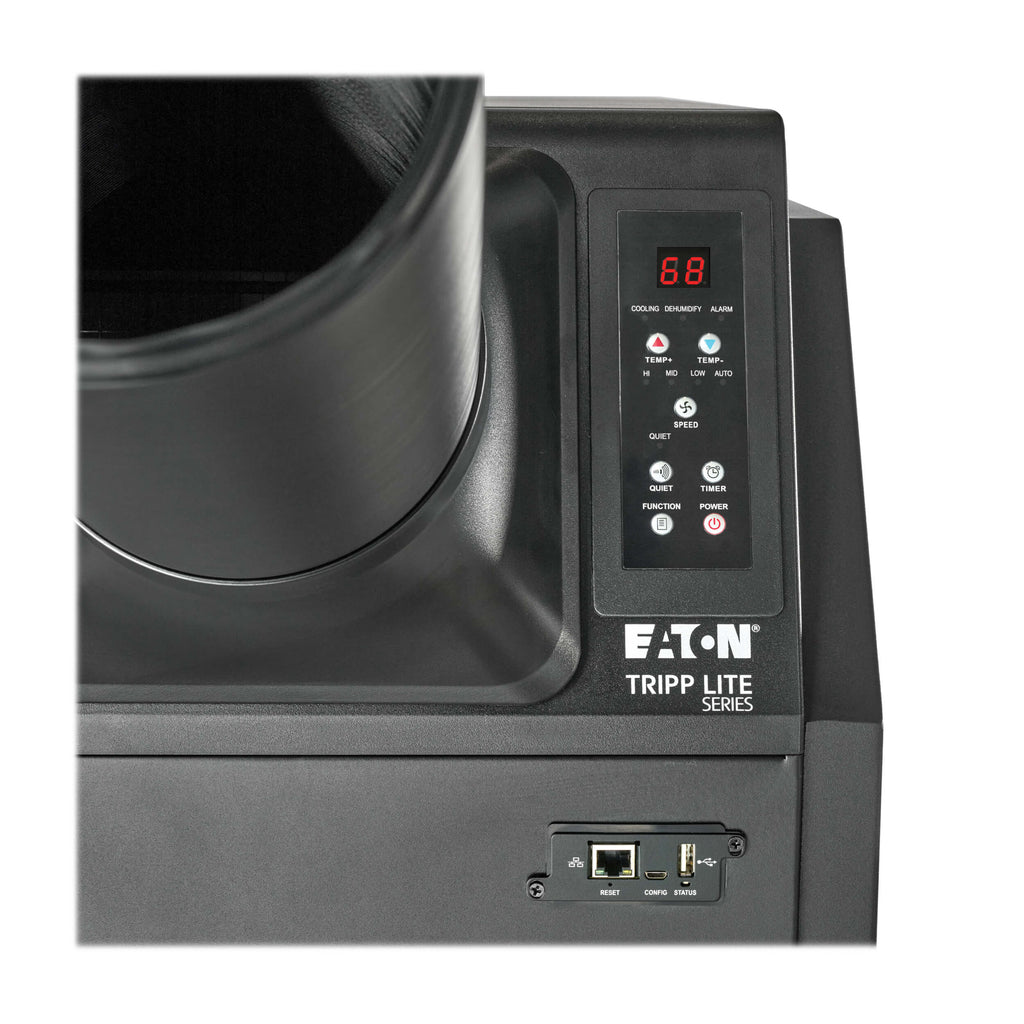

| Control Panel | Touch LED display with temperature readout |
| Remote Monitoring | SRCOOLNET2LX module (SNMP, web, SSH, Telnet, CLI) |
| Included Sensors | ENVIROSENSE environmental sensor |

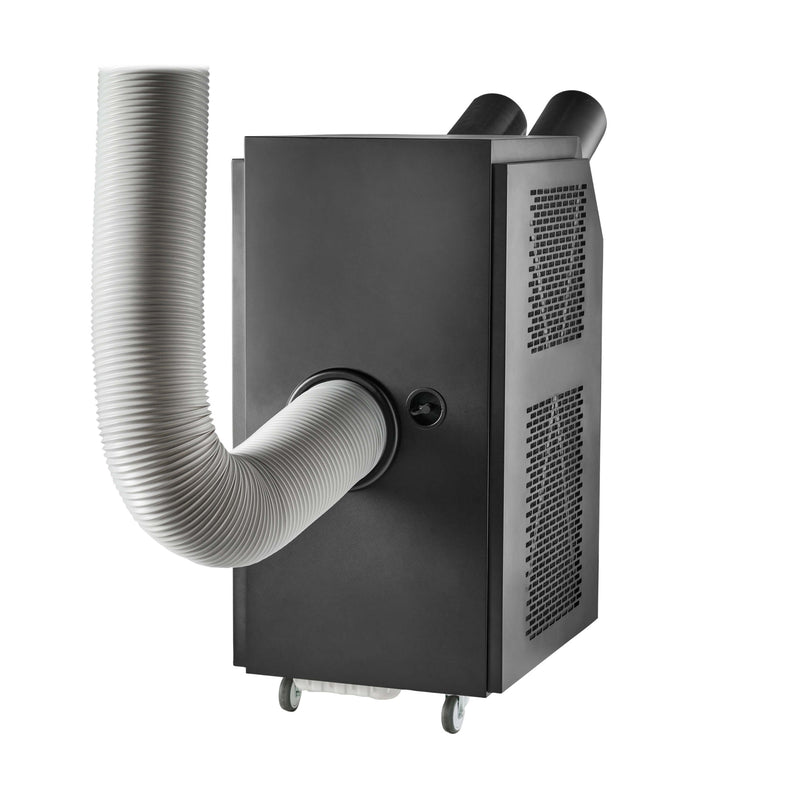

| Air Exhaust Hose | 118 in (3 m) length Ć 5.16 in diameter |
| Compressor Type | Rotary |
| Noise Level | 65 dB |
| Construction Material | Steel |
| Color | Black |
| Form Factor | Tower, Portable on casters |
| Dimensions (H Ć W Ć D) | 45.5 Ć 22.6 Ć 27.2 in (1156 Ć 574 Ć 691 mm) |
| Weight | 175.4 lb (79.6 kg) |
| Certifications | UL 60335, CSA, NOM, CEC Title 20, DoE Title 10 CFR 430, NRCan, EPA/AIM, RoHS |
| Warranty (U.S. & Canada) | 2-Year Limited Warranty |

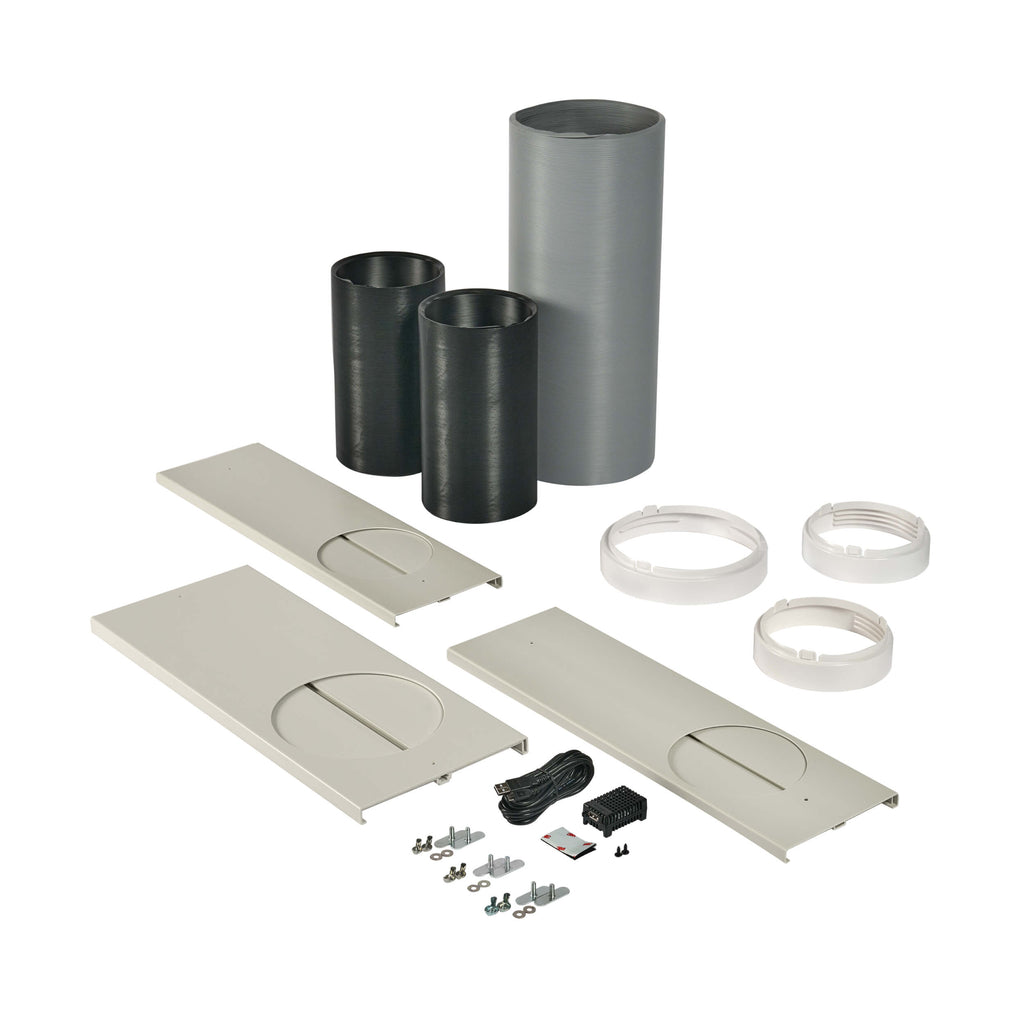

| Package Includes | SRCOOL24KE unit, SRCOOLNET2LX module, ENVIROSENSE sensor, exhaust kit, cooling ducts, connectors, adjustable panels, USB cable, manual |
