Description

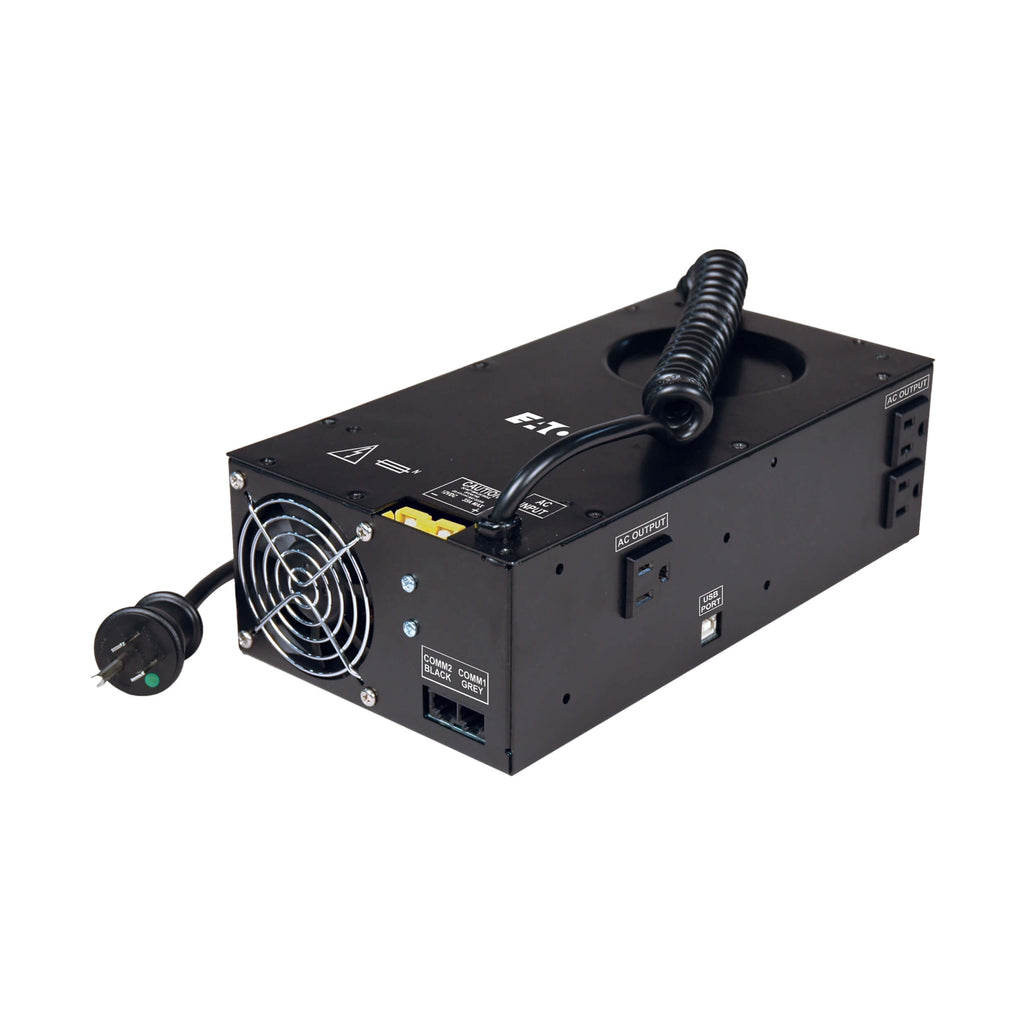

The Eaton HCRK-36 Medical-Grade Mobile Power Retrofit Kit delivers safe, reliable AC power for healthcare environments by meeting UL 60601-1 patient-safety standards. Designed to retrofit existing medical carts, this all-in-one kit includes a 300-watt isolation-transformer power supply, a 36 amp-hour sealed lead-acid battery, and a remote user interface (RUI) for monitoring output and charge status.
It enables simultaneous equipment operation and battery recharging through an automatic transfer switch (ATS) and features three hospital-grade NEMA 5-15R outlets for connecting mobile medical devices. Compatible with most major cart brands—including AFC, Anthro, Datalux, GCX, Hergo, Humanscale, Jaco, Knurr, and Stinger—the HCRK-36 offers a cost-effective way to upgrade existing carts without purchasing new powered models.
Built with durable all-metal construction, integrated fan cooling, and PowerAlert software support, this retrofit kit is ideal for ensuring consistent, safe, and portable power throughout hospitals, clinics, and patient-care areas.
| Category | Specification |
|---|---|
| Model Number | HCRK-36 |
| Power Capacity | 300 W continuous / 750 W peak |
| Output Voltage | 120 V AC |
| Output Receptacles | (3) NEMA 5-15R |
| Input Voltage | 120 V AC, 12 V DC compatible |
| Input Plug Type | NEMA 5-15P-HG (hospital-grade) |
| Input Cord Length | 10 ft (3.05 m) |
| Frequency Compatibility | 60 Hz |
| Battery Type | 36 Ah sealed lead-acid (AGM), user-replaceable |
| Battery Voltage | 12 V DC |
| Charger Type | 3-stage (10 A) advanced charger with equal charge time |
| User Interface | Remote User Interface (RUI) with AC power, battery charge and status LEDs |
| Controls | On/Off switch and alarm mute switch |
| Audible Alarm | Low battery warning |
| Cooling Method | Fan |
| Material | Metal (Power Supply and Battery Module) |
| Color | Gray |
| Mounting Compatibility | Retrofits most standard medical cart configurations |
| Certifications | UL 60601-1, IEC 60601-1, CAN/CSA-C22.2 No. 601.1, UL 1778 |
| Compliance | RoHS |
| Network Port | USB (for PowerAlert communication) |
| Shipping Dimensions (H × W × D) | 18.6 × 18.1 × 14.8 in (47.24 × 45.97 × 37.59 cm) |
| Shipping Weight | 71 lb (32.21 kg) |
| Warranty | 2-year power module / 6-month battery module limited warranty |
