Description

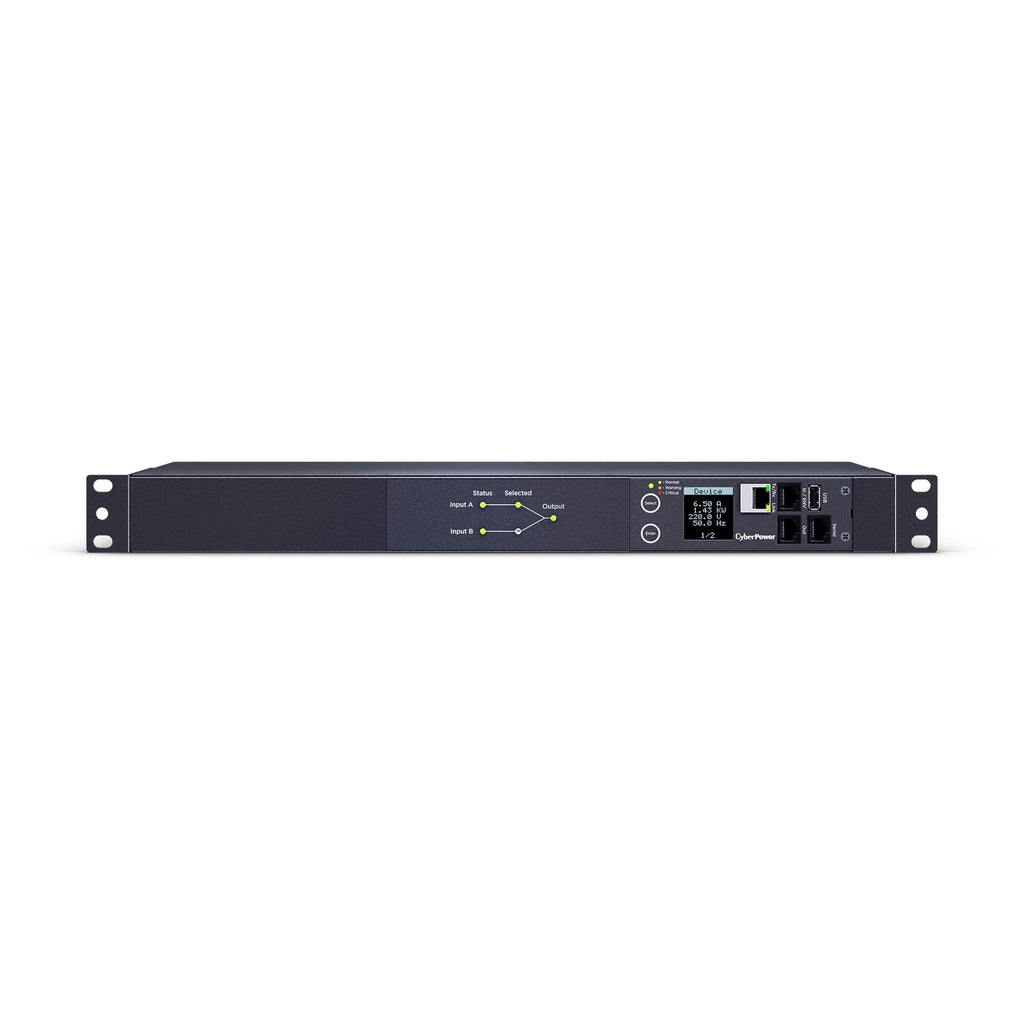

Ensure uninterrupted power delivery to critical IT and network equipment with the CyberPower PDU44006 Switched Automatic Transfer Switch (ATS) PDU. Designed for data centers, telecom installations, and network closets, this advanced rackmount unit provides redundant power for single-corded devices by automatically switching between two independent power sources.
If the primary power source becomes unstable or fails, the PDU transfers to the secondary source in under 10 milliseconds to maintain continuous operation. The unit also offers real-time remote monitoring, outlet-level switching, and network-based management through its integrated SNMP and web interface.

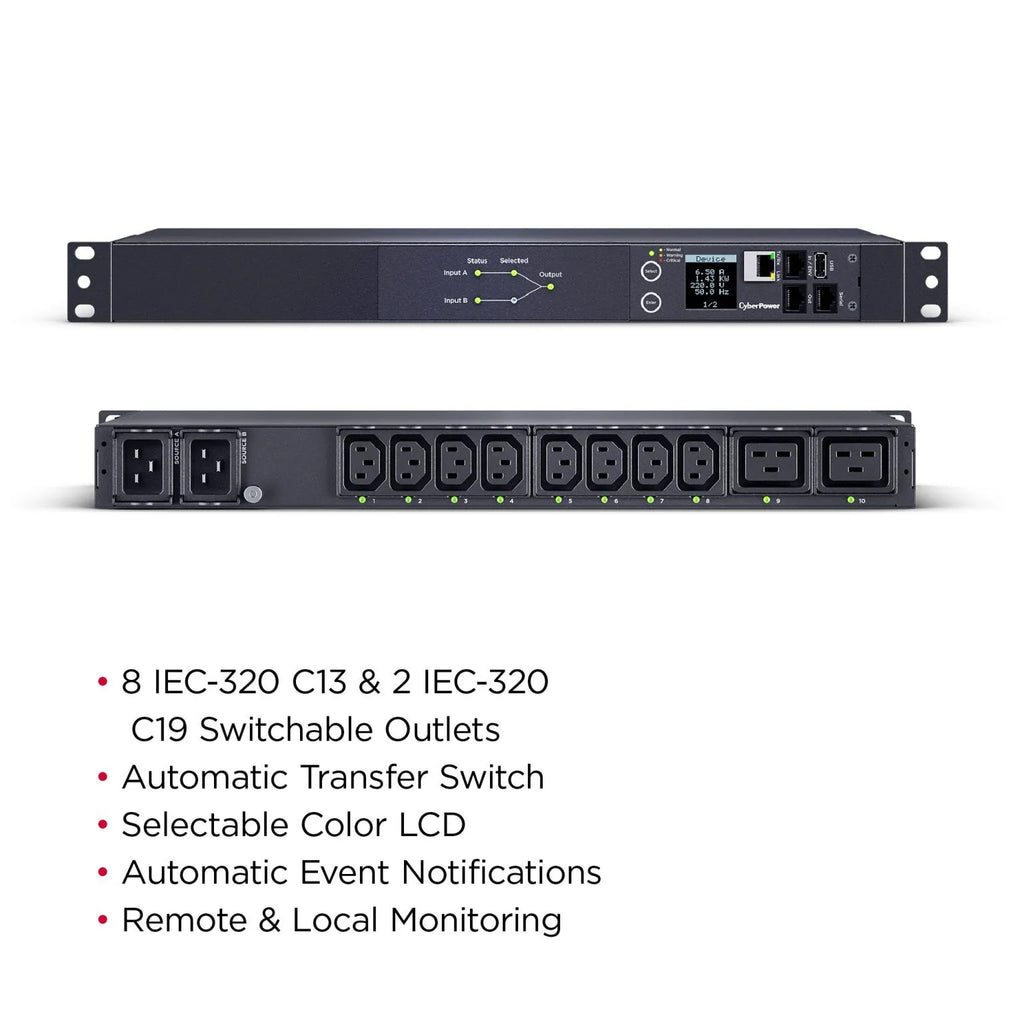

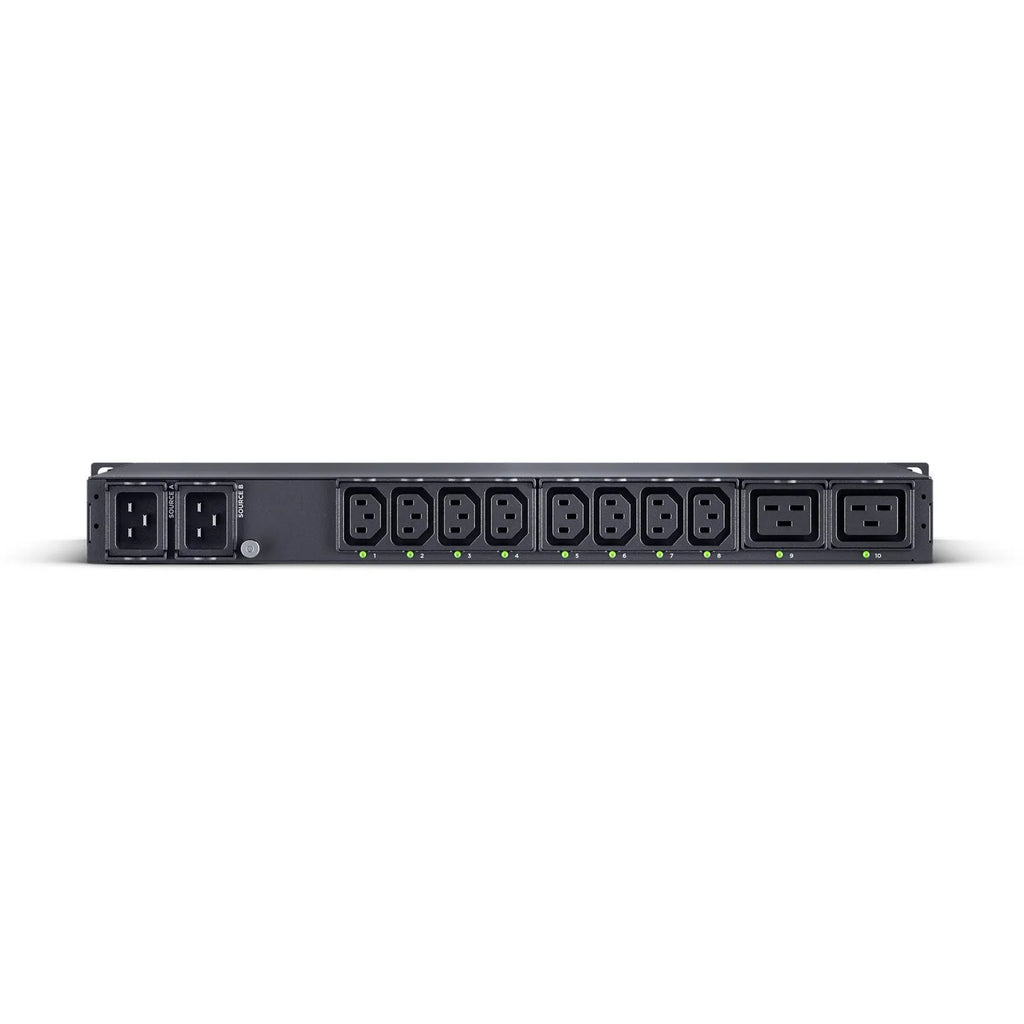

With 10 total outlets (8x IEC C13 and 2x IEC C19), dual NEMA L6-20P inputs, and a compact 1U form factor, the PDU44006 delivers enterprise-grade power redundancy, intelligent control, and dependable performance backed by a three-year limited warranty.
| Specification | Details |
|---|---|
| Brand | CyberPower |
| Model | Switched ATS PDU |
| SKU | PDU44006 |
| Input Voltage | 200–240 VAC |
| Output Voltage | 200–240 VAC |
| Maximum Input Current | 20A (Derated to 16A) |
| Input Plug Type | Dual NEMA L6-20P |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Total Outlets | 10 |
| Outlet Configuration | 8 × IEC C13, 2 × IEC C19 |
| Outlet Switching | Yes (Remote Managed) |
| Transfer Time | < 10 ms total |
| Source Failure Detection | 2–3 ms |
| Power Source Transfer | 2–7 ms |
| Form Factor | 1U Rackmount |
| Rack Height | 1U |
| Network Interface | SNMP / HTTP / HTTPS / SSH |
| Communication Ports | Ethernet (RJ45), Serial (RJ45) |
| LCD Display | Multifunction LCD |
| Color | Black |
| Construction | Metal Chassis |
| Dimensions (WxHxD) | 17.05 × 1.75 × 8.45 in |
| Weight | 8.30 lbs |
| Environmental Compliance | RoHS Compliant |
| Safety Certifications | UL62368, FCC Class A, cTUVus |
| Warranty | 3-Year Limited Warranty |
