Description

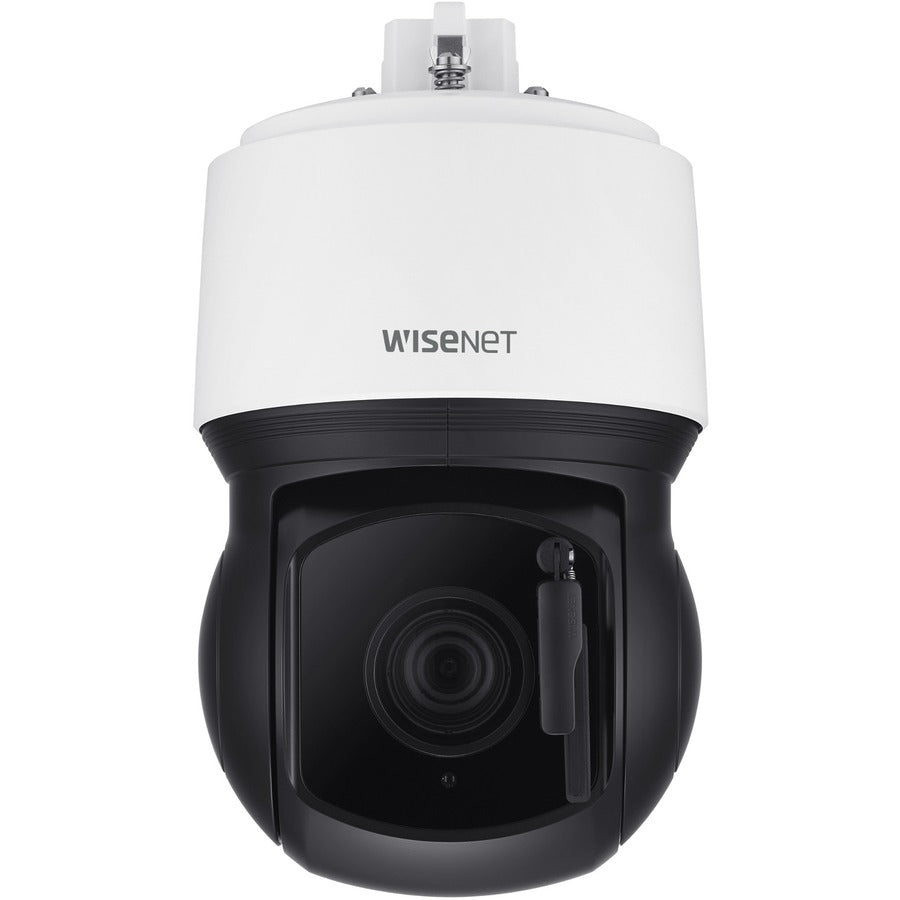

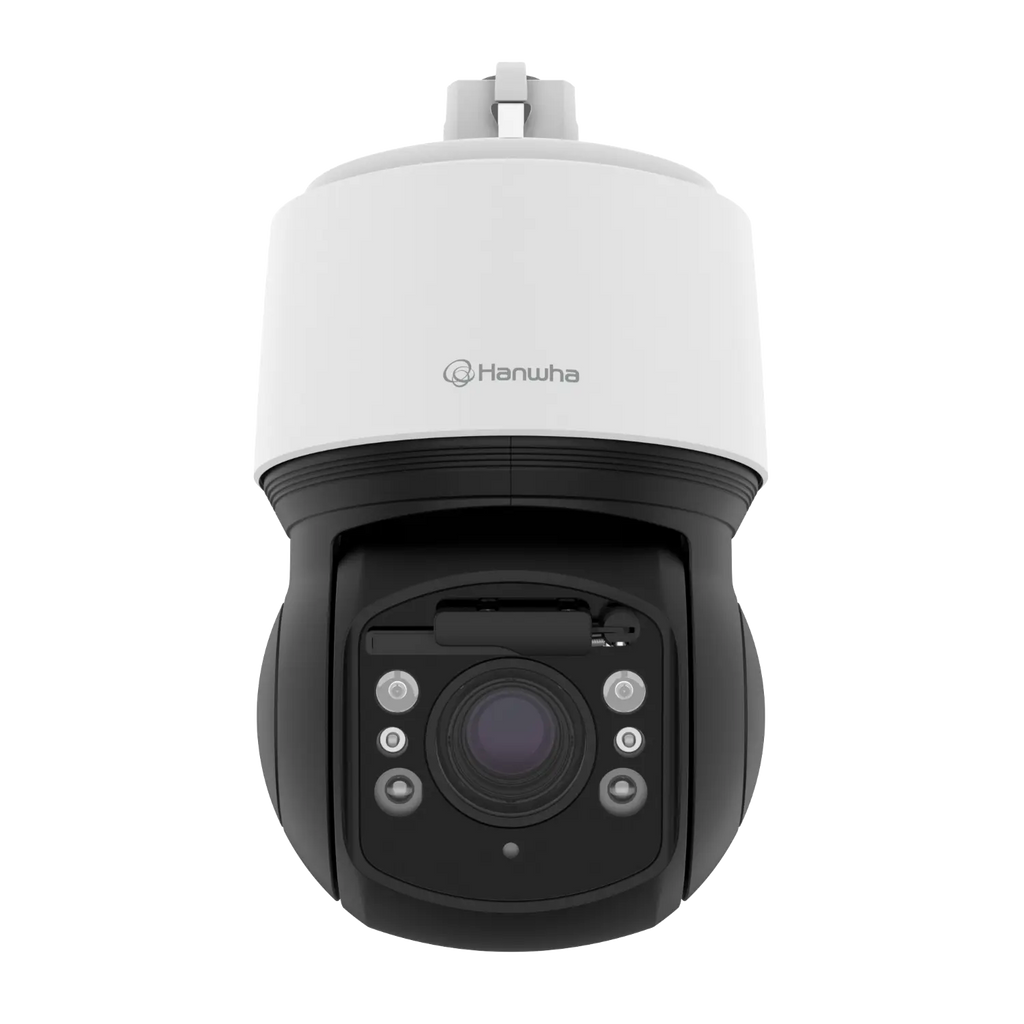

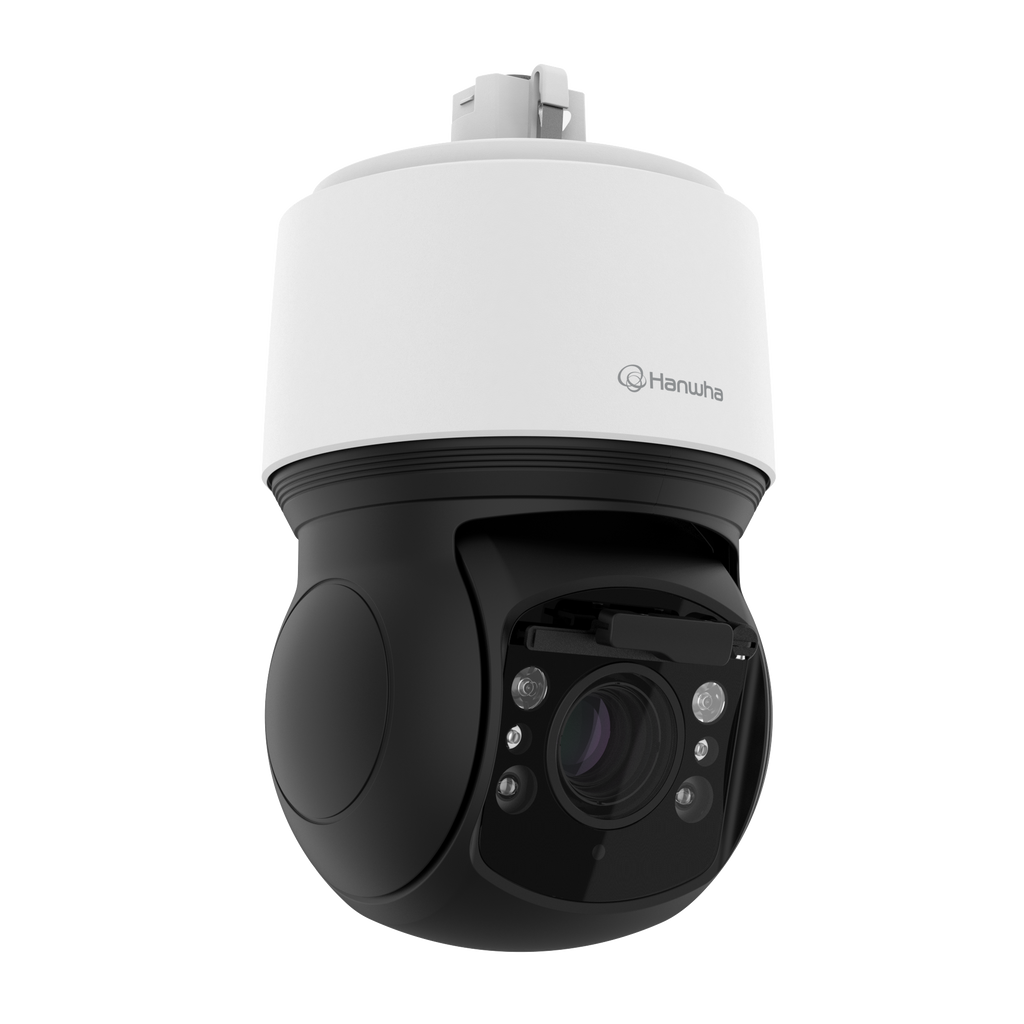

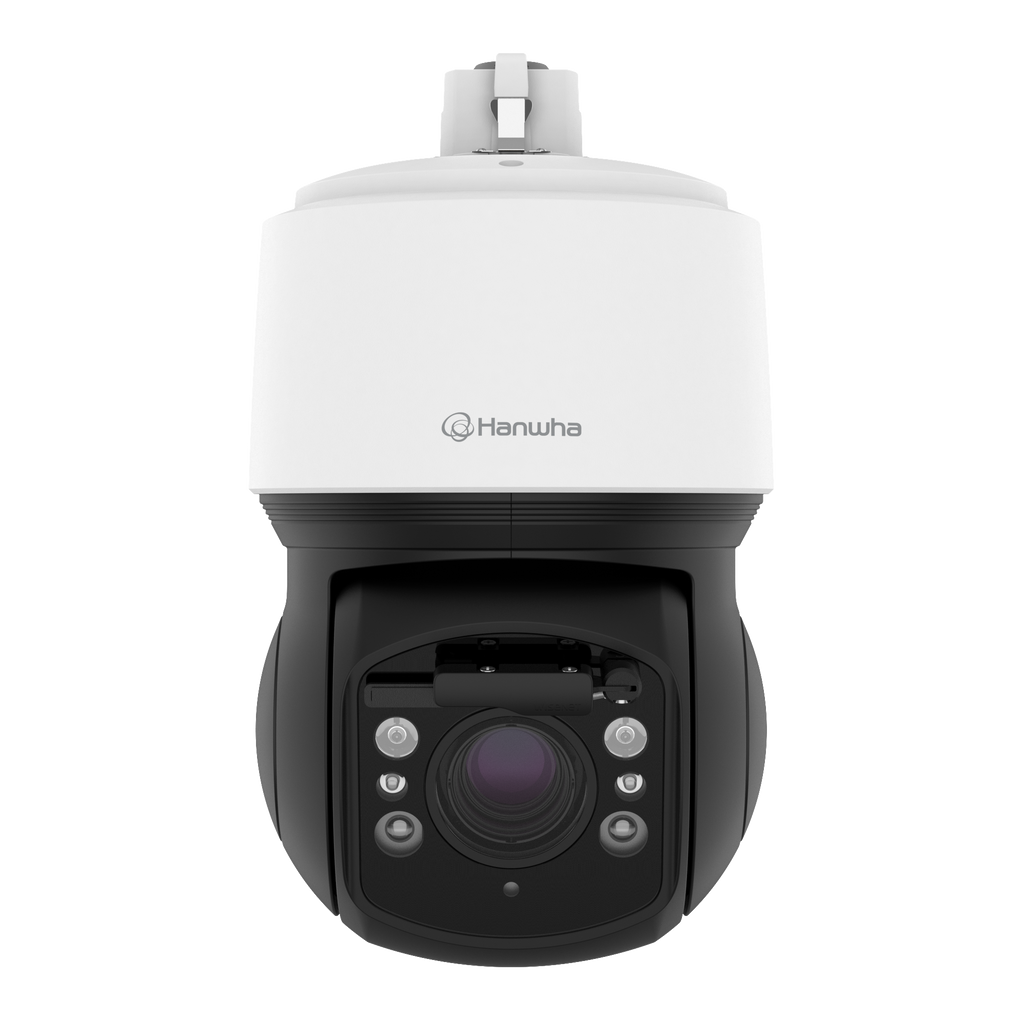

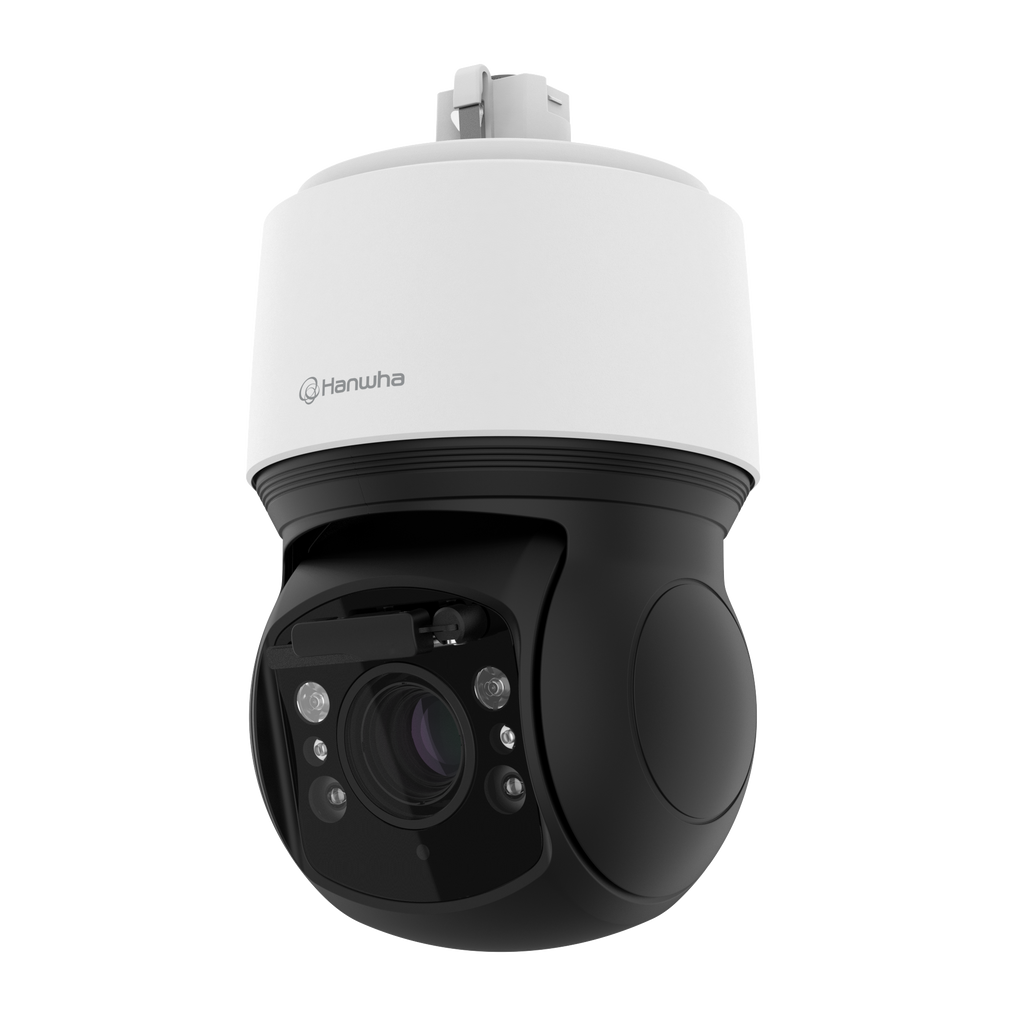

The Hanwha Vision XNP-6400RW is a rugged, high-performance 2MP PTZ camera engineered for demanding outdoor surveillance environments. Equipped with a powerful 40x optical zoom and a built-in wiper, it delivers clear, reliable imaging even in rain, dust, and harsh-weather conditions. Its long-range IR illumination reaches up to 200 meters, ensuring exceptional visibility day or night.
This PTZ model features advanced imaging technologies such as extreme WDR, built-in gyro-based image stabilization, and intelligent auto tracking for both people and vehicles. Designed for mission-critical applications, it meets IP66, IK10, and NEMA 4X standards and supports flexible installation with PTZ PLUS design, simplified cabling, and SFP support via injector.
Offering strong cybersecurity protection, dual SD card recording, edge analytics, and compatibility with multiple mounting accessories, the XNP-6400RW is ideal for perimeter security, city monitoring, airports, transportation, and large-scale surveillance deployments.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS, 2MP |
| Resolution Options | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Maximum Frame Rate | H.265/H.264: 60fps (60Hz) / 50fps (50Hz); MJPEG: 30fps |
| Minimum Illumination | Color: 0.05 Lux; B/W: 0.005 Lux (1/30sec, 30IRE) |
| Lens | 4.25–170mm, 40x optical zoom, 32x digital zoom |
| Aperture | F1.6 (wide), F4.95 (tele) |
| Field of View | H: 65.66°–1.88°, V: 39.4°–1.09° |
| Min. Object Distance | 3m |
| IR Illumination | 200m IR (Wise IR), 850nm |
| Pan Range & Speed | 360° endless; Preset: max 500°/s; Manual: 0.024–250°/s |
| Tilt Range & Speed | 90° to –20°; Preset: max 350°/s; Manual: 0.024–250°/s |
| PTZ Functions | Presets (300), Swing, Group (6), Trace, Tour, Auto Run, Schedule |
| Stabilization | DIS with built-in gyro sensor |
| WDR | 150 dB extreme WDR |
| Backlight / Enhancement | BLC, HLC, SSDR, Defog |
| Analytics | Motion detection, Tampering, Face detection, Fog detection, Sound classification, Shock detection, Virtual areas (Intrusion, Enter/Exit, Loitering), Virtual lines (Crossing) |
| Auto Tracking | Person/vehicle auto tracking, Target lock tracking |
| Audio I/O | Supported via optional I/O box |
| Alarm I/O | Supported via optional I/O box |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, HTTP/HTTPS, FTP/SFTP, SMTP, QoS, IGMP, SNMPv1/v2c/v3, SRTP, MQTT, NTCIP 1205, LLDP, CDP |
| Streaming | Up to 20 users (Unicast), Multicast supported; Up to 10 streaming profiles |
| Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream II |
| Edge Storage | Dual microSD/SDHC/SDXC slots, max 1TB total |
| Cybersecurity | Secure boot, encrypted firmware, TPM (HTPM), IEEE 802.1X, UL CAP certification |
| Operating Temperature | –40°C to +55°C |
| Humidity | 0–100% RH (condensing) |
| Power Input | PoE++ (IEEE 802.3bt Type 3, Class 6) |
| Power Consumption | Max 42W, Typical 20W |
| Durability Ratings | IP66, IK10, NEMA 4X, NEMA-TS 2 (2.2.8, 2.2.9) |
| Material / Color | Aluminum & PC; White/Black (RAL9003, RAL9005) |
| Dimensions | Ø184.9 × 318.8 mm |
| Weight | 5,400g |
