Description

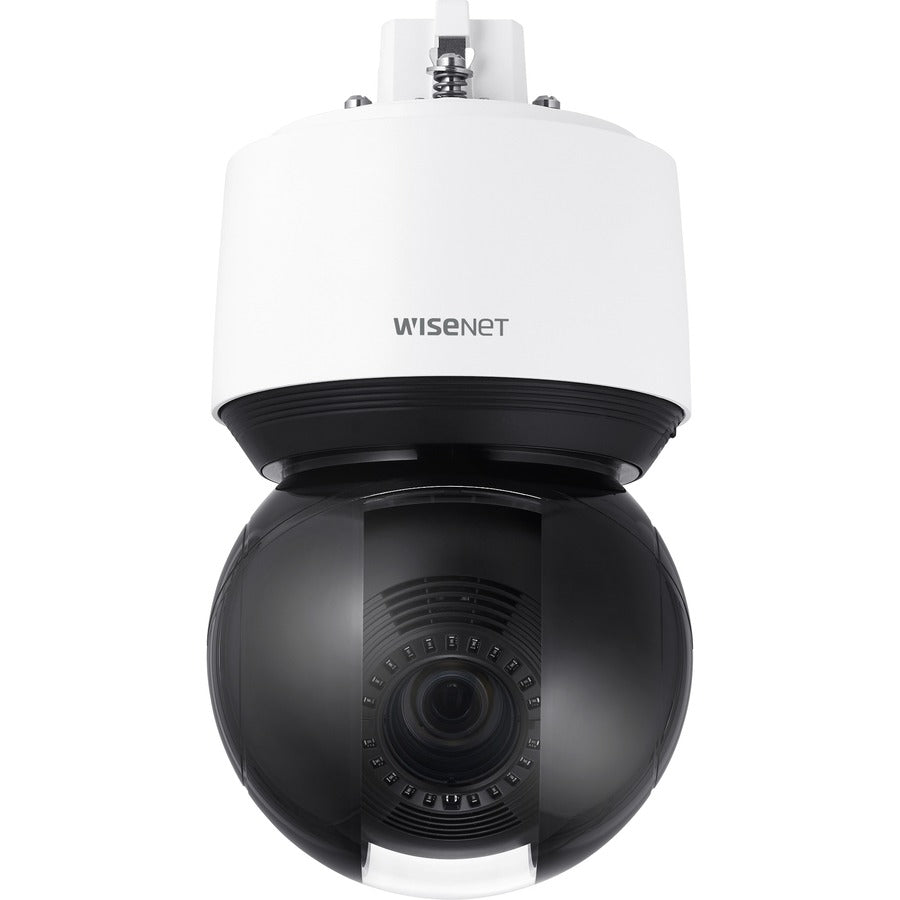

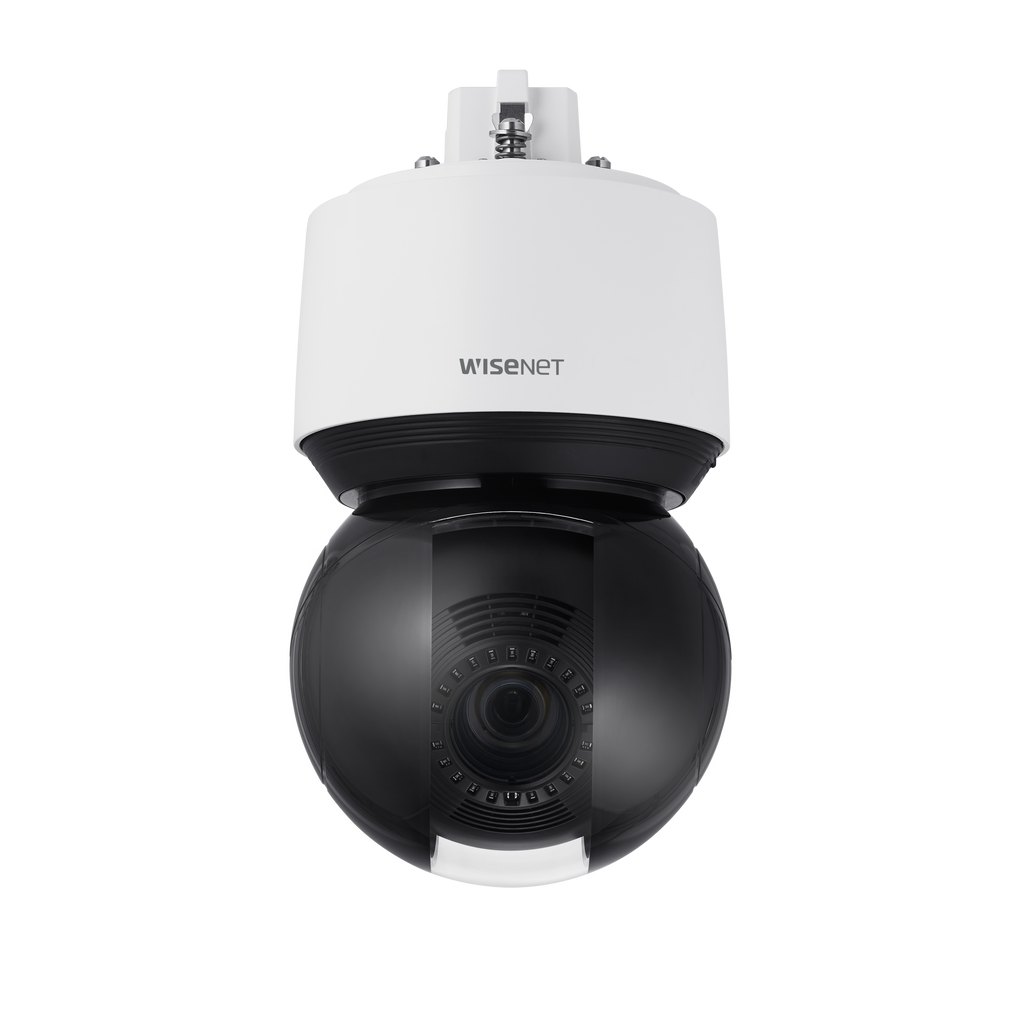

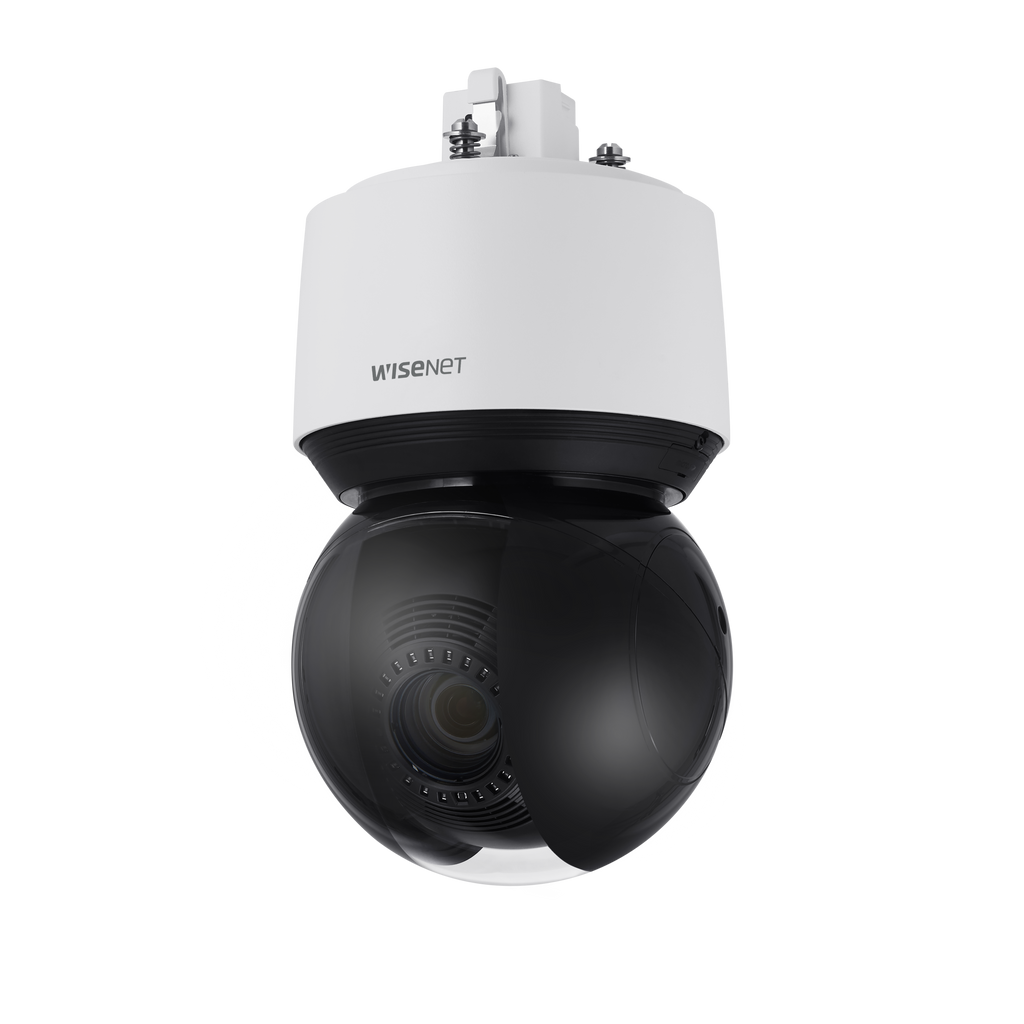

The Hanwha Vision XNP-9250 is a high-performance 4K 25x PTZ camera engineered for superior long-range monitoring and precision tracking. Designed for large outdoor environments and mission-critical surveillance, it delivers exceptional image clarity, advanced analytics, and rugged environmental protection.
Equipped with a 5–125mm 25x optical zoom lens and up to 800x total zoom, the XNP-9250 captures detailed images at extreme distances. Its low-light sensitivity, Day/Night ICR, and 120dB extreme WDR ensure reliable performance even in challenging lighting conditions. Built-in gyro-based digital image stabilization maintains stable video during wind or vibration.
The camera features AI-powered object auto tracking for persons and vehicles, target-lock tracking, advanced motion analytics, virtual lines and areas, tampering detection, fog detection, and more. Its durable IP66, IK10, and NEMA4X rating, combined with PTZ PLUS compact design, makes deployment easy while ensuring long-term reliability.
With secure boot, encrypted firmware, dual SD card storage, and compatibility with major VMS platforms, the XNP-9250 is ideal for airports, seaports, city monitoring, critical infrastructure, and large commercial facilities.
| Category | Specifications |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Resolution | Up to 4K (3840×2160) and multiple lower resolutions |
| Max Frame Rate | H.265/H.264: 30fps (60Hz) / 25fps (50Hz); MJPEG: Max 30fps (@8MP 5fps) |
| Minimum Illumination | Color: 0.1 Lux; B/W: 0.01 Lux (1/30s, 30IRE) |
| Lens | 5–125mm, 25x optical zoom, 32x digital zoom |
| Aperture | F1.6 (Wide) / F3.73 (Tele) |
| Field of View | H: 57.42°–2.71° / V: 33.54°–1.55° |
| PTZ Range | Pan: 360° Endless; Tilt: 90° to -20° |
| PTZ Speed | Pan: Up to 700°/sec (preset); Tilt: Up to 500°/sec (preset) |
| PTZ Functions | 300 presets, Swing, Group, Trace, Tour, Auto-Run, Schedule |
| Digital Image Stabilization | Yes (gyro-based) |
| WDR | 120dB extreme WDR |
| Noise Reduction | SSNR V |
| Privacy Masking | 32 zones (quadrangle type) |
| Motion Detection | 8 polygonal zones |
| Auto Tracking | Person/Vehicle auto-tracking; Target lock tracking |
| Analytics | Motion, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual Line, Virtual Area events |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream II |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTPS, DHCP, FTP/SFTP, SMTP, IGMP, SNMP, ARP, DNS, UPnP, MQTT, and more |
| Streaming | Up to 20 users (unicast), multicast supported, up to 10 profiles |
| Security Features | Secure boot, encrypted firmware, digest authentication, IEEE 802.1X, SRTP, HTPM secure storage |
| Edge Storage | Dual MicroSD/SDHC/SDXC (up to 1TB total) |
| Operating Temperature | -40°C to +55°C (-40°F to +131°F) |
| Ingress Protection | IP66, IK10, NEMA4X, NEMA-TS2 compliant |
| Power | PoE+ (IEEE802.3at Class 4); Max 25W (Typical 20W) |
| Dimensions | Ø158 × 293.3mm (6.22 × 11.55") |
| Weight | 3.2kg (7.05lb) |
| Color Options | White (RAL9003), Black (RAL9005) |
