Description

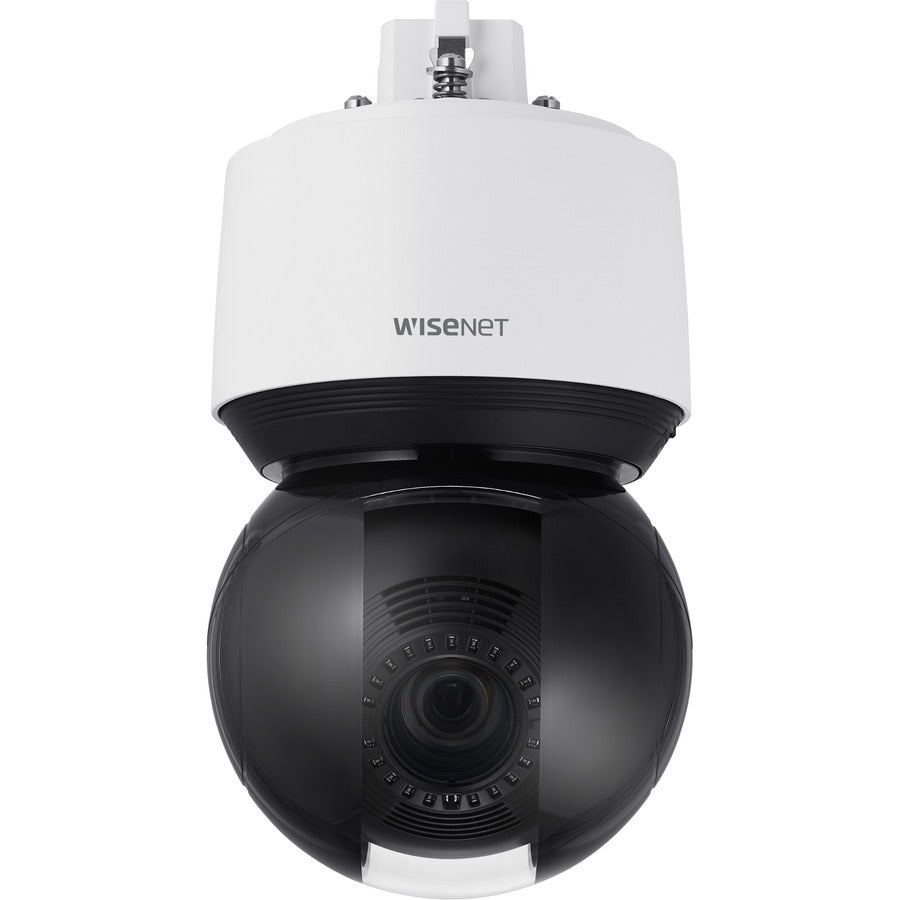

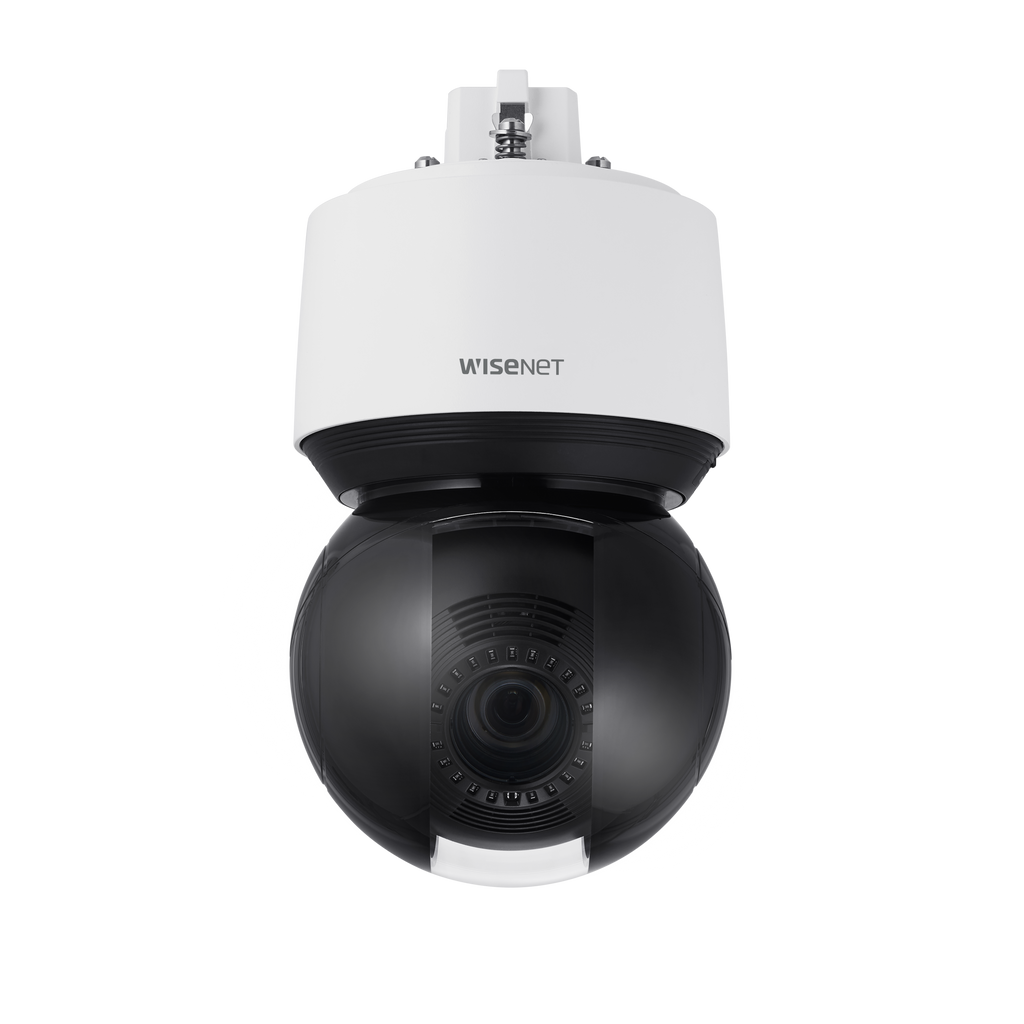

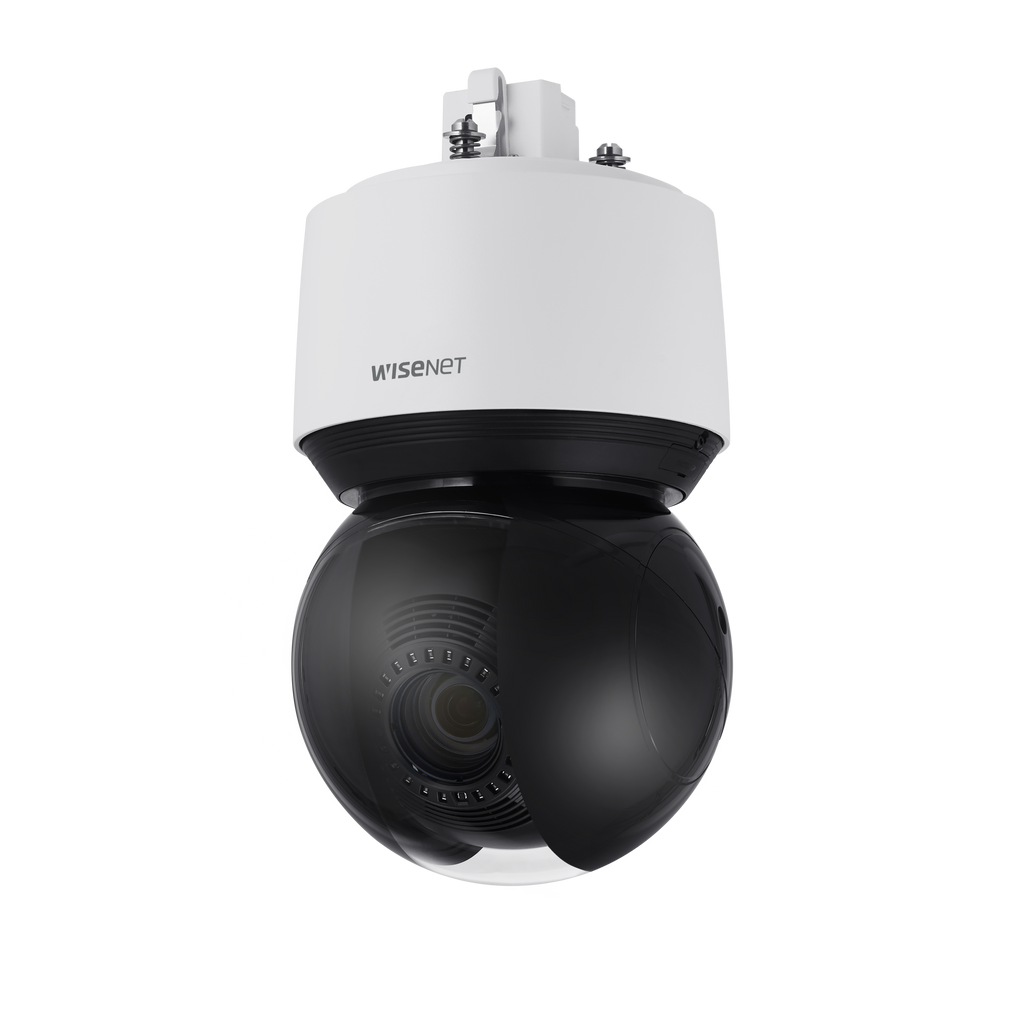

The Hanwha Vision XNP-9250R is a high-performance 4K PTZ camera engineered for demanding outdoor surveillance environments. Featuring a powerful 25x optical zoom lens (5–125mm) and Wise IR with up to 200m illumination, this camera delivers exceptional clarity across long distances, day or night.
Built with advanced imaging capabilities such as extreme WDR (120dB), DIS with a built-in gyro sensor, defog enhancement, and 0.1 Lux low-light performance, the XNP-9250R ensures reliable visibility in fast-changing lighting conditions.
Equipped with intelligent analytics—including object auto tracking (person/vehicle), target lock tracking, sound classification, and virtual line/area detection—the camera enhances situational awareness and reduces false alarms.
Designed for durability, the unit carries IP66, IK10, NEMA 4X, and NEMA-TS2 ratings, ensuring reliable operation in harsh climates from –40°C to +55°C. With secure firmware, TPM-based storage protection, and encrypted video streams, it adheres to modern cybersecurity standards.
Ideal for city surveillance, critical infrastructure, transportation hubs, and long-range perimeter monitoring, the XNP-9250R provides powerful zoom, rugged construction, and AI-driven intelligence in one compact PTZ platform.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS sensor; Up to 4K (3840×2160) resolution; Min. illumination: Color 0.1 Lux, B/W 0.01 Lux |
| Lens | 5–125mm, 25x optical zoom, 32x digital zoom; F1.6–F3.73; Horizontal FOV 57.42°–2.71° |
| IR Performance | Wise IR, up to 200m illumination, 850nm wavelength |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream II |
| Max Frame Rate | 30fps (H.265/H.264), MJPEG 30fps (8MP max 5fps) |
| Image Enhancements | Extreme WDR (120dB), SSNR V noise reduction, DIS (gyro-based), Defog, BLC/HLC/SSDR |
| Pan/Tilt | 360° endless pan; Tilt –20° to 90°; Preset speed: Pan 700°/s, Tilt 500°/s |
| PTZ Functions | 300 presets, Auto-run, Tour, Trace, Swing, Groups, Scheduling |
| Tracking & Analytics | Object auto tracking (person/vehicle), Target lock tracking, Motion detection, Tampering, Fog detection, Face detection, Sound classification, Virtual line/area detection |
| Audio (via optional I/O box) | Audio input/output supported |
| Events & Actions | File upload to FTP/SFTP/email, SD/NAS recording, PTZ preset handover, HTTP/HTTPS/TCP notifications, MQTT publish |
| Network | RJ-45 (10/100BASE-T), IPv4/IPv6, RTSP, HTTPS, SNMPv1/v2c/v3, QoS, UPnP, SRTP, MQTT |
| Security Features | Secure boot, encrypted firmware, signed firmware, IEEE 802.1X, TPM/HTPM, AES-256 SD partition encryption, UL CAP certification |
| Onboard Storage | Dual microSD slots (Up to 1TB total) |
| Power | PoE++ (IEEE 802.3bt Type 3 Class 6); Max 40W, typical 20W |
| Operating Conditions | –40°C to +55°C, 0–100% RH (condensing); NEMA-TS2 certified |
| Construction | Aluminum & polycarbonate housing; Hard-coated dome; IP66 / IK10 / NEMA 4X |
| Dimensions & Weight | Ø158 × 293.3mm; 3.2kg (7.05 lb) |
| DORI Range (EN62676-4) | Detect: 140.2m (wide) / 3246.9m (tele); Identify: 14.0m (wide) / 324.7m (tele) |
