Description

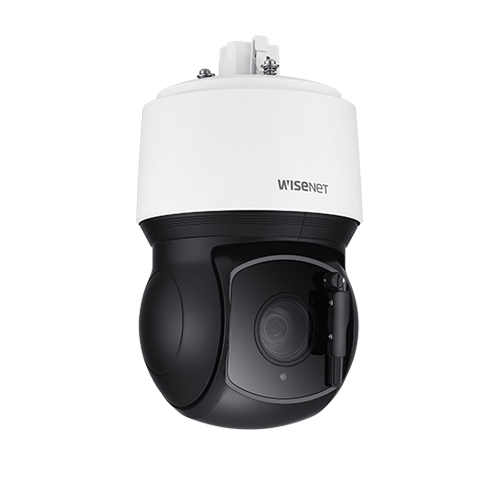

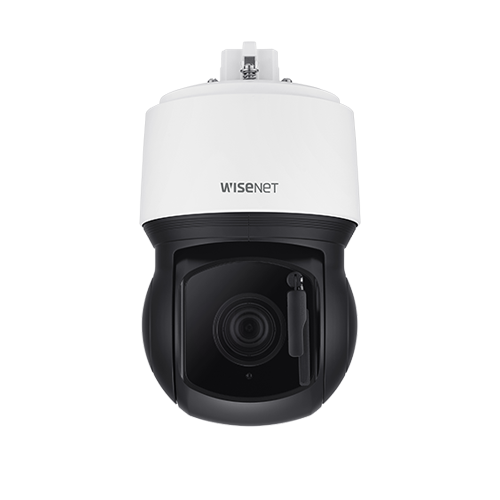

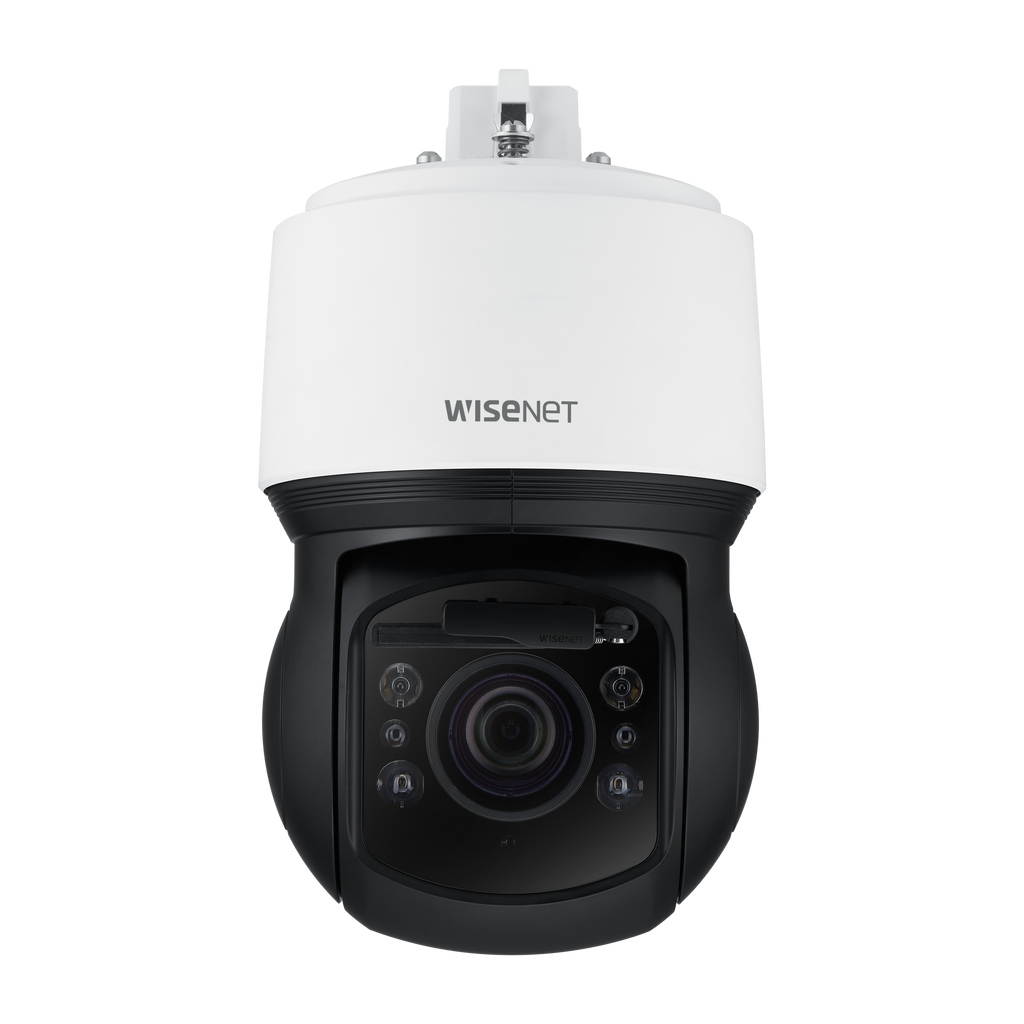

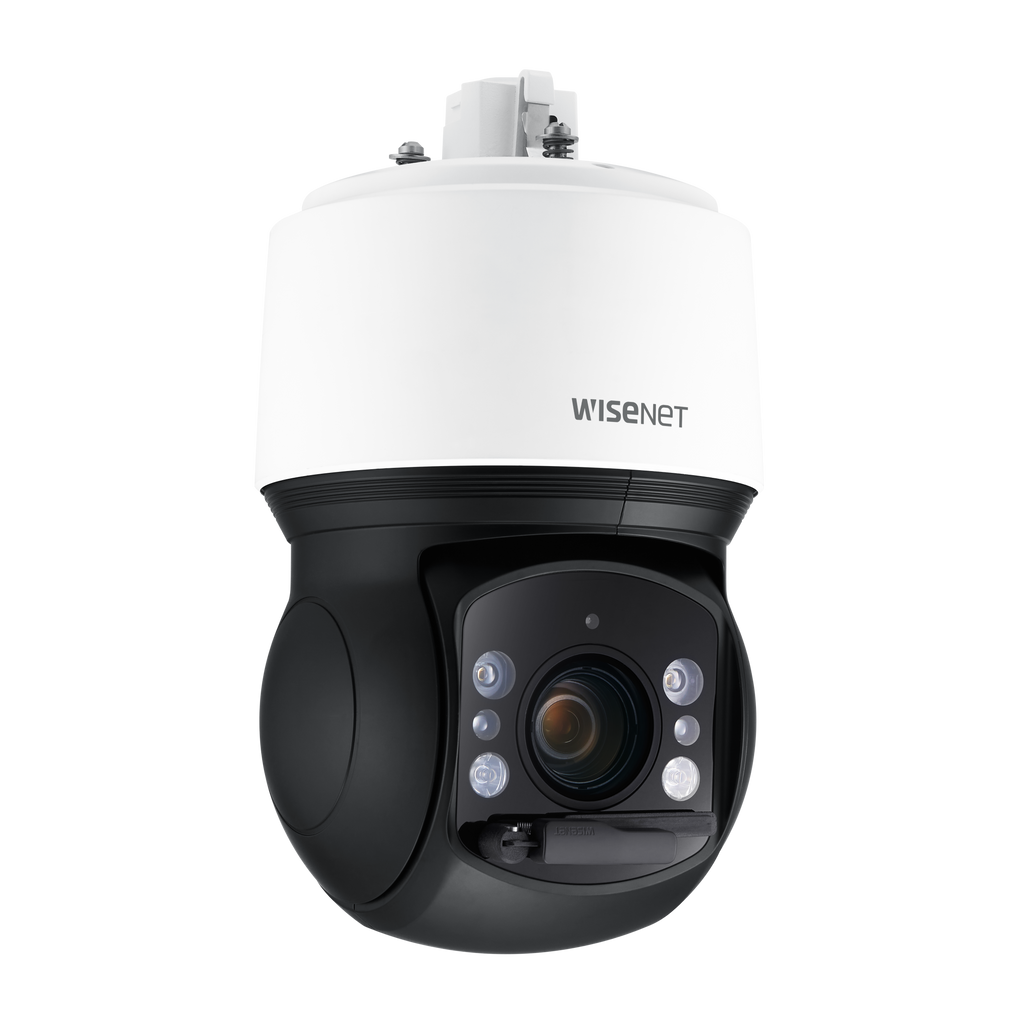

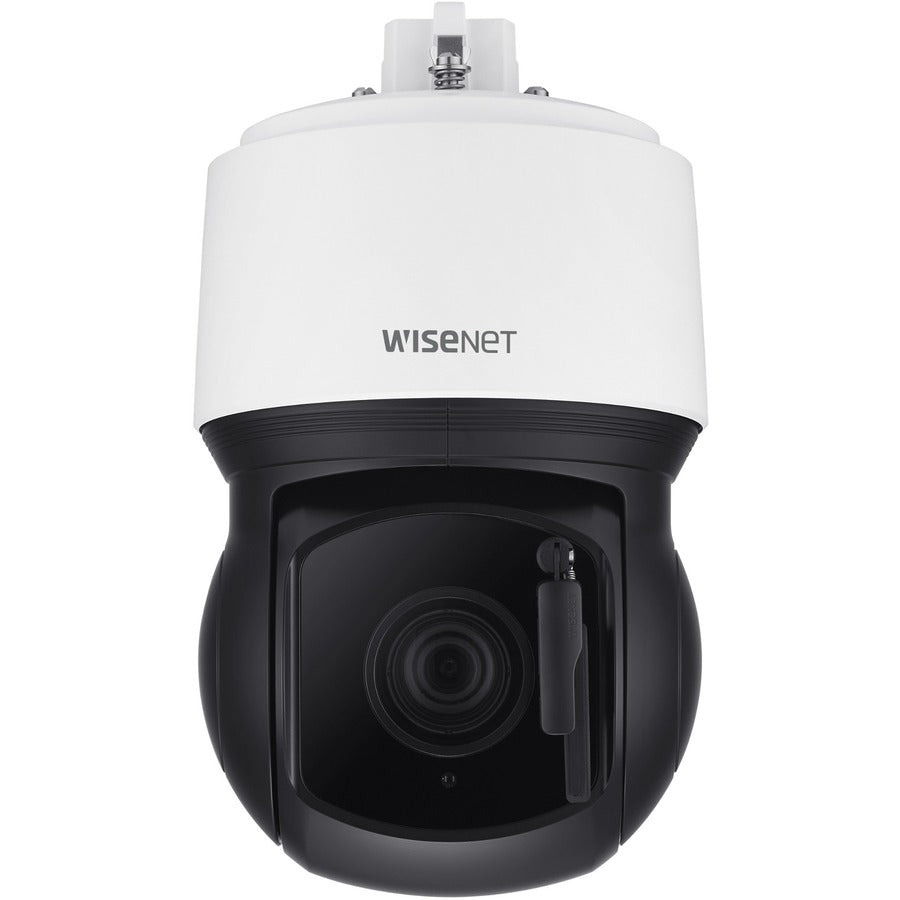

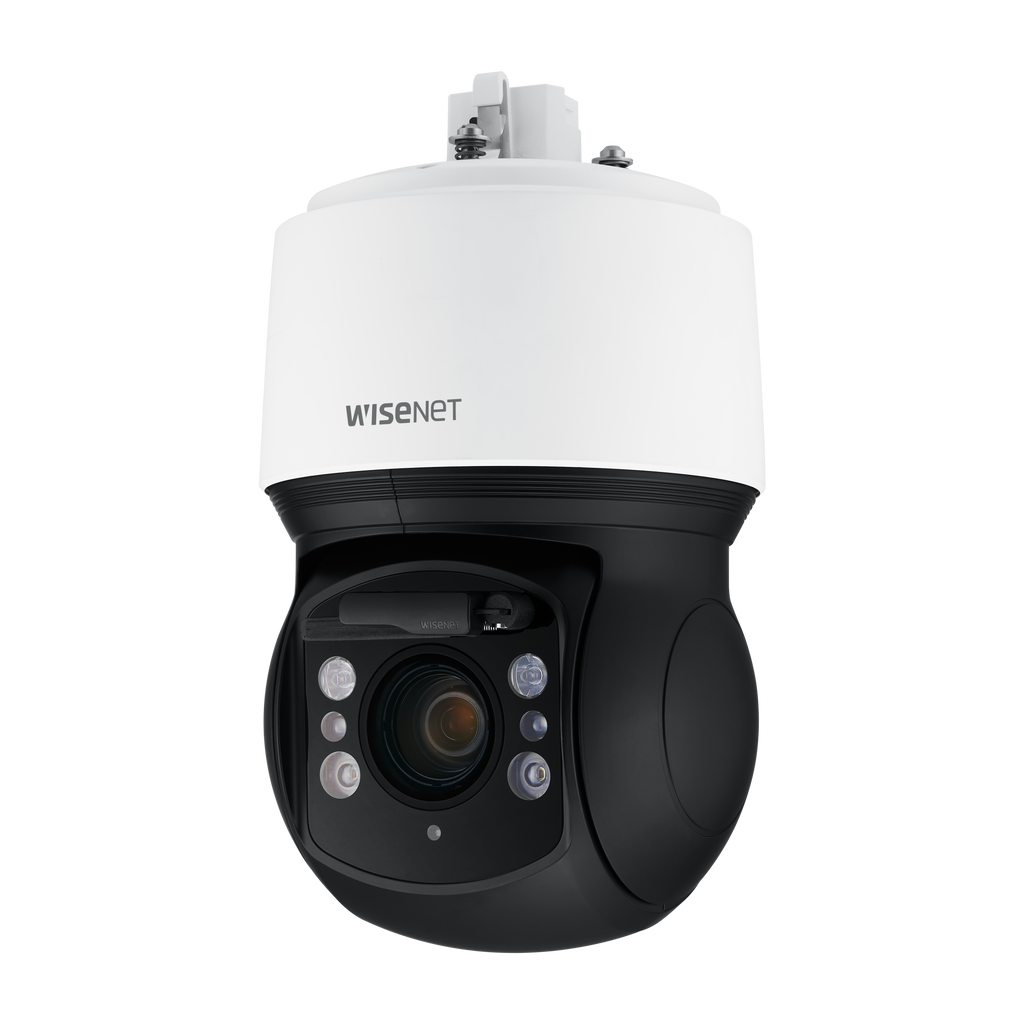

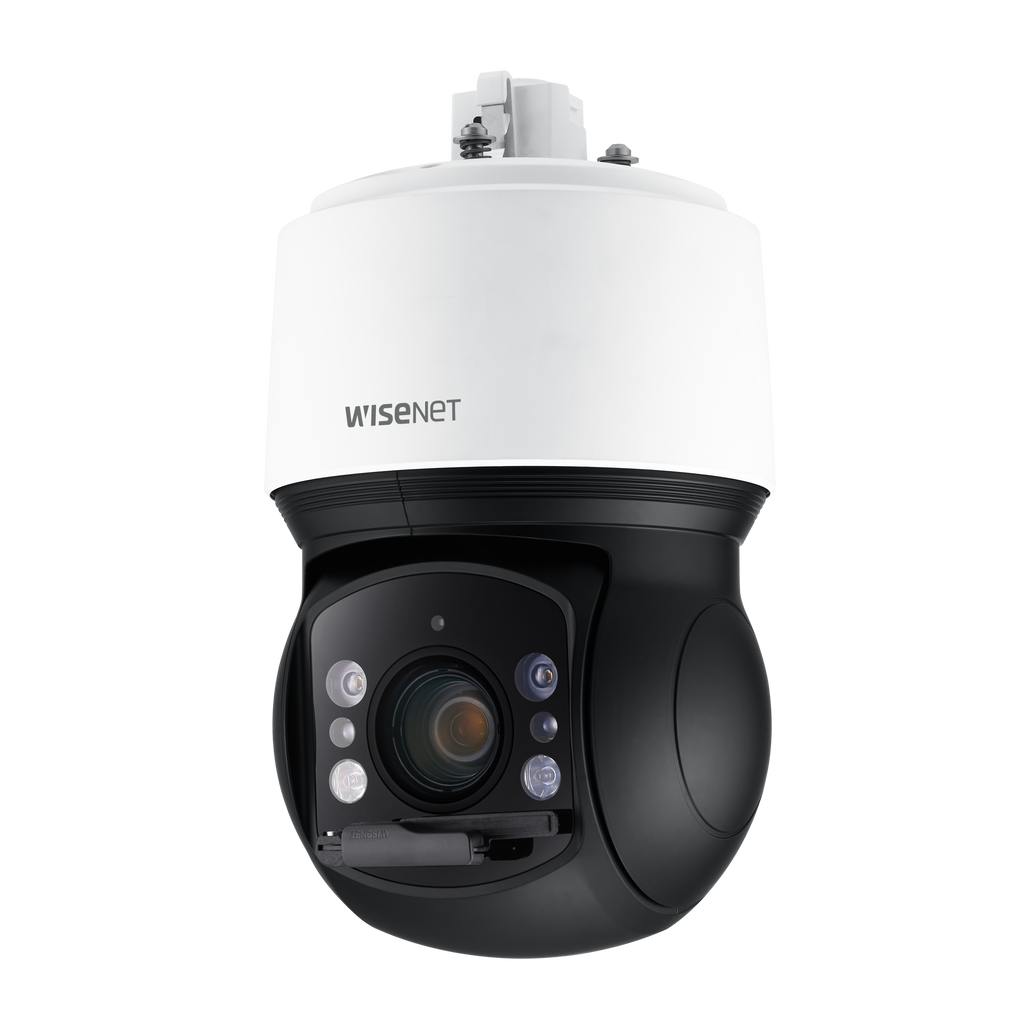

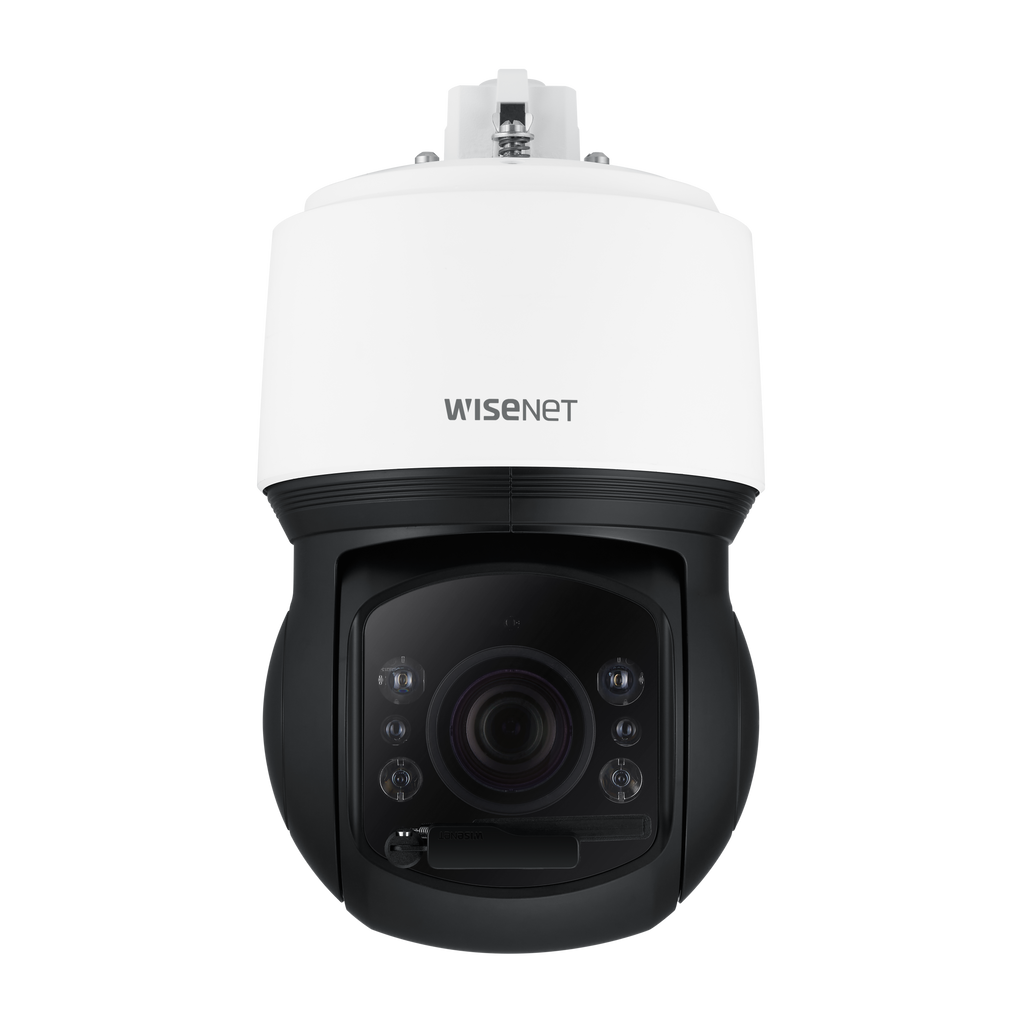

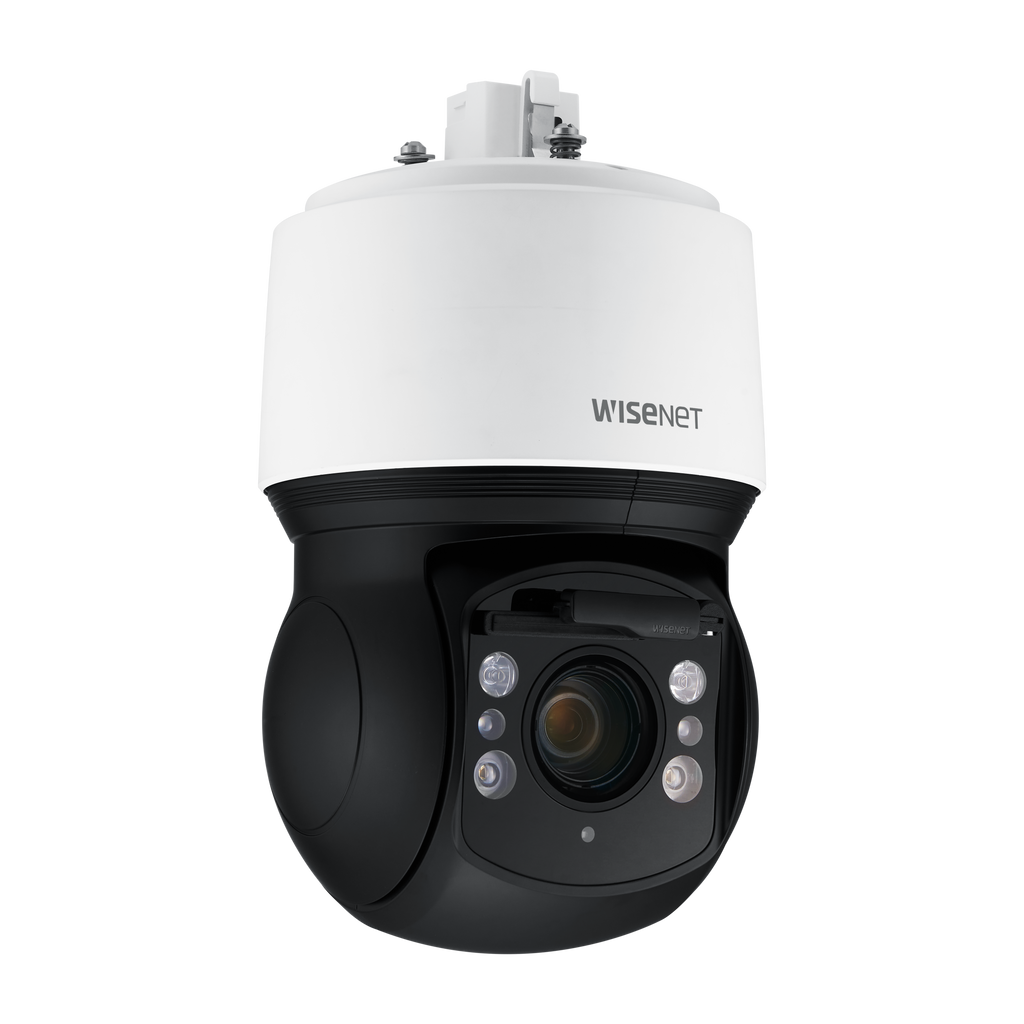

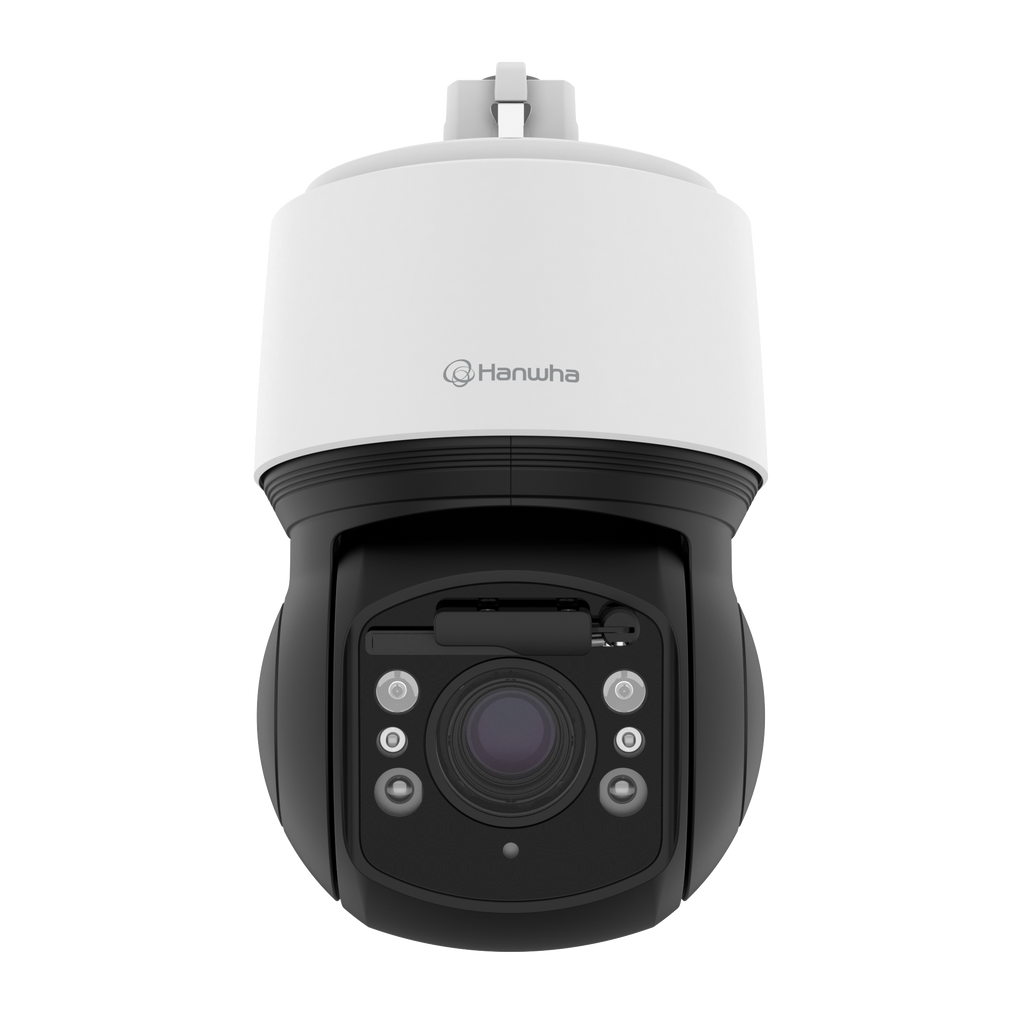

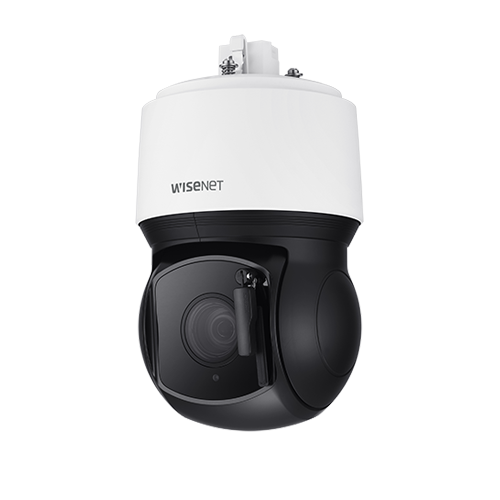

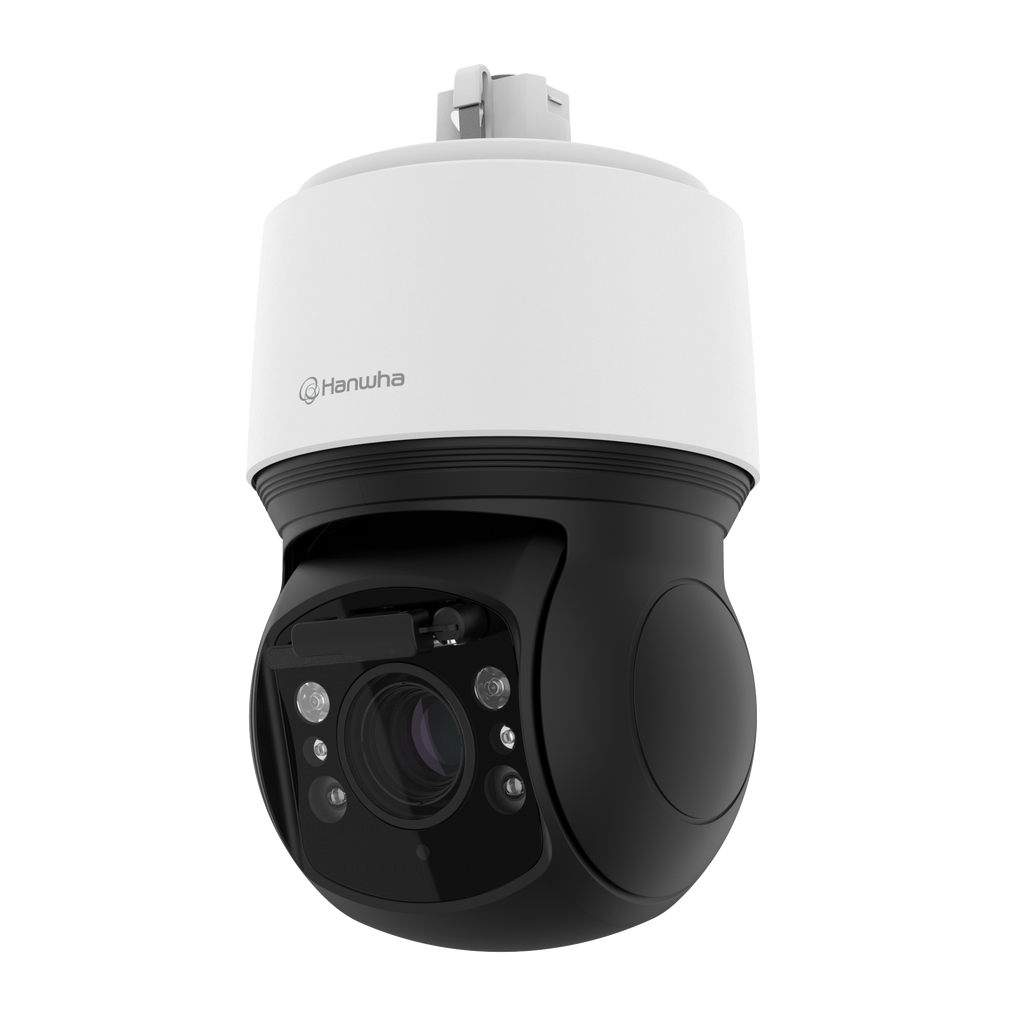

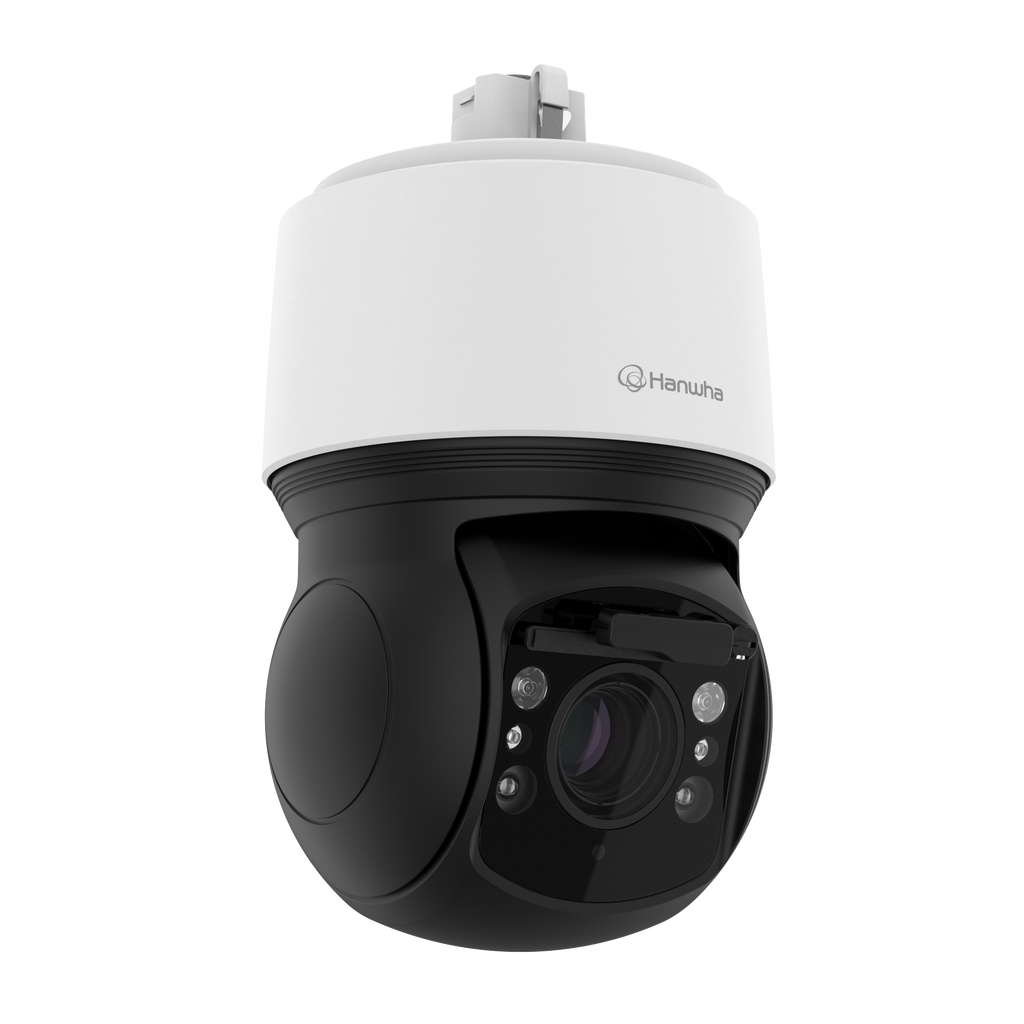

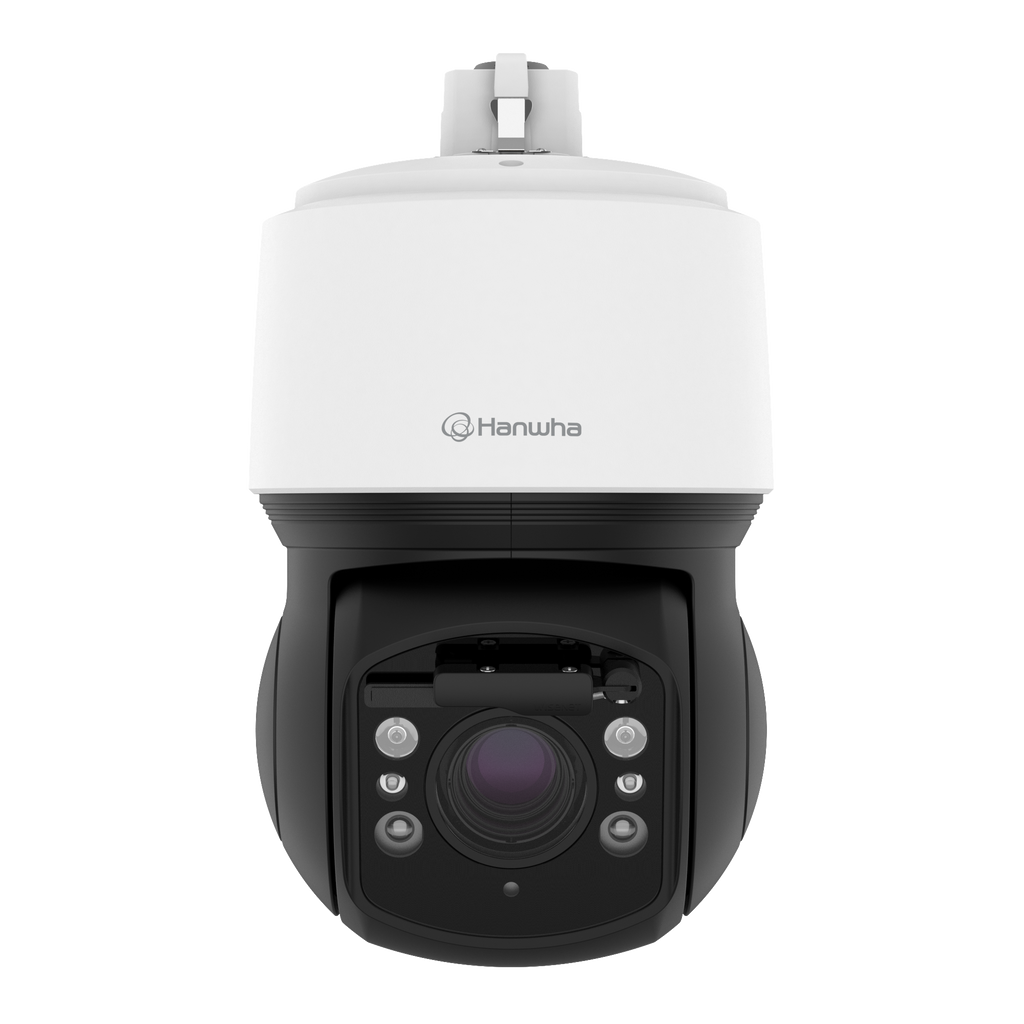

The Hanwha Vision XNP-9300RW is a high-performance 4K PTZ camera engineered for critical surveillance environments that demand exceptional clarity, long-range visibility, and reliable operation in harsh conditions. Featuring a powerful 30x optical zoom (5–150mm) and an impressive 200m IR viewable distance, this PTZ delivers detailed monitoring both day and night.
Built with PTZ PLUS design, the camera is lighter, more compact, and crafted for simplified installation with streamlined cabling. Its rugged housing meets IP66, IK10, NEMA4X, and NEMA-TS2 standards, ensuring dependable use in outdoor, high-vibration, or extreme-temperature deployments.
Equipped with advanced AI-enhanced analytics, including object auto-tracking (person/vehicle), target lock tracking, tampering detection, virtual lines, intrusion detection, sound classification, and more, the XNP-9300RW provides accurate event detection and operational efficiency.
Support for H.265/H.264/MJPEG, WiseStream II, ONVIF S/G/T compliance, and secure cybersecurity features ensures seamless integration and protected performance in modern video systems.
Whether used for city surveillance, airports, ports, traffic monitoring, industrial facilities, or large outdoor areas, the XNP-9300RW delivers exceptional visibility, precision control, and ultra-reliable operation.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS sensor; Max 4K (3840×2160) resolution |
| Framerate | H.265/H.264: 30fps (60Hz) / 25fps (50Hz); MJPEG: 30fps (@8MP max 5fps) |
| Min. Illumination | Color: 0.1 Lux; B/W: 0.01 Lux (1/30s, 30IRE) |
| Lens | 5–150mm, 30x optical zoom, 32x digital zoom, F1.6 (wide)–F4.56 (tele) |
| Field of View | Horizontal: 57.42°–2.19°; Vertical: 33.54°–1.25° |
| Min. Object Distance | 3m (9.84 ft) |
| IR Illumination | WiseIR, up to 200m (850nm) |
| PTZ Range | Pan: 360° endless; Tilt: 90° to –20° |
| PTZ Speed | Pan: Preset max 500°/s; Tilt: Preset max 350°/s; Manual: 0.024°–250°/s |
| PTZ Accuracy | ±0.1° preset accuracy |
| PTZ Functions | 300 presets, Swing, Group (6), Trace, Tour, Auto-Run, Schedule |
| Day/Night | Auto (ICR) |
| WDR | 120 dB |
| Image Enhancements | BLC, HLC, SSDR, SSNR V, Defog, DIS (gyro-based), Flip & Mirror |
| Privacy Masking | 32 zones (4-point quadrangle) |
| Analytics (AI-enhanced) | Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area & line analytics, Object auto-tracking (person/vehicle), Target lock tracking |
| Audio | In/Out via optional I/O box |
| Networking | RJ-45 (10/100BASE-T); IPv4/IPv6; ONVIF S/G/T; SUNAPI; MQTT; SRTP |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream II |
| Streaming | Up to 10 profiles; Unicast up to 20 users; Multicast supported |
| Storage | Dual MicroSD/SDHC/SDXC slots (max 1TB total) |
| Cybersecurity | Secure boot, TPM/HTPM, encrypted firmware, 802.1X, HTTPS/WSS |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F); withstands +74°C per NEMA-TS2 |
| Operating Humidity | 0–100% RH (condensing) |
| Power | PoE++ (IEEE 802.3bt Type 3, Class 6); Max consumption 42W |
| Construction | Aluminum + PC; IP66, IK10, NEMA4X |
| Color Options | White, Black (RAL9003 / RAL9005) |
| Dimensions | Ø184.9 × 318.8 mm (7.28 × 12.55 in) |
| Weight | 5.4 kg (11.9 lb) |
