Description

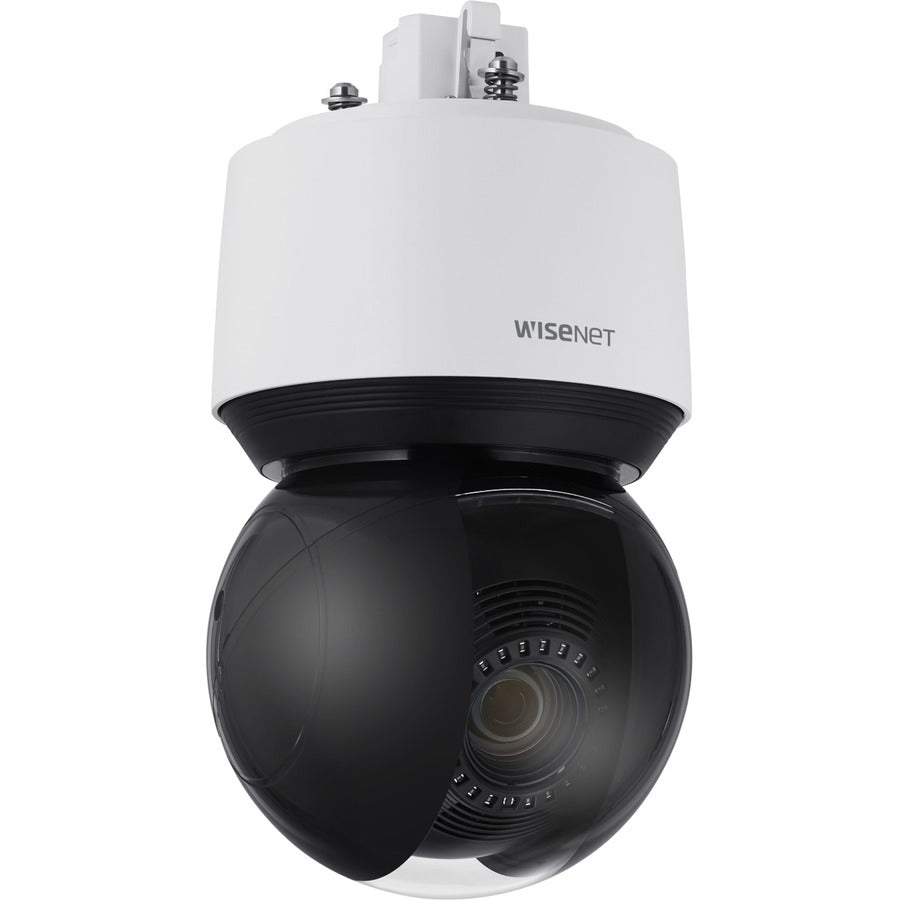

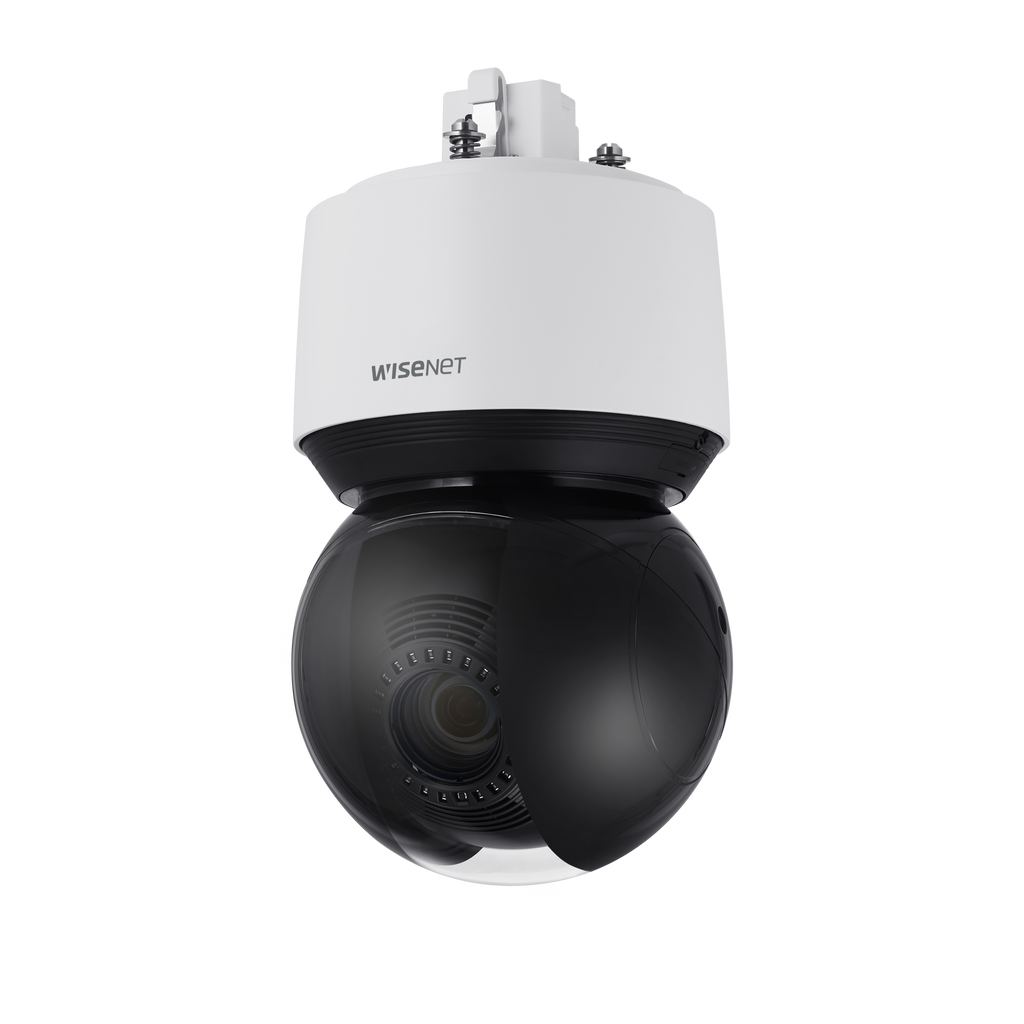

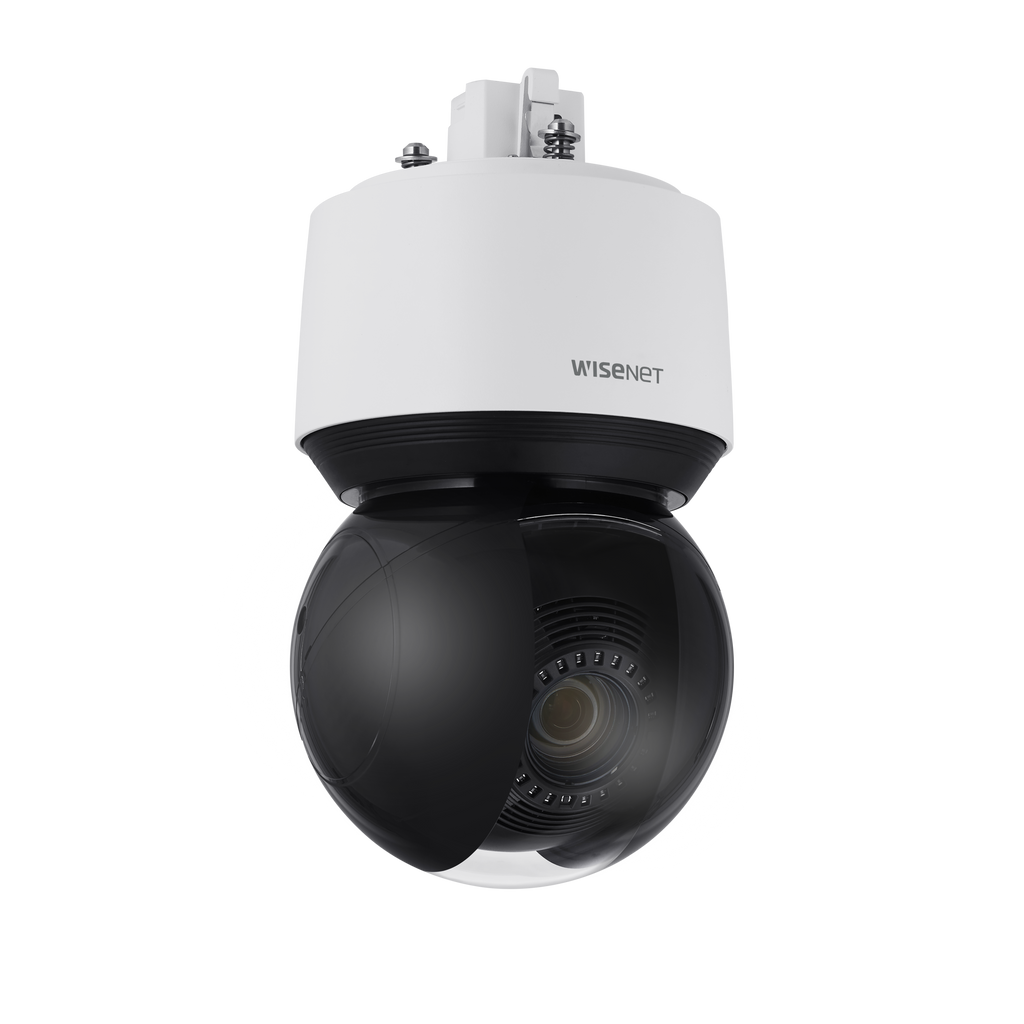

The Hanwha Vision XNP-8250 is a high-performance 6MP PTZ camera engineered for demanding security environments that require precision, long-range visibility, and advanced analytics. Equipped with a powerful 25x optical zoom (5–125mm), the XNP-8250 captures critical detail across expansive areas while maintaining exceptional image clarity.
Designed with Day & Night ICR, 120 dB extreme WDR, and gyro-based digital image stabilization, the camera delivers stable and accurate footage even in harsh lighting or windy outdoor conditions. Its advanced analytics suite includes object auto-tracking, target lock, motion detection, tampering detection, virtual line and area analytics, and sound classification—enabling proactive monitoring and faster incident response.
Built for rugged environments, the XNP-8250 features IP66, IK10, NEMA4X, and NEMA-TS 2 ratings, ensuring reliable operation in severe weather, high-vibration areas, and transportation applications. With support for H.265/H.264, WiseStream II, dual SD card slots, secure boot, encrypted storage, and ONVIF compliance, it is optimized for both security and cybersecurity requirements.
This PTZ model combines long-range performance, robust durability, and cutting-edge analytics—ideal for city surveillance, airports, campuses, critical infrastructure, and perimeter protection.
| Category | Specification |
|---|---|
| Imaging | 6MP CMOS, max resolution 3328×1872 |
| Lens | 5–125mm, 25x optical zoom, 32x digital zoom, F1.6–F3.73 |
| Field of View | H: 57.42°–2.71°, V: 33.54°–1.55° |
| Min. Illumination | Color: 0.1 lux (1/30 sec, 30IRE), B/W: 0.01 lux |
| Video Compression | H.265/H.264 (Main/High/Baseline), MJPEG |
| Framerate | 30fps (H.265/H.264), 5fps max at 6MP MJPEG |
| WDR | 120 dB extreme WDR |
| Image Enhancements | SSNR V noise reduction, defog, DIS with gyro |
| PTZ Range | Pan 360° endless; Tilt +90° to -20° |
| PTZ Speed | Pan: up to 700°/sec; Tilt: up to 500°/sec |
| Preset Functions | 300 presets, swing, group, trace, tour, autorun, schedule |
| Auto-Tracking | Person/Vehicle auto tracking, Target lock |
| Analytics | Motion, tampering, fog detection, face detection, sound classification, shock detection, intrusion, loitering, appear/disappear, crossing/direction |
| Networking | IPv4/IPv6, HTTPS, SSL/TLS, SNMPv1/v2c/v3, QoS, ONVIF S/G/T, SUNAPI, MQTT |
| Smart Codec | WiseStream II |
| Security Features | Secure boot, encrypted firmware, IEEE 802.1X, SRTP, HTPM secure module, AES-256 SD encryption |
| Edge Storage | Dual microSD slots, up to 1TB (2 × 512GB) |
| Operating Conditions | -40°C to +55°C, 0–100% RH (condensing), NEMA-TS 2 compliant |
| Power | PoE+ (IEEE 802.3at), Max 25W |
| Mechanical | Aluminum, hard-coated dome; White/Black; Dimensions: Ø158 × 293.3 mm; Weight: 3.2 kg |
| DORI Range (Wide/Tele) | Detect: 121.5m / 2813.9m; Observe: 48.6m / 1125.6m; Recognize: 24.3m / 562.8m; Identify: 12.2m / 281.4m |
