Description

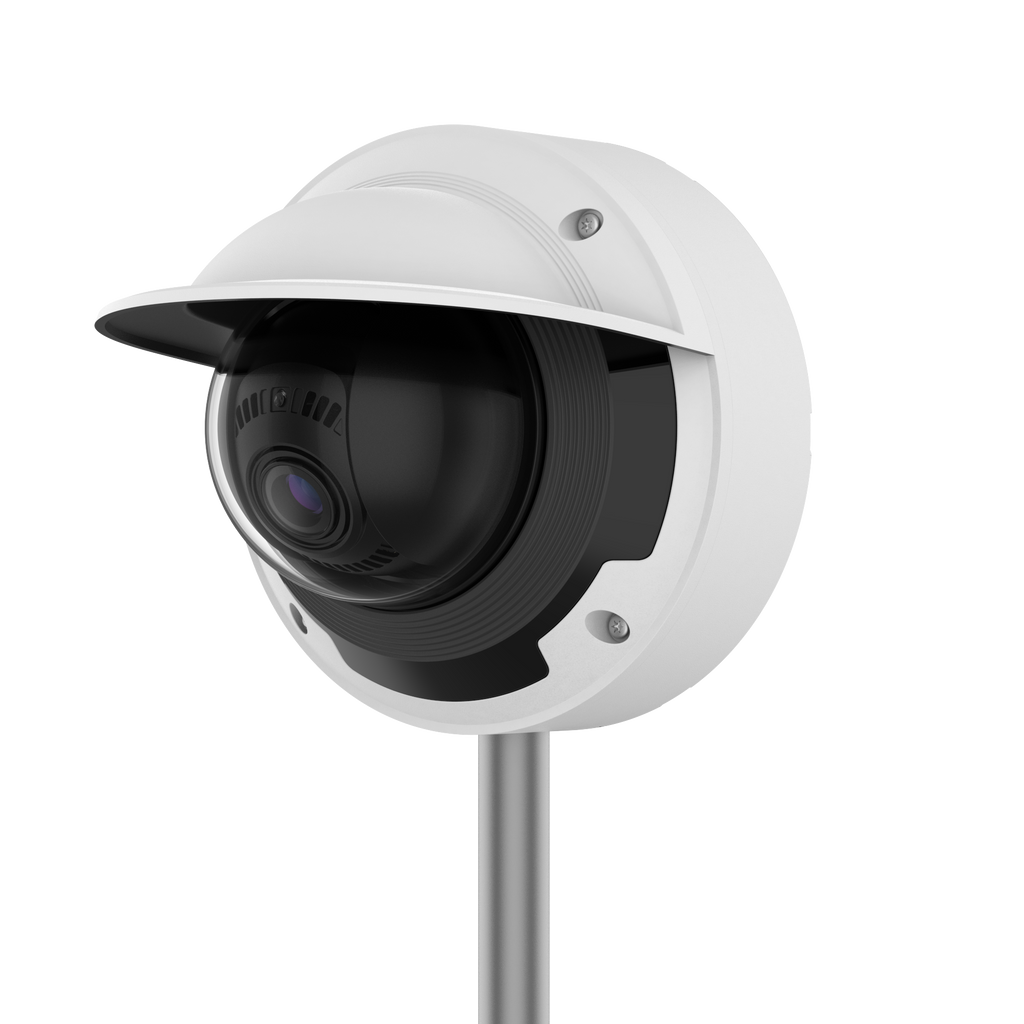

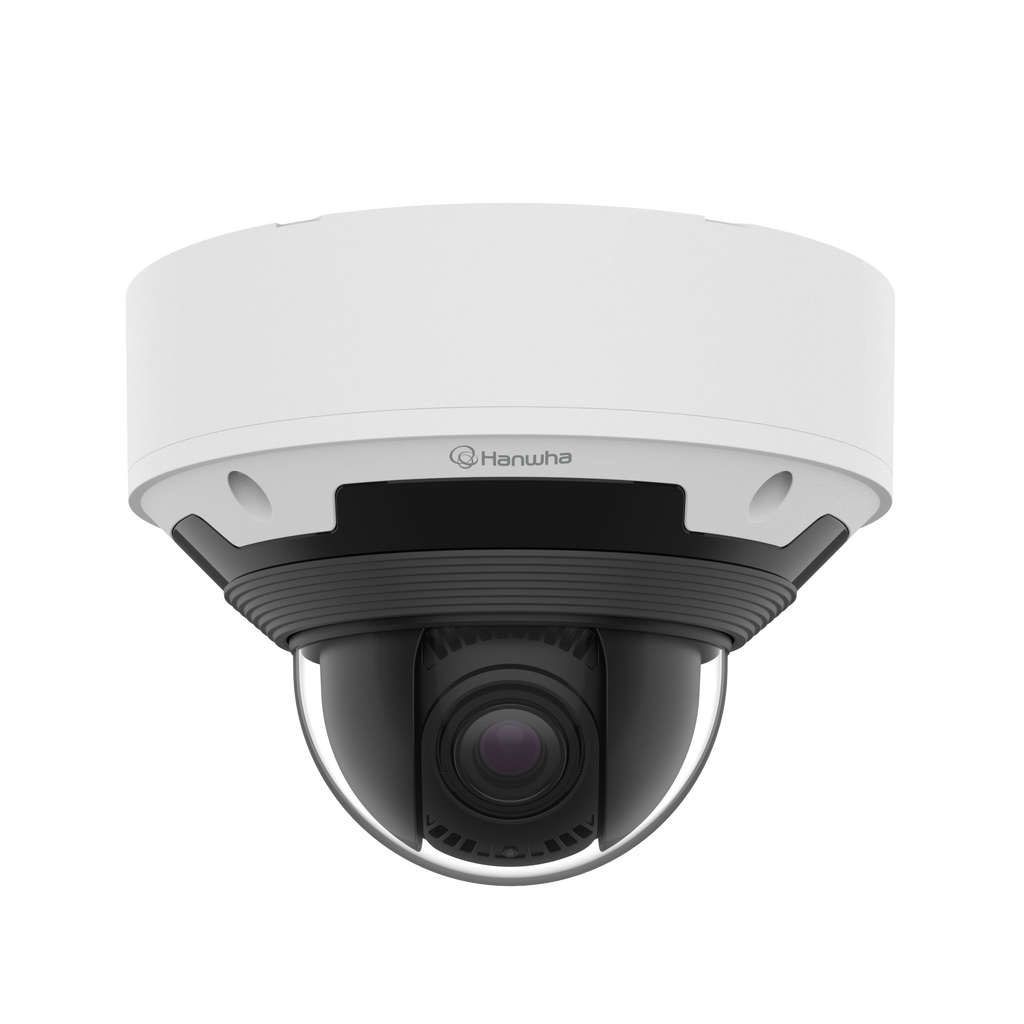

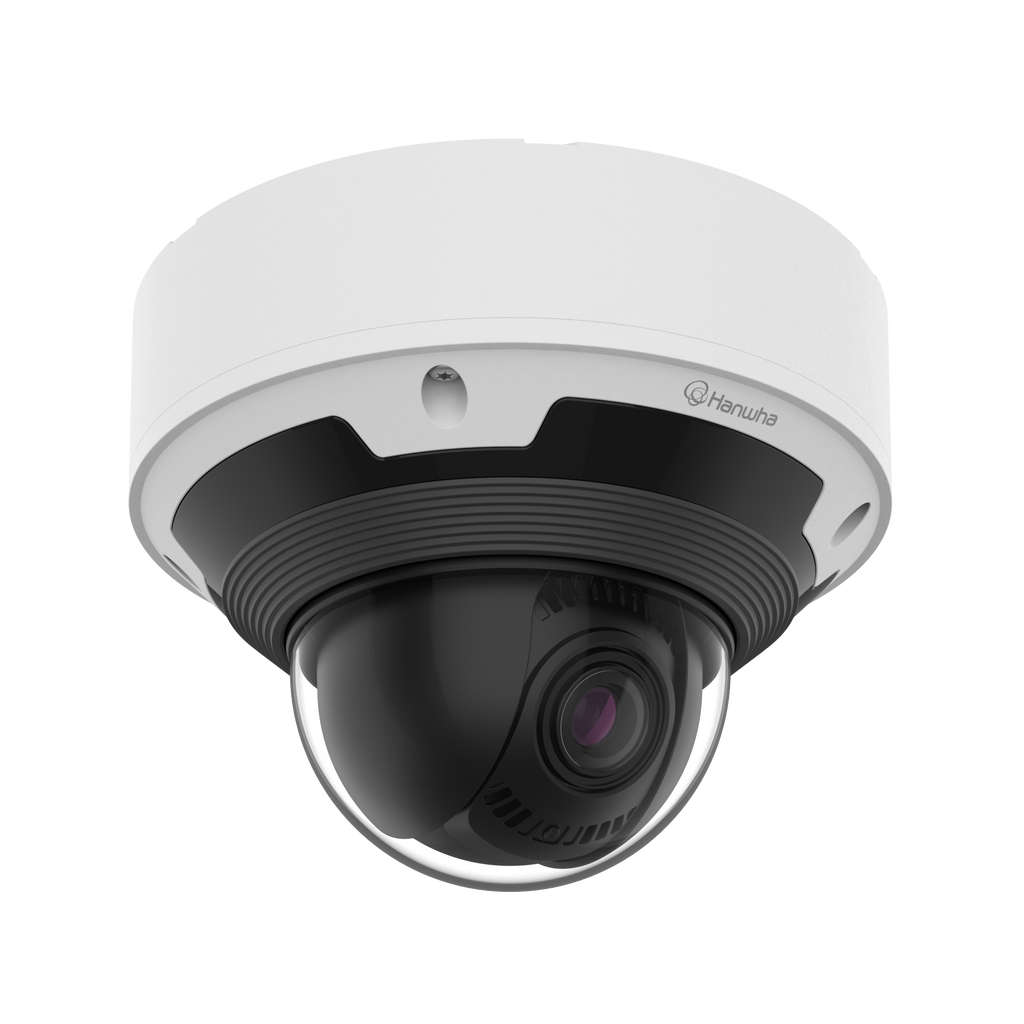

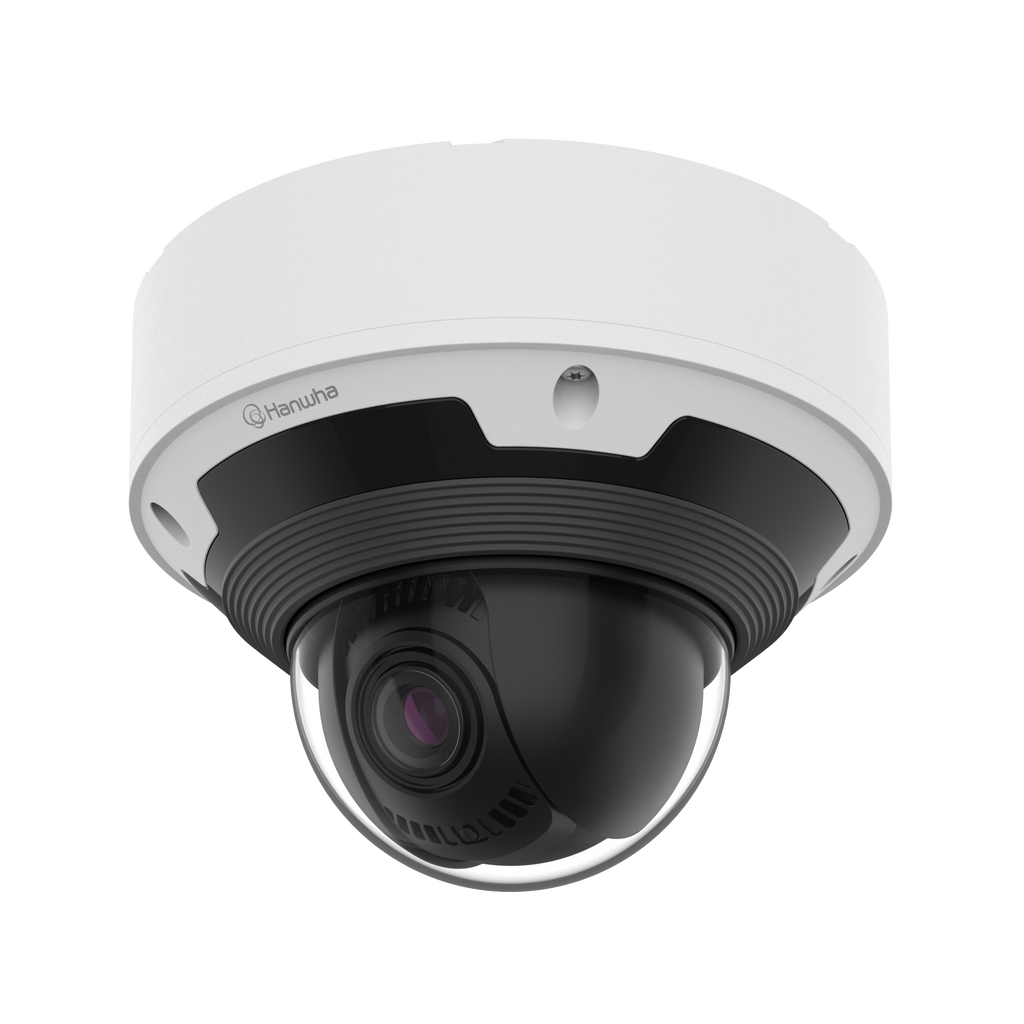

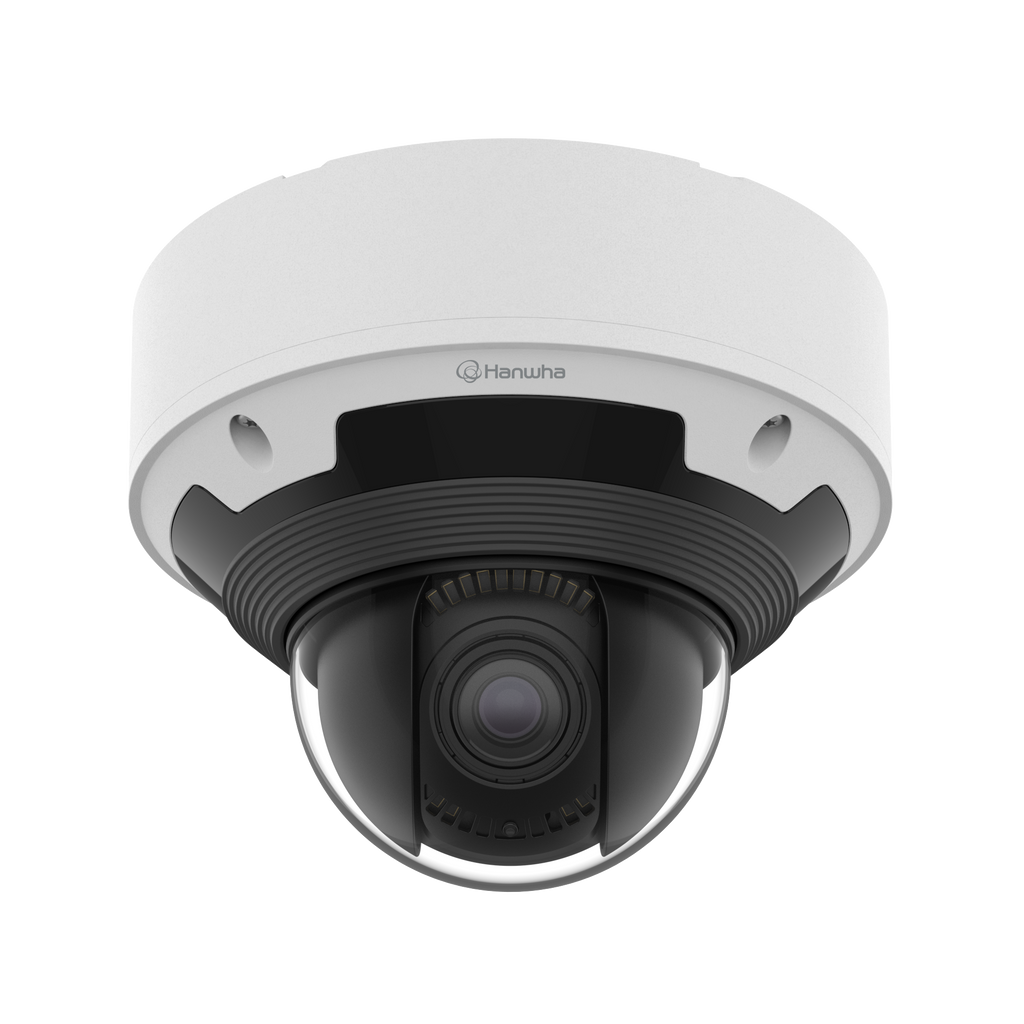

The Hanwha Vision XNV-9083RZ is a high-performance 8MP AI-powered IR vandal-resistant dome camera designed for demanding indoor and outdoor surveillance environments. Built on a 1/1.8" CMOS sensor with advanced AI analytics, it delivers exceptional image clarity, reliable object detection, and intelligent event monitoring.
Featuring a 4.4–9.3mm motorized varifocal P-iris lens, the camera provides flexible field-of-view adjustment with optimized low-light performance down to 0.03 lux (color). Its integrated IR LEDs offer effective illumination up to 15m or 30m depending on installation, ensuring clear images in total darkness.
The XNV-9083RZ includes powerful AI-based features such as person/face/vehicle detection, license-plate recognition, virtual lines, intrusion detection, and business intelligence functions like people and vehicle counting. Designed for durability, it carries IP66/IP67/IP6K9K weather ratings, IK10+ impact protection, and NEMA 4X certification.
With dual microSD card slots supporting up to 2TB total edge storage, secure boot, TPM 2.0, HTPM, and comprehensive cybersecurity protections, this camera is ideal for enterprise, public safety, and critical infrastructure applications.
| Category | Specification |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Resolution | Up to 3840×2160 (8MP) |
| Min. Illumination | Color: 0.03 lux (1/30s, 30IRE) • B/W: 0.003 lux |
| Lens | 4.4–9.3mm motorized varifocal, P-iris |
| Optical Zoom | 2.1× |
| Field of View | H: 113°–47° • V: 58°–26° • D: 138°–54° |
| IR Illumination | 15m or 30m (installation dependent), 850nm |
| Max Frame Rate | 30fps (H.265/H.264) |
| Day/Night | ICR auto |
| WDR | 120 dB |
| Noise Reduction | WiseNR II, SSNR V |
| Image Enhancements | Defog, DIS, LDC, flip/mirror/hallway view |
| AI Analytics | Person/face/vehicle/license plate detection, virtual lines, intrusion, loitering, enter/exit, shock, audio detection, sound classification |
| Business Intelligence | People counting, vehicle counting |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Streaming | Up to 10 profiles; unicast up to 20 users; multicast |
| Network | IPv4/IPv6, HTTPS, TLS, SRTP, ONVIF S/G/T/M, SUNAPI |
| Security | Secure boot, encrypted firmware, TPM 2.0 (FIPS 140-2 Level 2), HTPM, AES-256 SD card encryption |
| Edge Storage | Dual microSD/SDHC/SDXC slots (up to 2TB total) |
| Operating Temperature | –50°C to +55°C (startup above –30°C) |
| Ingress/Impact Rating | IP66, IP67, IP6K9K, IK10+, NEMA 4X |
| Power Input | PoE+ (IEEE 802.3at Class 4) |
| Power Consumption | Max 22.5W, typical 12.1W |
| Material/Color | Aluminum housing, hard-coated dome, white (RAL9003) |
| Dimensions | Ø180 × 135mm (7.09 × 5.31") |
| Weight | 2,000g (4.41 lb) |
