Description

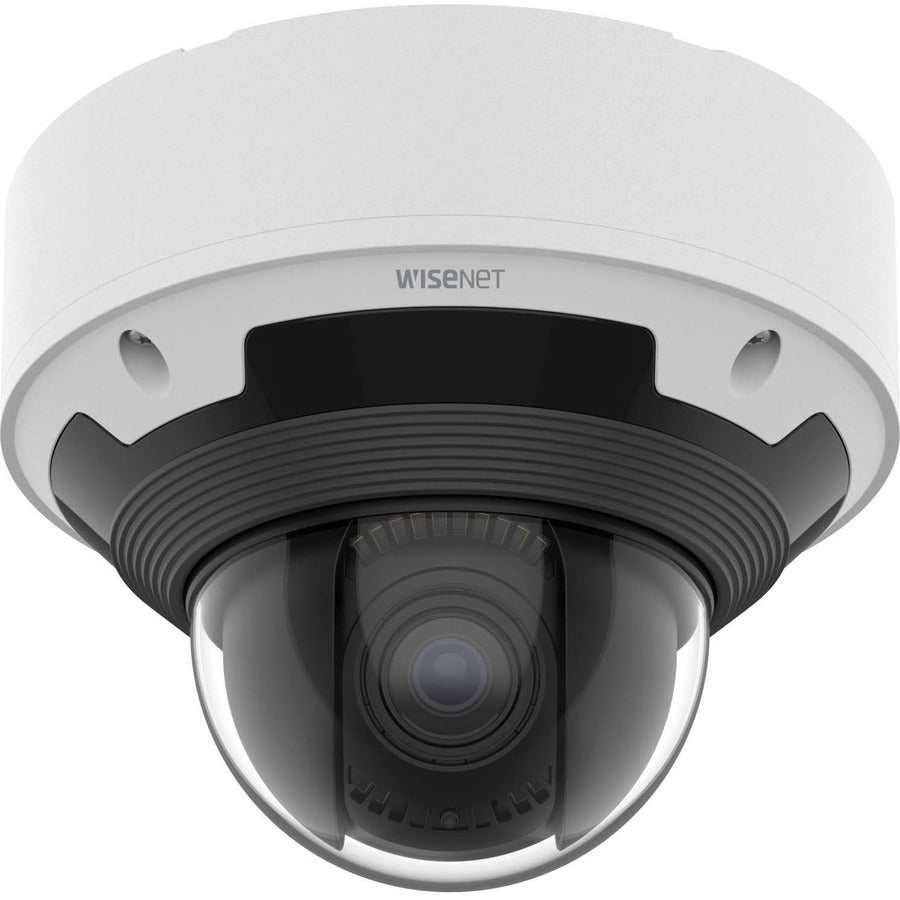

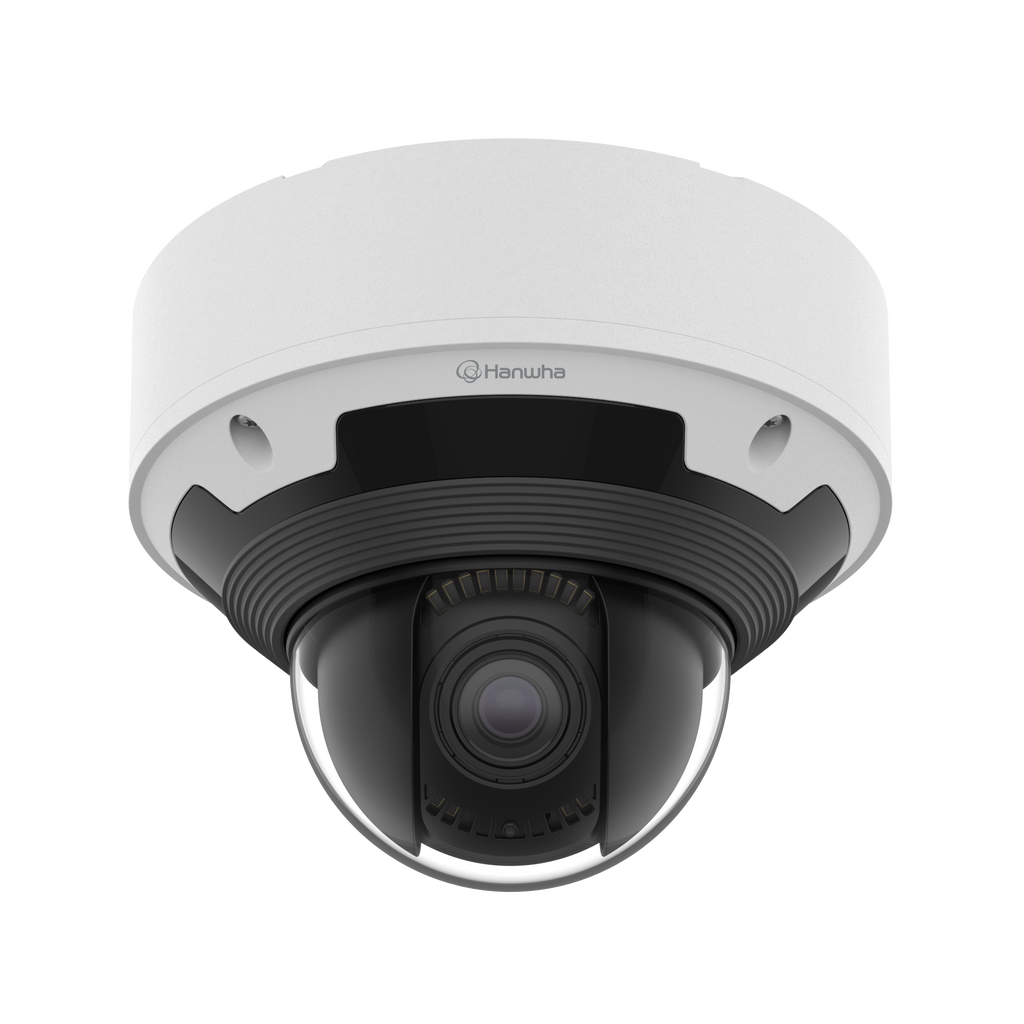

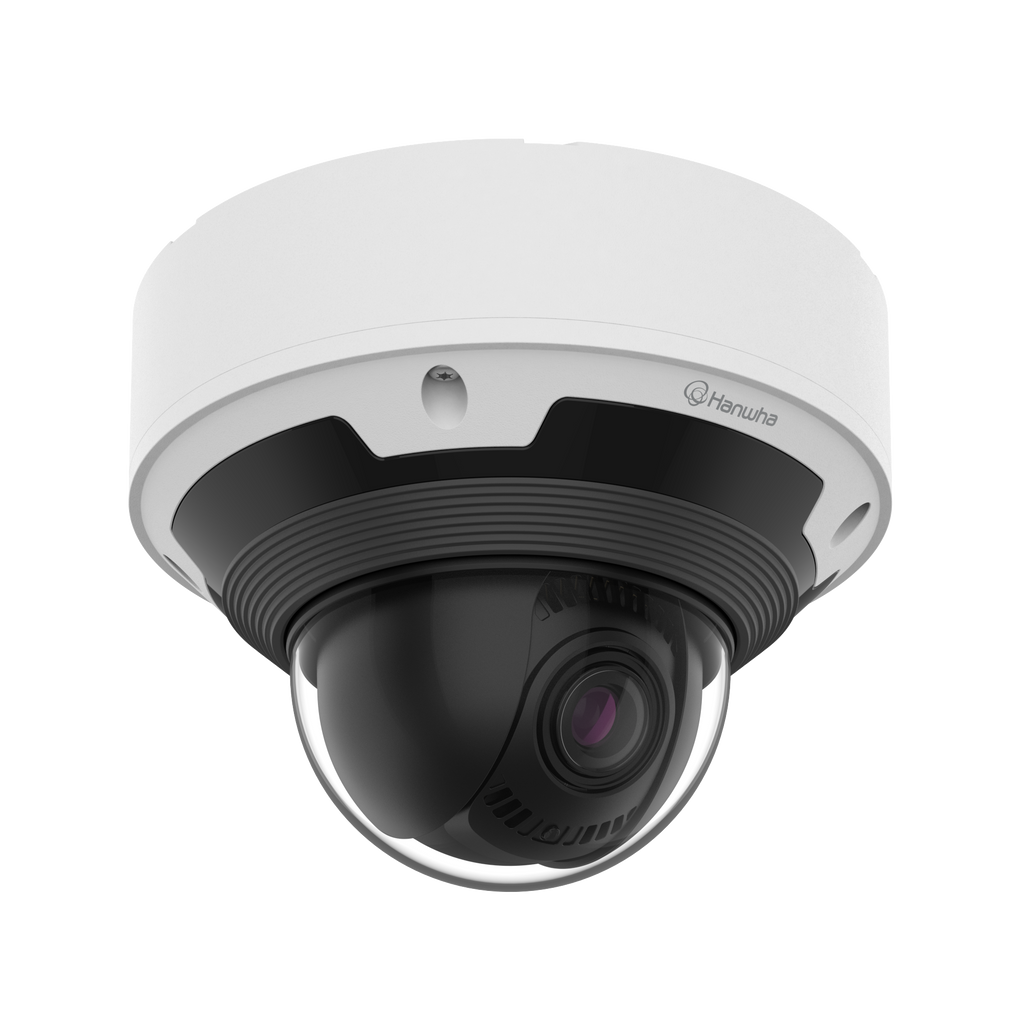

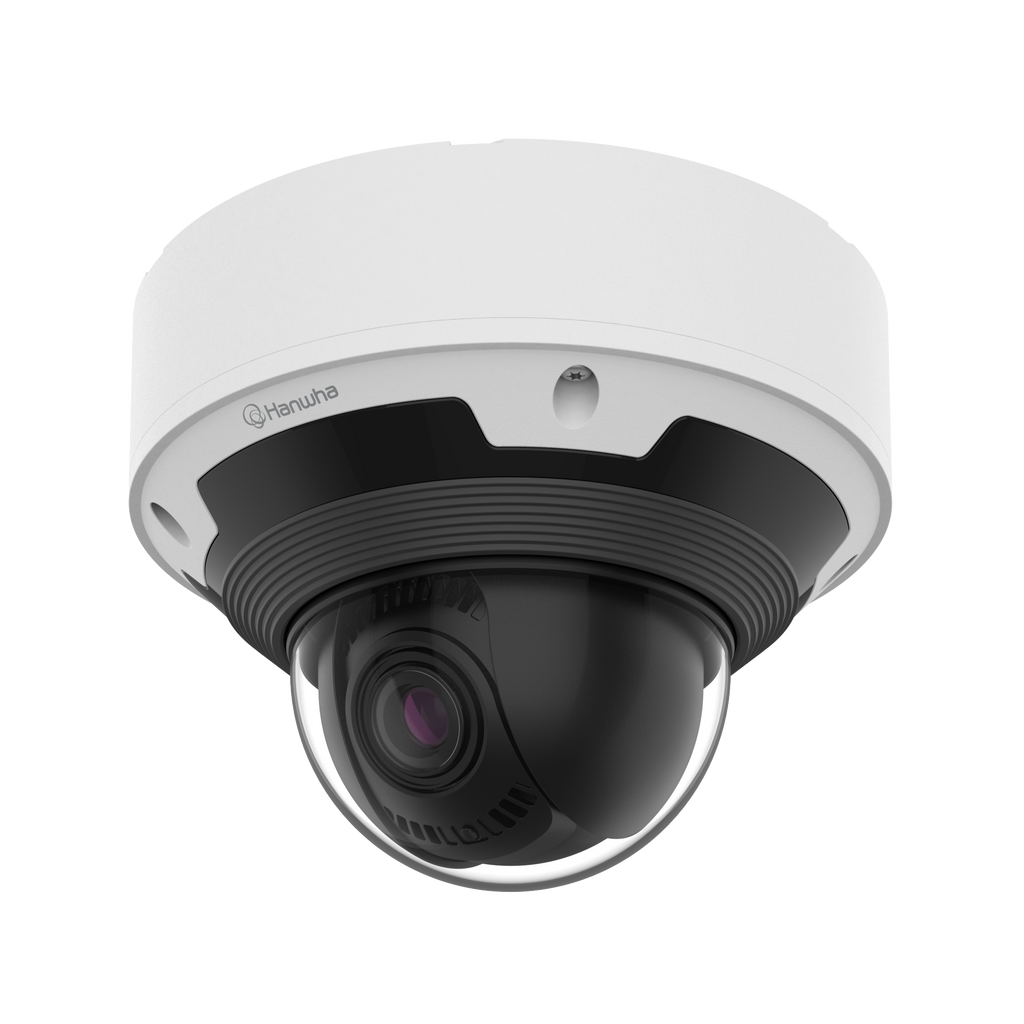

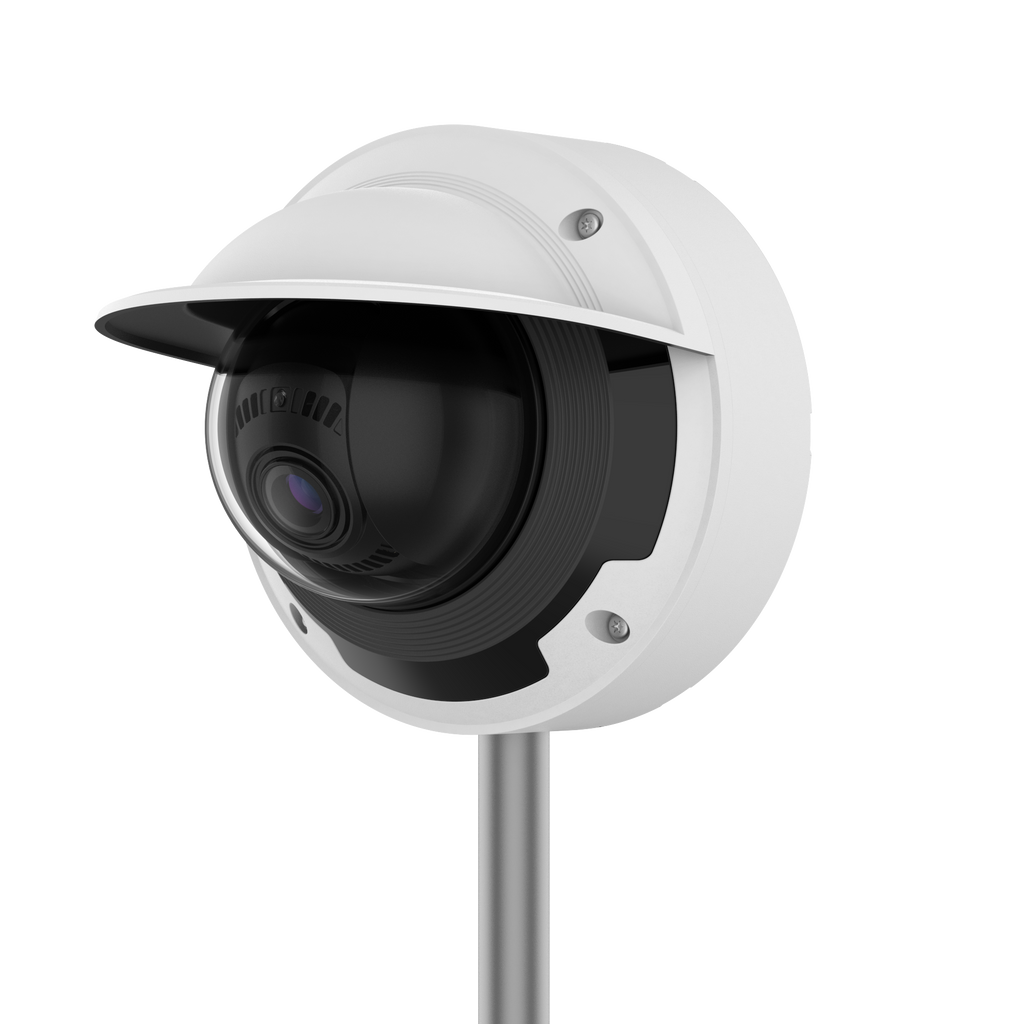

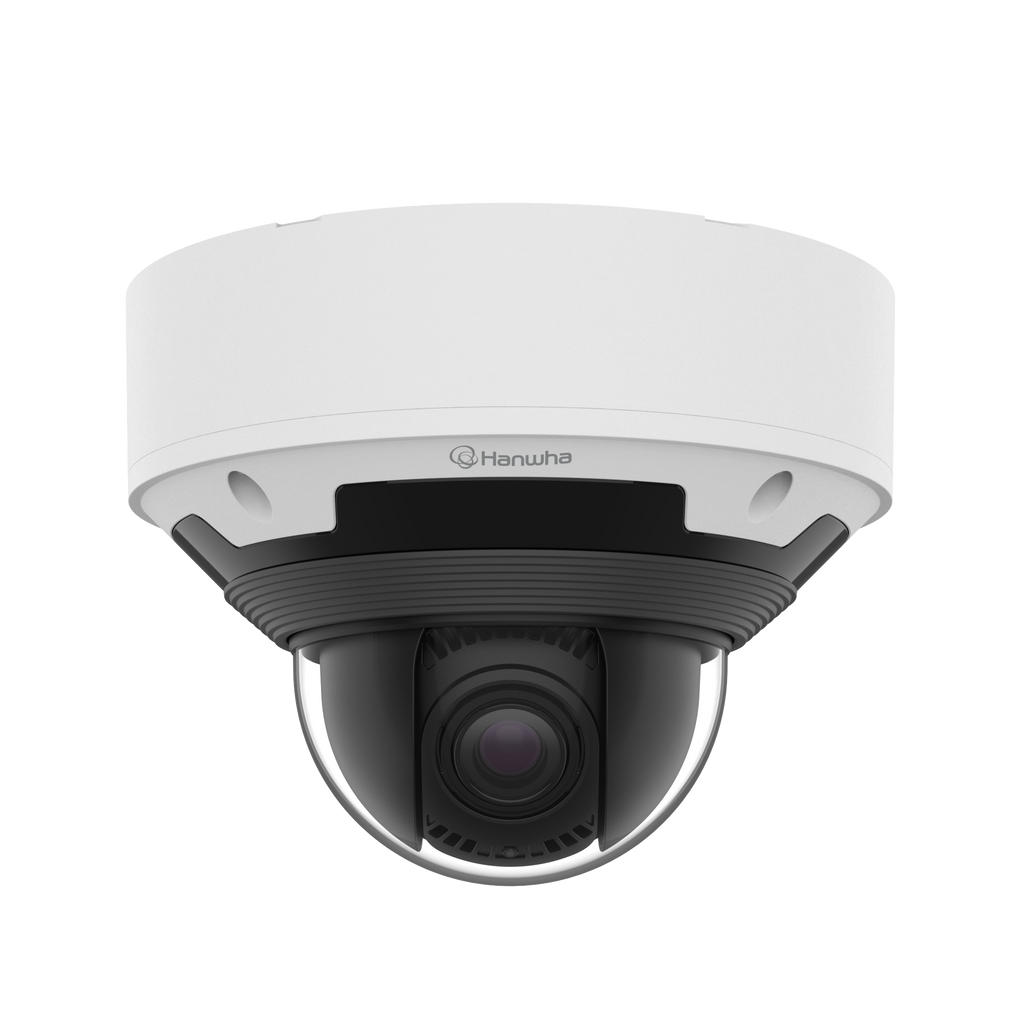

The Hanwha Vision XNV-8083RZ is a rugged 6MP AI-powered IR dome camera engineered for high-performance surveillance in demanding environments. Built with a durable IK10+ vandal-resistant and IP66/IP67/IP6K9K weatherproof housing, it delivers reliable monitoring across harsh outdoor and industrial settings.
Equipped with a 4.4–9.3mm motorized varifocal P-iris lens, the camera provides flexible wide-to-tele coverage with up to 138° diagonal field of view. Its advanced AI engine enhances image quality through features such as WiseNR II noise reduction, WiseStream III compression, and AI-based object detection for people, faces, vehicles, and license plates. Extreme WDR (120dB) ensures balanced images in challenging lighting conditions, while integrated IR supports illumination up to 30m depending on installation.
With extensive analytics, secure TPM-based hardware protection, dual microSD card slots (up to 2TB), and ONVIF S/G/T/M compliance, the XNV-8083RZ is an ideal solution for enterprise-grade security deployments requiring intelligent, resilient, and accurate video monitoring.
| Category | Specification |
|---|---|
| Imaging | 6MP CMOS, 1/1.8” sensor; Min. illumination: Color 0.03 Lux, B/W 0.003 Lux; Max. 30fps |
| Resolution Options | Up to 3328×1872; multiple lower resolutions supported |
| Lens | 4.4–9.3mm motorized varifocal, P-iris; 2.1x optical zoom |
| Field of View | H: 113°–47° / V: 58°–26° / D: 138°–54° |
| IR Illumination | 15m–30m (scene-based) |
| Image Enhancements | Extreme WDR 120dB, WiseNR II, SSNR V, Defog, Digital Image Stabilization |
| AI Analytics | Object detection (person, face, vehicle, license plate); IVA (virtual line, area, intruder, direction, loitering, enter/exit); sound classification; fog/tamper/defocus detection |
| Business Intelligence | People counting, vehicle counting |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream III |
| Streaming | Up to 10 profiles; unicast up to 20 users; multicast supported |
| Network Protocols | IPv4/IPv6, RTP/RTSP, HTTP/HTTPS, SNMPv1/v2c/v3, QoS, SRTP, MQTT, ONVIF S/G/T/M |
| Audio | Audio in/out via optional I/O box |
| Storage | Dual microSD/SDHC/SDXC slots (up to 1TB each; total 2TB for OnCloud) |
| Security | TPM 2.0 (FIPS 140-2 Level 2), secure boot, signed firmware, encrypted recordings |
| Environmental | Operating: -50°C to +55°C; 0–100% RH (condensing) |
| Power | PoE+ (IEEE 802.3at), Max 22.5W |
| Housing | IK10+ vandal-resistant, IP66/IP67/IP6K9K, NEMA 4X |
| Dimensions / Weight | Ø180 × 135mm; 2.0kg |
| Color / Material | White, Aluminum (RAL 9003) |
