Description

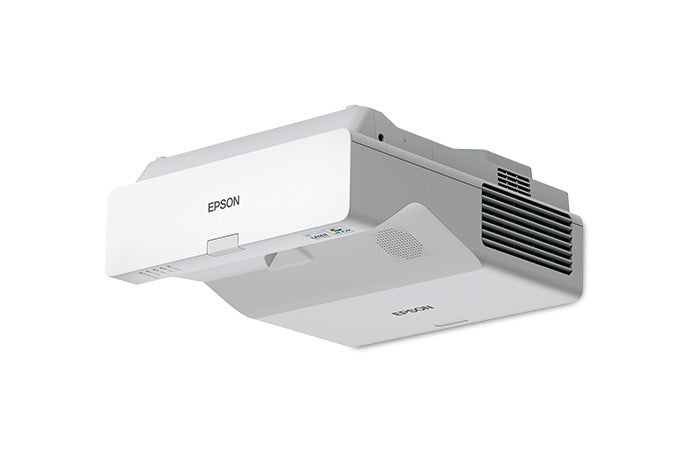

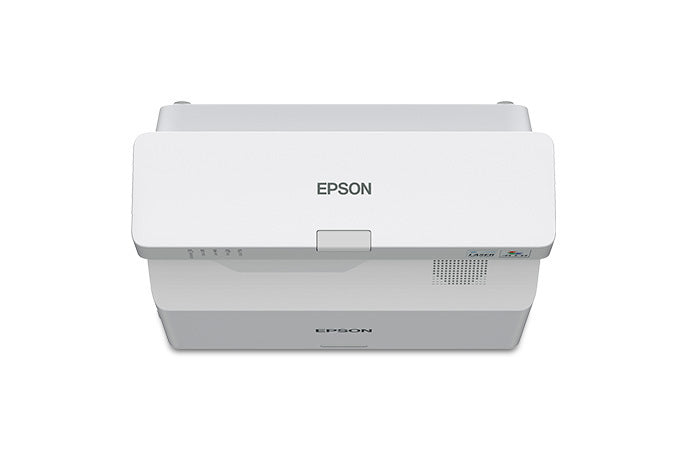

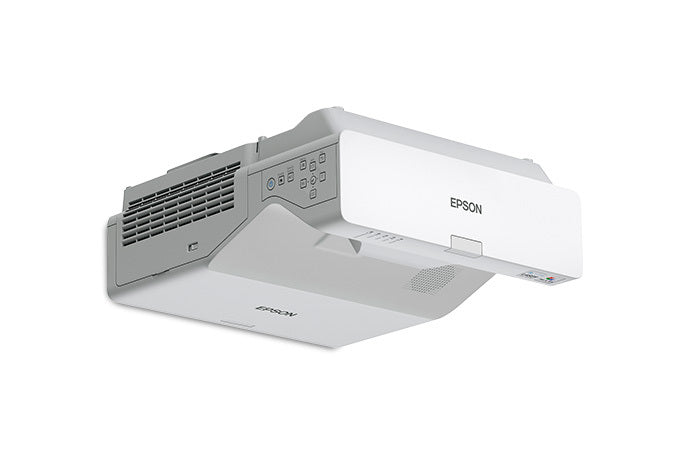

Captivate classrooms with the Epson PowerLite® 770F, a powerful ultra short throw laser display designed for modern education. Delivering bright, easy-to-read visuals up to 150" from less than two feet away, the 770F is 2.4x larger than a 75" flat panel, ensuring every student sees clearly. With 4,100 lumens of equal color and white brightness and Full HD 1080p resolution, lessons come alive with vibrant detail.
Engineered for convenience and reliability, this display features a 20,000-hour, virtually maintenance-free laser light source—eliminating lamp replacements entirely. Teachers can wirelessly connect and cast from up to 50 devices using Epson iProjection™, while split screen functionality allows up to four sources to be displayed at once.

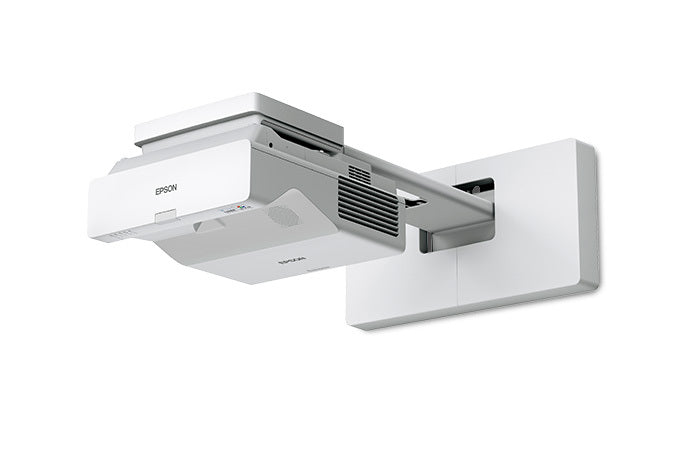

Supporting standard 16:9 and ultra wide 16:6 and 21:9 formats, the PowerLite 770F offers unmatched flexibility for collaborative and hybrid learning. With edge blending, built-in media playback, and flexible 360° installation options, it’s a dynamic display solution that adapts to classrooms, signage, and more.
| Category | Details |
|---|---|
| Brand / Manufacturer | Epson |
| Product Line | PowerLite |
| Model | 770F |
| SKU / Part Number | V11HA79020 |
| Display Technology | 3LCD, 3-chip |
| Resolution | Full HD 1080p (1920 × 1080) |
| Brightness | 4,100 lumens (color & white) |
| Contrast Ratio | Over 2,500,000:1 |
| Aspect Ratios Supported | 16:9 native, plus 16:6, 4:3, 16:10, 21:9 |
| Image Size | Up to 150" (16:9), ultra short throw from <2 ft |
| Light Source | Laser diode, 20,000 hrs (Normal), 30,000 hrs (Extended) |
| Throw Ratio | 0.25 – 0.35 |
| Color Reproduction | Up to 1.07 billion colors |
| Keystone Correction | ±3° vertical / horizontal |
| Projection Modes | Dynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection |

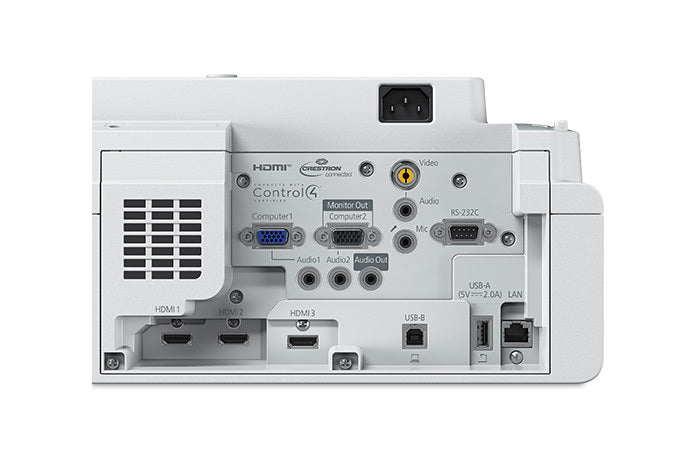

| Connectivity | 3x HDMI®, VGA in/out, RCA Composite, USB-A, 2x USB-B, LAN (RJ-45), RS-232C, 3x Stereo Mini in, 1x Stereo Mini out |
| Wireless | Optional adapter (802.11 b/g/n/ac) |
| Software Support | Epson iProjection, Creative Projection app, Projector Content Manager |
| Audio Out | Stereo Mini |
| Dimensions (W × D × H) | 14.1" × 15.6" × 6.5" |
| Weight | 13 lb |
| Noise Level | 37 dB (Normal), 27 dB (Quiet) |
| Power Consumption | 277 W (Normal), 214 W (Quiet), 0.5 W (Energy-Saving standby) |
| Included Accessories | Remote control with batteries, power cord, projector feet, Quick Setup Guide |
| Warranty | 3 years / 20,000 hours limited warranty (whichever comes first) |
| Country of Origin | China |
| Compliance | RoHS compliant, SmartWay® Transport Partner, recyclable product |
