Description
The iPGARD SDVN-16S is a high-security, 16-port KVM switch engineered for mission-critical environments where absolute data isolation is required. Designed for government, defense, financial, and enterprise control rooms, this secure KVM enables operators to manage up to sixteen computers from a single console without risking data leakage between systems.
Built to meet the latest NIAP Protection Profile 3.0 standards, the SDVN-16S ensures uncompromising security through hardware-based isolation, non-reprogrammable ROM, and active anti-tamper protections. Each channel operates independently, preventing any cross-domain communication and eliminating potential cyber threats.
With support for high-resolution DVI-I video up to 2560x1600 at 60Hz, along with keyboard, mouse, and audio switching, this KVM delivers both performance and security. Intelligent emulation technology maintains constant communication with all connected systems, enabling seamless, instant switching while safeguarding against unauthorized peripheral detection.
Whether deployed in secure operations centers or sensitive enterprise networks, the SDVN-16S provides reliable, compliant, and efficient multi-system control.
| Specification | Details |
|---|---|
| Number of Ports | 16-Port Secure KVM |
| Video Interface | Single-Head DVI-I (Dual Link, DVI-D compatible) |
| Maximum Resolution | Up to 2560 x 1600 @ 60Hz |

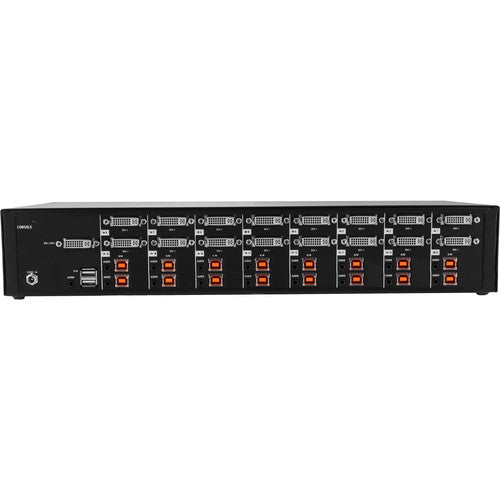

| Video Input Ports | 16 x DVI-I (29-pin) |
| Video Output Ports | 1 x DVI-I (29-pin) |
| USB Interface | 16 x USB Type-B (input), 2 x USB Type-A (console) |
| USB Compatibility | USB 1.1 and USB 2.0 compatible |
| Audio Support | 16 x 3.5mm stereo input, 1 x 3.5mm stereo output |

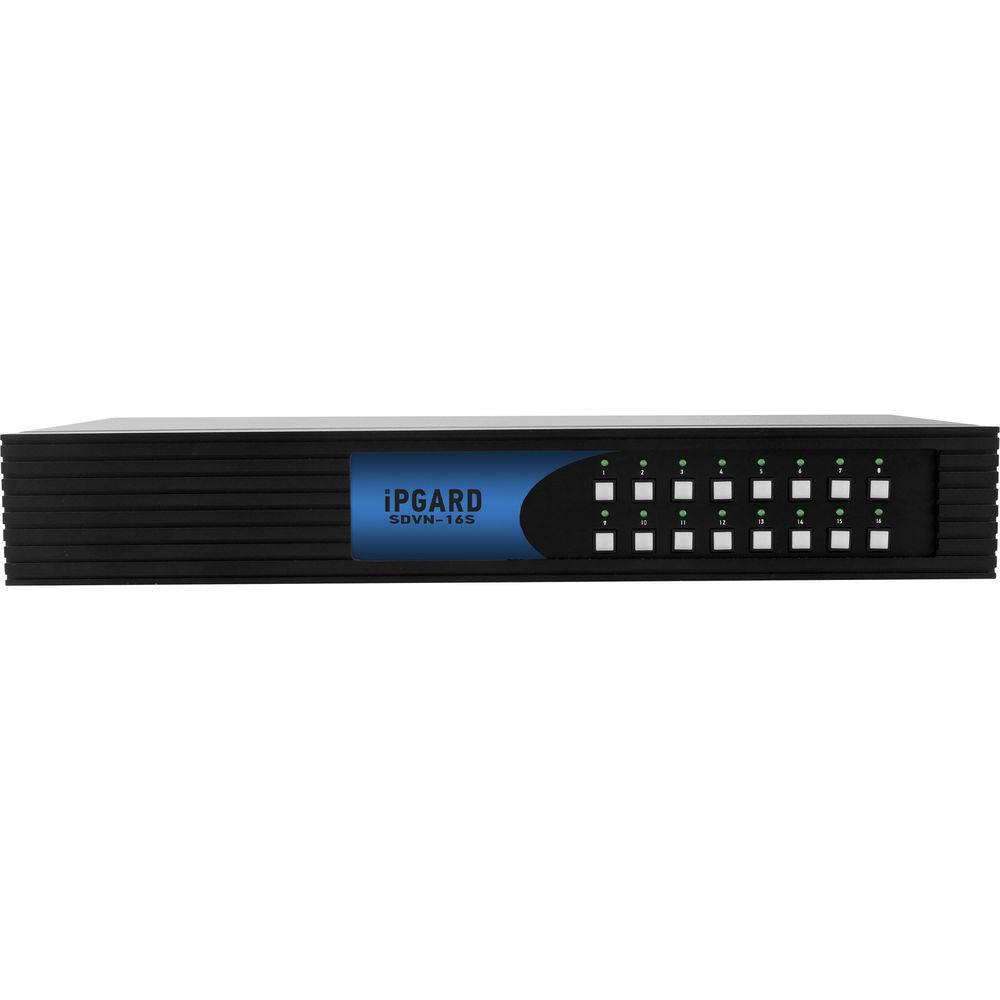

| Switching Method | Front panel tactile buttons with LED indicators |
| Security Certification | NIAP PP 3.0 compliant |
| Security Features | Non-reprogrammable ROM, active anti-tamper switches, tamper-evident seals, isolated data channels |
| Data Isolation | Absolute isolation between ports with no data leakage |
| Emulation | Keyboard, mouse, and video emulation for secure switching |
| EDID Management | Secure EDID learning and emulation |
| Operating Systems Supported | Windows, macOS, Linux |
| Power Supply | External 100–240V AC, 12V DC, 36W |
| Dimensions | 17.0” W x 2.7” H x 8.69” D |
| Weight | 6.9 lbs |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Up to 80% non-condensing |
| Compliance | UL, CE, RoHS compliant |
