Description

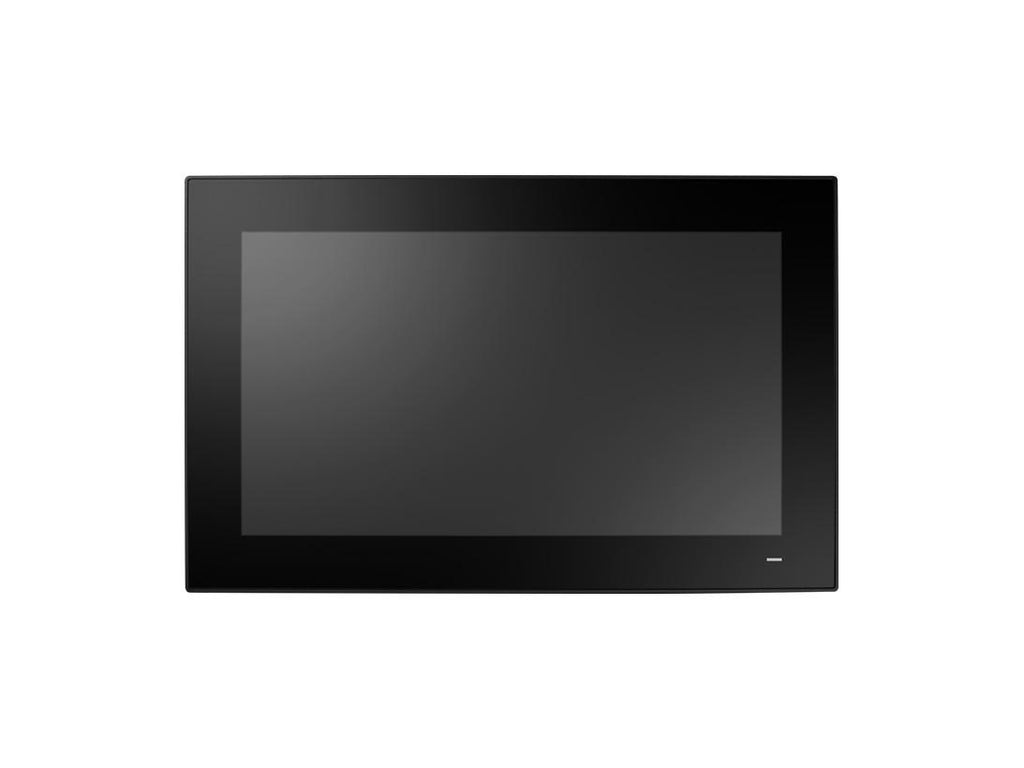

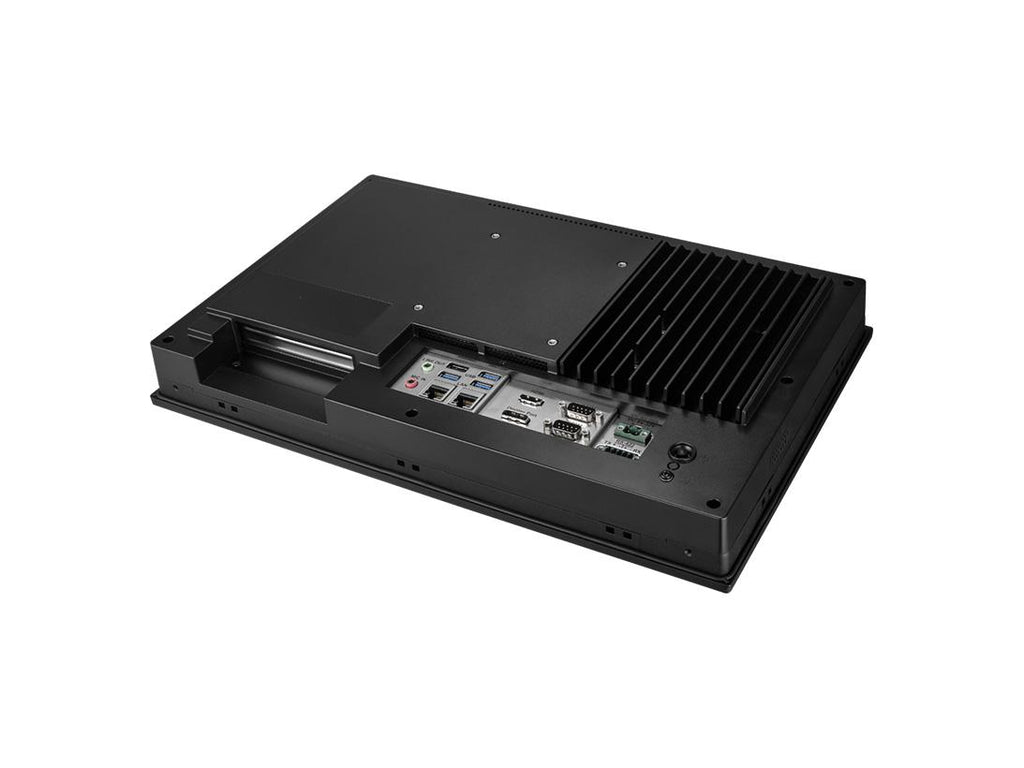

The Advantech PPC-415WI7-BTO-SRP is a high-performance 15.6-inch fanless widescreen industrial panel PC designed for demanding HMI and automation environments. Powered by an Intel® 13th Gen Core™ i7 processor, it delivers robust computing performance in a reliable, maintenance-free fanless design.
Featuring a true-flat Full HD projected capacitive touchscreen, rich industrial I/O, dual 2.5GbE networking with Time-Sensitive Networking (TSN) support, and PCIe/PCI expansion capability, this system is ideal for smart manufacturing, industrial control, and advanced edge computing applications.
Built with an IP66-rated front panel and rugged aluminum alloy bezel, the PPC-415WI7-BTO-SRP ensures durability and long-term operation in harsh environments.
| Specification Category | Details |
|---|---|
| Product Type | Industrial Fanless Panel PC |
| Display Size | 15.6” Widescreen TFT LCD |
| Resolution | 1920 × 1080 (Full HD) |
| Touchscreen Type | Projected Capacitive Multi-Touch (P-CAP) |
| Processor | Intel® Core™ i7 13th Gen (i7-1365URE) |
| System Design | Fanless Embedded Architecture |
| Memory Support | DDR5 4800 MHz, up to 64GB (2× SODIMM) |
| Storage Options | 2.5” SATA Bay + M.2 2242/2280 Slot |
| Expansion Slot | PCIe x4 or PCI (optional) |
| Ethernet Ports | Dual 2.5GbE Intel I226LM with TSN Support |
| Serial Ports | 5× Serial (RS-232 + Isolated RS-422/485) |
| USB Ports | 3× USB 3.2 + 1× USB 2.0 |
| Display Outputs | HDMI 1.4 + DisplayPort 1.4a |
| Security Feature | TPM 2.0 Hardware Security Module |
| Mounting Support | Panel Mount + VESA 100 |
| Input Voltage Range | 9–32 VDC Wide Power Input |
| Operating Temperature | -20°C to 60°C |
| Front Panel Protection | IP66 Rated Industrial Protection |
| Dimensions | 419.7 × 269 × 59 mm |
| Weight | Approx. 5.4 kg |
| OS Support | Windows 11, Windows 10 IoT LTSC, Linux |
