Description

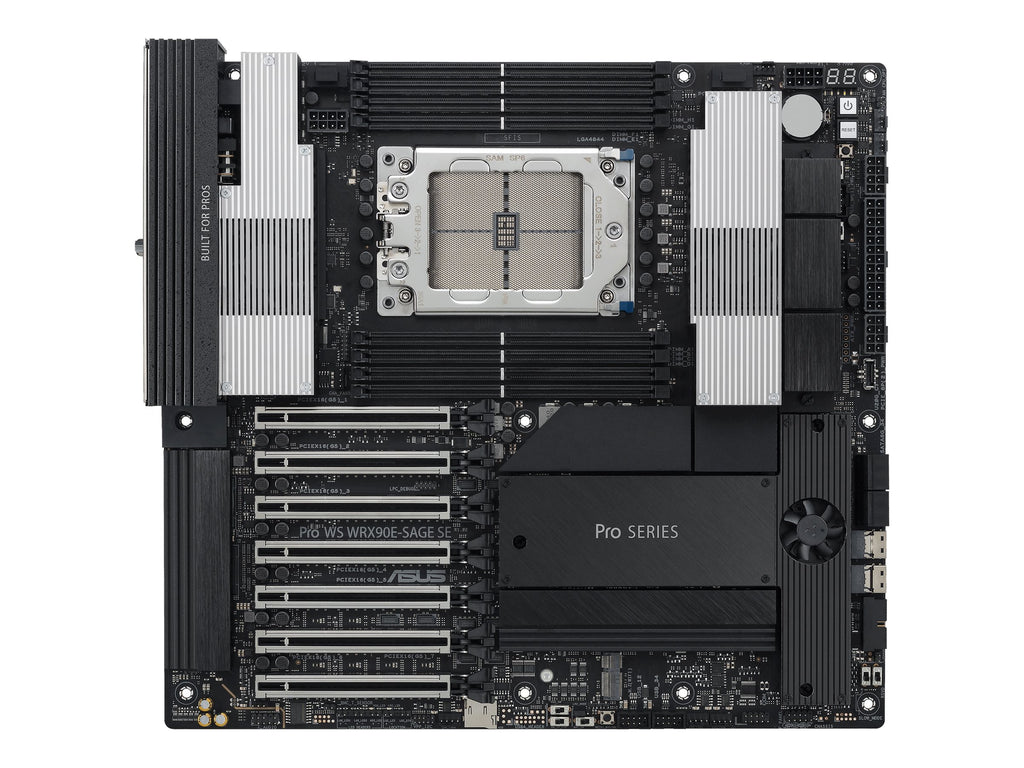

The ASUS Pro WS WRX90E-SAGE SE is a professional-grade EEB motherboard engineered for extreme computing power, reliability, and scalability. Built for creators, engineers, and developers, it supports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors on the WRX90 chipset, delivering unparalleled multi-core performance and massive PCIe 5.0 bandwidth.
With seven PCIe 5.0 x16 slots, four M.2 PCIe 5.0 storage interfaces, and dual Intel® 10Gb Ethernet, it provides immense expandability and high-speed connectivity for advanced GPU rendering, data-intensive simulation, and AI workloads. The board also includes ASUS Control Center Express, BMC remote management, and ECC Registered DDR5 support for enterprise-grade stability.
Designed with ASUS’s Q-Design, 5X Protection III, and active VRM cooling, the Pro WS WRX90E-SAGE SE ensures optimal performance under sustained heavy loads—ideal for professional studios, render farms, and scientific research environments.
| Category | Specification |
|---|---|
| CPU Support | AMD Socket sTR5 WRX90 for Ryzen™ Threadripper™ PRO 7000 WX-Series Processors |
| Chipset | AMD WRX90 Chipset |
| Memory | 8 x DDR5 DIMM slots (ECC Registered), 8-channel architecture, AMD EXPO™ support |
| Expansion Slots | 6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 (x8 mode) |
| Storage | 4 x M.2 PCIe 5.0 x4 slots, 2 x SlimSAS ports (PCIe 4.0 x4 NVMe), 4 x SATA 6Gb/s ports, AMD RAIDXpert2 (RAID 0/1/5/10) |
| Graphics | 1 x VGA (AST2600), 2 x USB4® (40 Gbps Type-C®, up to 8K@60Hz via DisplayPort 1.4 passthrough) |
| Audio | Realtek ALC1220P High Definition Audio CODEC (120 dB SNR playback, 5.1 Surround Sound) |
| Networking | 1 x Intel® Dual 10Gb Ethernet, 1 x Realtek 1Gb Ethernet (Management LAN), ASUS LANGuard |
| USB (Rear I/O) | 2 x USB4® Type-C®, 6 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A |
| USB (Front I/O) | 1 x USB 20Gbps Type-C®, 2 x USB 5Gbps ports, 4 x USB 2.0 ports |
| Internal I/O | 4 x M.2, 2 x SlimSAS, 4 x SATA, 7 x Fan headers, 2 x VRM fan, 1 x W_PUMP+, 1 x Thermal sensor, 1 x TPM header, 1 x microSD slot |
| Management Features | ASUS Control Center Express (ACCE), BMC switch, IPMI support, dedicated management LAN |
| Form Factor | EEB (12" x 13") |
| Operating System | Windows® 11 / Windows® 10 64-bit |
| Special Features | Extreme OC Kit, Q-Design, Q-Code LED, Q-Latch, Q-Slot, Safe Boot, BIOS FlashBack™, Clear CMOS button, ASUS Armoury Crate, ASUS CPU-Z, Fan Xpert 4 |
| Package Contents | Motherboard, 2 x CPU 8-pin to PCIe 8-pin cables, 1 x 24-pin Y-cable, 2 x Mini DisplayPort cables, 4 x SATA cables, 1 x Thermistor cable, Q-connector, M.2 accessories, documentation |
