Description

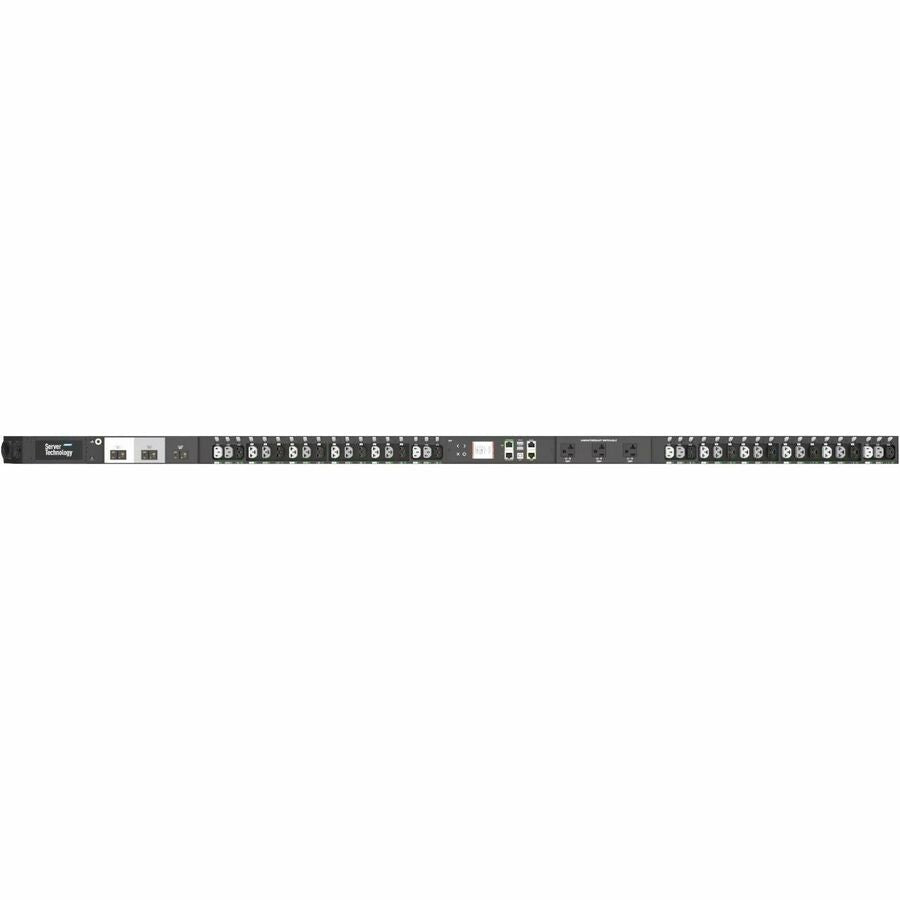

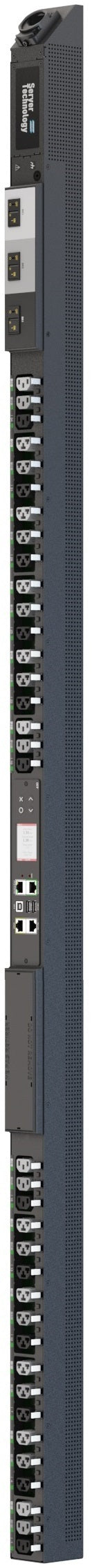

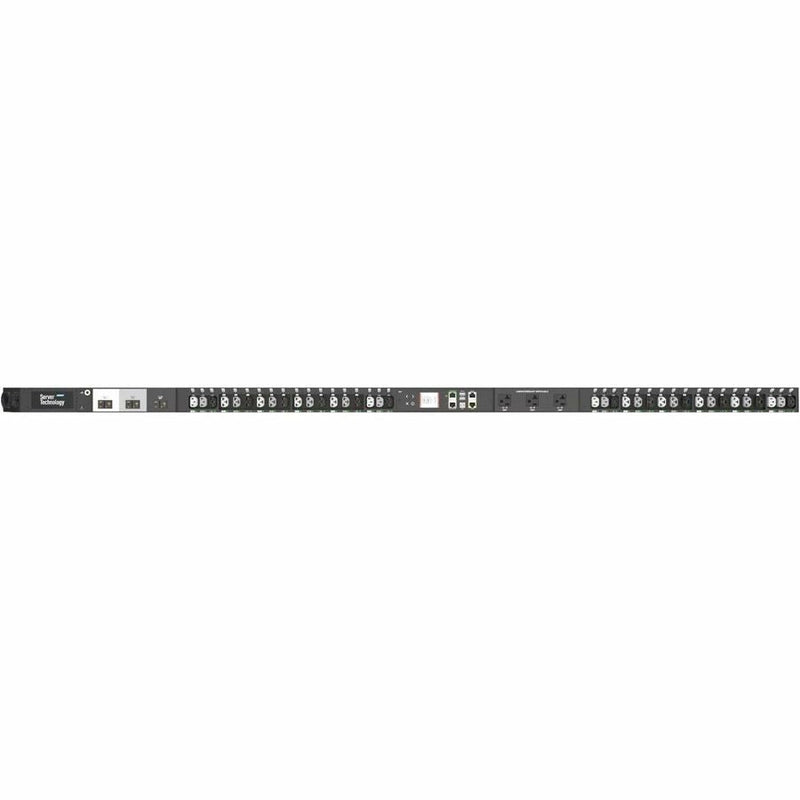

The Server Technology PRO4X C4W36RA-EPBE2FE2 Switched PDU delivers advanced rack power distribution for high-density data centers. Built on the powerful Xerus network interface platform, it provides secure remote access to outlet-level control, real-time monitoring, and detailed power quality measurements.
Featuring HDOT Cx outlets that accept both C14 and C20 plugs, this PDU ensures maximum flexibility. The RamLock self-locking outlets prevent accidental disconnects, while alternating-phase outlet design simplifies load balancing. Integrated PIPS® per-inlet sensing and waveform capture provide deep visibility into energy usage, harmonics, and load irregularities.
With multi-unit linking (up to 16 PDUs) via a single IP, redundant branch circuit protection, and support for environmental monitoring sensors, the C4W36RA-EPBE2FE2 is engineered to optimize uptime, efficiency, and security in demanding IT environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched PDU |
| Model / SKU | C4W36RA-EPBE2FE2 |
| Outlets | 36 total – (12) IEC 60320 C13 ≤10A @230V, (24) HDOT Cx ≤16A @230V |
| Input Plug | IEC 230V/32A 2P+PE 6Hr |
| Input Voltage | 230V AC |
| Input Current | 32A rated |
| Input Power Capacity | 7.3 kW |
| Frequency | 50/60 Hz |
| Monitoring & Control | Outlet-level switching, PIPS® per-inlet power sensing, waveform capture |
| Security | 256-bit AES encryption, LDAP/AD, SSH, SSL, HTTPS, RADIUS, TACACS+ |
| Communications | Dual Ethernet (10/100/1000 Mbps), USB, RS-232, Optional Wi-Fi |
| Display | Multi-color LCD with local alarms and power usage data |
| Branch Circuit Protection | UL 489 2-pole breakers, 20A trip, 10kAIC interrupt rating |
| Dimensions | 70.0 in x 2.2 in x 2.5 in (1778mm x 56mm x 64mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Environmental Monitoring | Supports up to 12 DX2-series SmartSensors |
| Accessories | Wi-Fi dongle, KVM/serial dongle, environmental sensors, asset management strips |
| Warranty | 2-year limited (extended options available) |
