Description

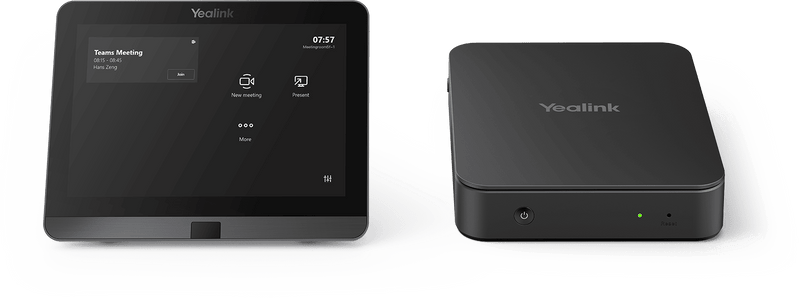

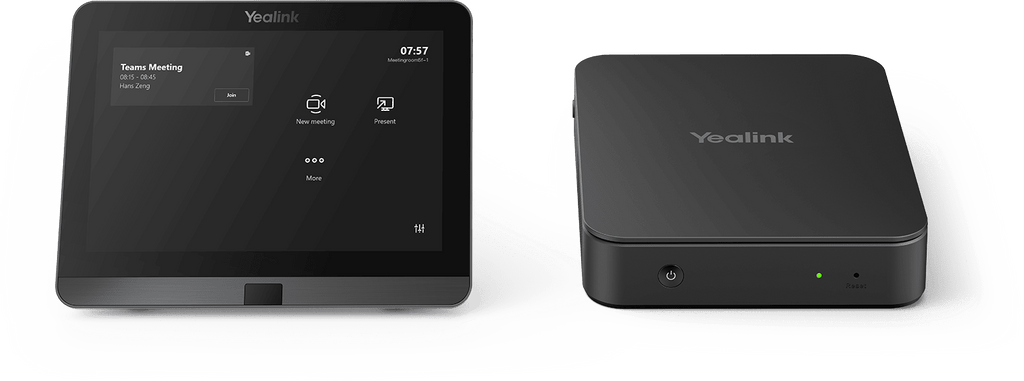

The Yealink MCoreKit-C5-MS is a powerful and flexible Microsoft Teams Rooms base kit designed to enhance collaboration in modern meeting spaces. Equipped with an Intel Core Gen11 i5 processor, this system delivers exceptional performance and reliability for seamless conferencing.
The included 11.6-inch MTouch Plus touch panel features an anti-fingerprint and anti-glare IPS display with 1080p resolution, ensuring intuitive, crystal-clear meeting control. With built-in security enhancements like TPM 2.0 and a security slot, and connectivity options including HDMI, USB 3.0, Ethernet, Bluetooth 5.2, and Wi-Fi 6, this kit offers versatility for a wide range of meeting room configurations.
Supporting Apple AirPlay, Google Cast, and Wi-Fi Miracast, the MCoreKit-C5-MS provides multiple ways to share content wirelessly, while the modular design ensures easy deployment with three installation methods. Backed by a 2-year hardware warranty, this Yealink solution is built for performance, security, and productivity.
| Category | Details |
|---|---|
| Brand | Yealink |
| Product Line | Yealink MVC Series |
| Model | MCoreKit-C5-MS |
| Product Type | Microsoft Teams Rooms Base Kit |
| Processor | Intel Core Gen11 i5 |
| Touch Console | 11.6" IPS screen, 1920 × 1080 resolution, Anti-fingerprint, Anti-glare |

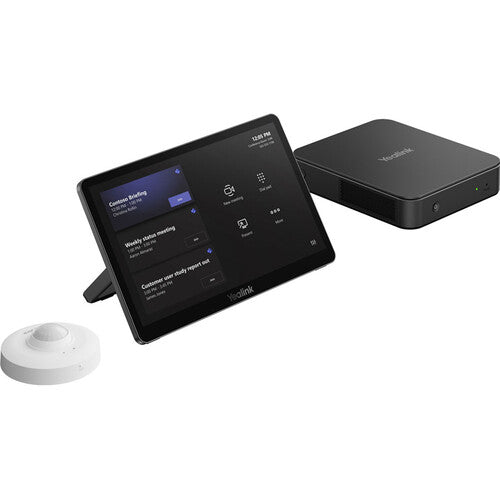

| System Kit Content | MCore Pro Mini-PC, MTouch Plus touch panel, Room Sensor |
| Connectivity | Wired, Wireless (Bluetooth 5.2, Wi-Fi 6, Ethernet, Fast Ethernet, Gigabit) |
| Protocols Supported | Apple AirPlay, Google Cast, Miracast ready, TPM 2.0 |
| Interfaces | 3 × HDMI, 4 × USB 3.0, 1 × RJ-45 (Ethernet), 1 × MTouch port |
| Max Resolution | 5K external output |
| Power Device | External power adapter |
| Deployment Methods | Three mounting options |
| Certifications | CCC, FCC, IC, RCM, REACH, RoHS, UKCA, WEEE |
| Warranty | 2-Year Limited Hardware Warranty |
| Dimensions (Mini-PC) | 6.6" W × 7.8" D × 1.5" H; Weight: 24.3 oz |
| Touch Console Weight | 34.1 oz |
| Operating Conditions | Temp: 32°F – 104°F; Humidity: 10% – 95% |
| Color | Black, White |
