Description

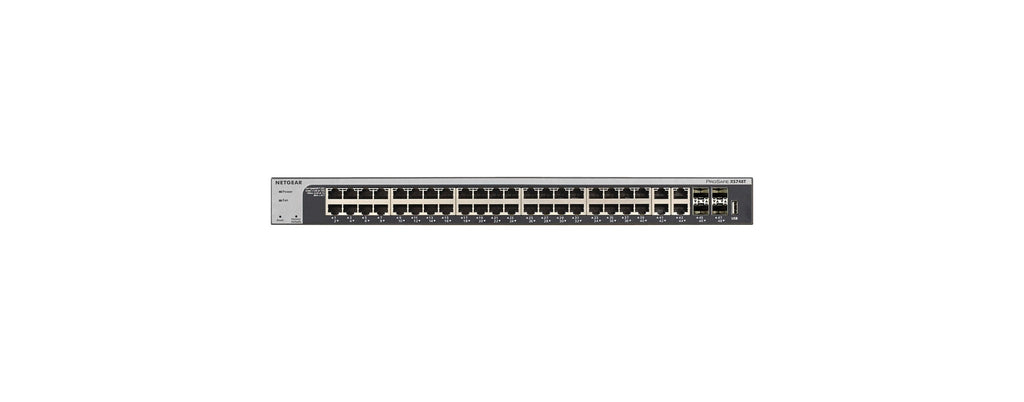

The NETGEAR XS748T-100NES is a high-performance 10-Gigabit Smart Managed Switch engineered for demanding SMB and enterprise edge environments that require reliable, high-speed network infrastructure. Designed to serve as a core or aggregation switch, it delivers powerful 10GBASE-T connectivity across 44 copper ports, complemented by 4 dedicated SFP+ fiber uplinks for flexible, high-bandwidth expansion.
Built to support modern workloads such as virtualization, large-scale data transfers, VoIP, and video streaming, this switch provides non-blocking throughput and advanced Layer 2+ and Layer 3 Lite capabilities. With comprehensive VLAN support, static routing, advanced QoS, and robust security features, the XS748T ensures optimized traffic management and secure network segmentation.
Its intuitive web-based management interface simplifies deployment and monitoring, while dual firmware images enhance reliability and uptime. Designed for scalability and efficiency, the XS748T is ideal for organizations looking to future-proof their infrastructure with cost-effective 10-Gigabit performance.
| Specification | Details |
|---|---|
| Form Factor | Rackmount |
| Total Ports | 48-Port 10-Gigabit Smart Switch |
| Copper Ports | 44 x 10GBASE-T (RJ45) |
| Fiber Uplinks | 4 x 10G SFP+ |
| Switching Capacity | 960 Gbps |
| Forwarding Rate | Up to 714.2 Mpps |
| Packet Buffer Memory | 3 MB |
| MAC Address Table | 16K entries |
| VLAN Support | Up to 512 VLANs |
| Static Routing | IPv4 and IPv6 supported |
| QoS Features | L2/L3/L4 QoS with 8 priority queues |
| Security Features | ACLs, 802.1X authentication, DHCP snooping, port security |
| Multicast Support | IGMP and MLD snooping |
| Management Interface | Web GUI (HTTP/HTTPS), SNMP, RMON |
| Firmware | Dual firmware images for redundancy |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| Power Consumption | Up to 262.8 W (max) |
| Cooling | 4 internal fans |
| Dimensions | 440 x 347 x 43 mm |
| Weight | 6.25 kg |
| Operating Temperature | 0°C to 50°C |
| Mounting Options | Rackmount with included kit |
