Description

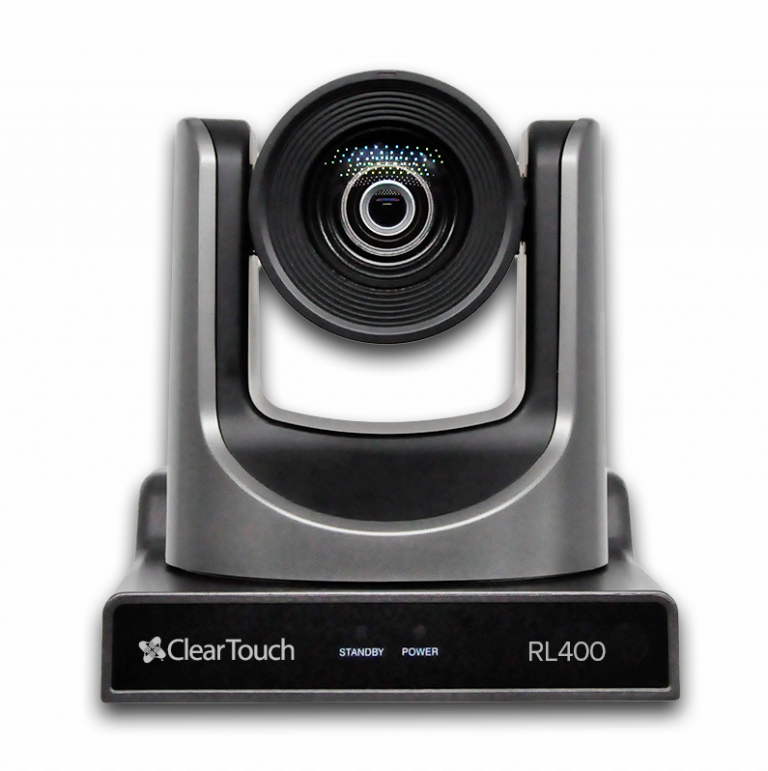

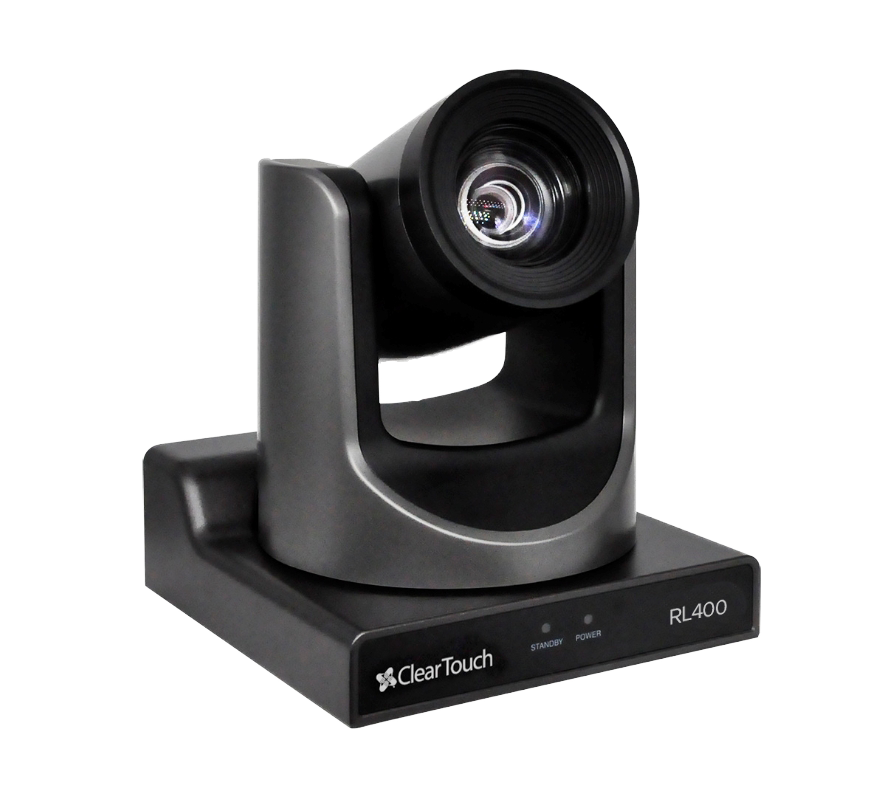

The Clear Touch RL400 Remote Learning Camera is a professional 4K PTZ camera designed for classrooms, offices, hybrid meetings, and remote learning environments. With 20x optical zoom, a 60° wide-angle lens, auto-tracking, auto-focus, and 340° rotation, it keeps presenters clearly in frame while delivering sharp, smooth video.
Built for flexible installation, the RL400 supports ceiling mounting with auto-flip image correction, low-light noise reduction, USB 3.0 output, HDMI 2.0, 3G-SDI, RS232, RS485, and Gigabit Ethernet with PoE support. It is compatible with Clear Touch panels and third-party computing devices, making it a reliable camera solution for unified collaboration and distance learning.
| Specification | Details |
|---|---|
| SKU | CTS-RL400-4K20 |
| Brand | Clear Touch |
| Model | RL400 |
| Product Type | 4K PTZ Remote Learning Camera |
| Resolution | 4K |
| Frame Rate | 4K at 60fps |
| Optical Zoom | 20x |
| Field of View | 60° |
| Rotation | 340°; 170° from center focal point |
| Vertical Rotation Range | -30° to +90° |
| Functions | PTZ, auto-frame, auto-focus, whole-body auto-tracking |
| Presets | 255 presets |
| Sensor | 1/1.8" CMOS, 8.42MP effective pixels |
| Digital Noise Reduction | 2D and 3D digital noise reduction |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Minimum Illumination | 0.5 Lux |
| Video Compression | YUY2, MJPEG, H.264, H.265 |
| USB Video Format | Up to 4K@60fps compressed video |
| USB Protocol | UVC 1.1–1.5 |

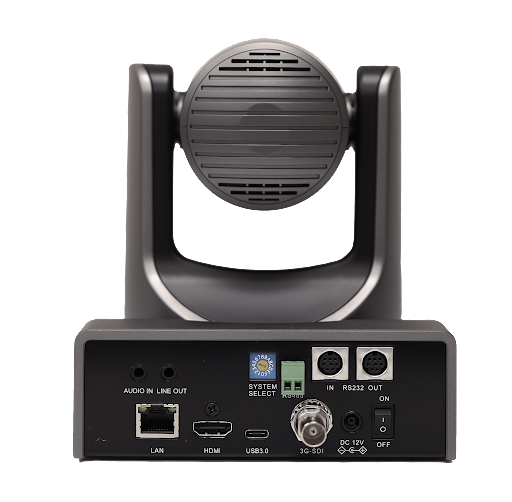

| Interfaces | Audio In, Line Out, RS485, RS232 In/Out, RJ45, HDMI, USB 3.0, 3G-SDI |
| Network | RJ45 10/100/1000M Ethernet with PoE support |
| HDMI | HDMI 2.0 |
| Power Input | DC 12V |
| Power Consumption | 20W max |
| Operating Temperature | 10°C to 40°C / 50°F to 104°F |
| Size | 146 x 146 x 164 mm / 5.74" x 5.74" x 6.45" |
| Net Weight | 1.7 kg / 3.74 lbs |
| Compatibility | Clear Touch panels and third-party computing devices |
