Description

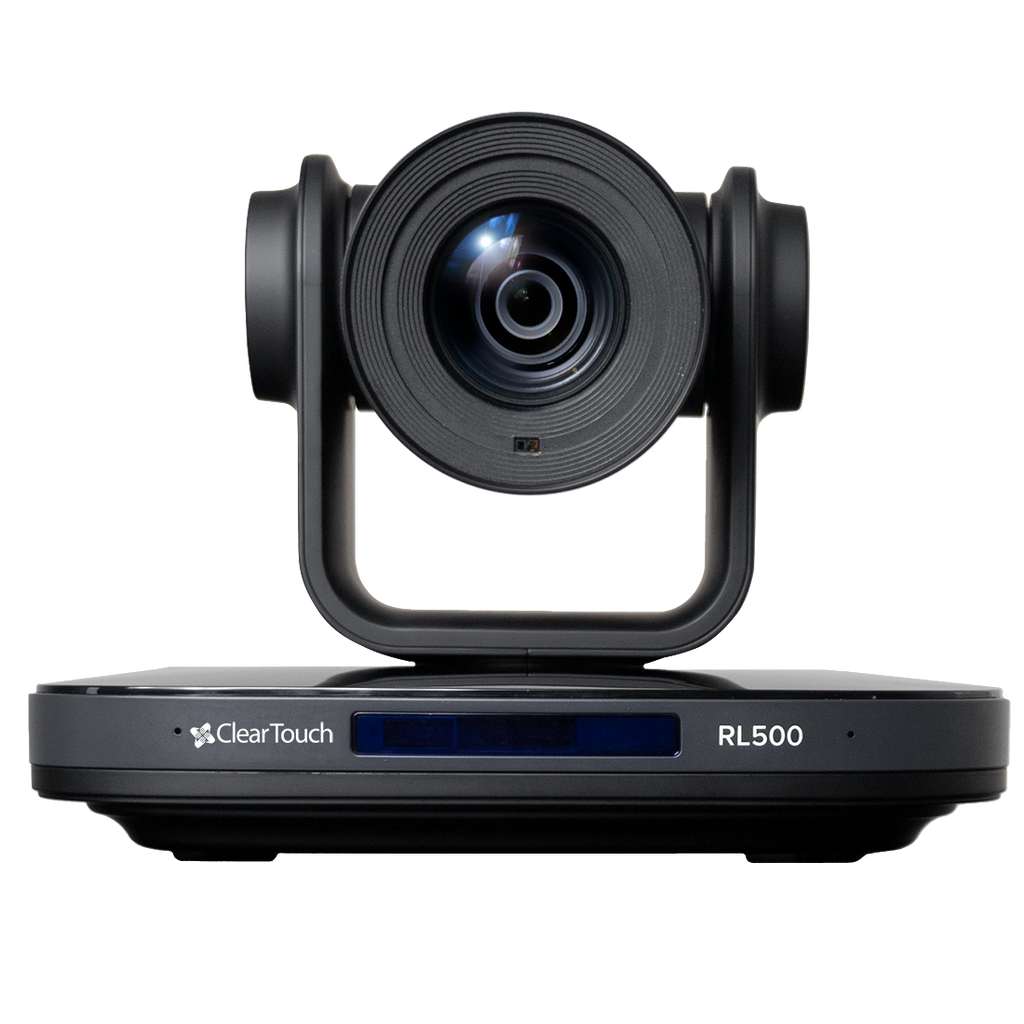

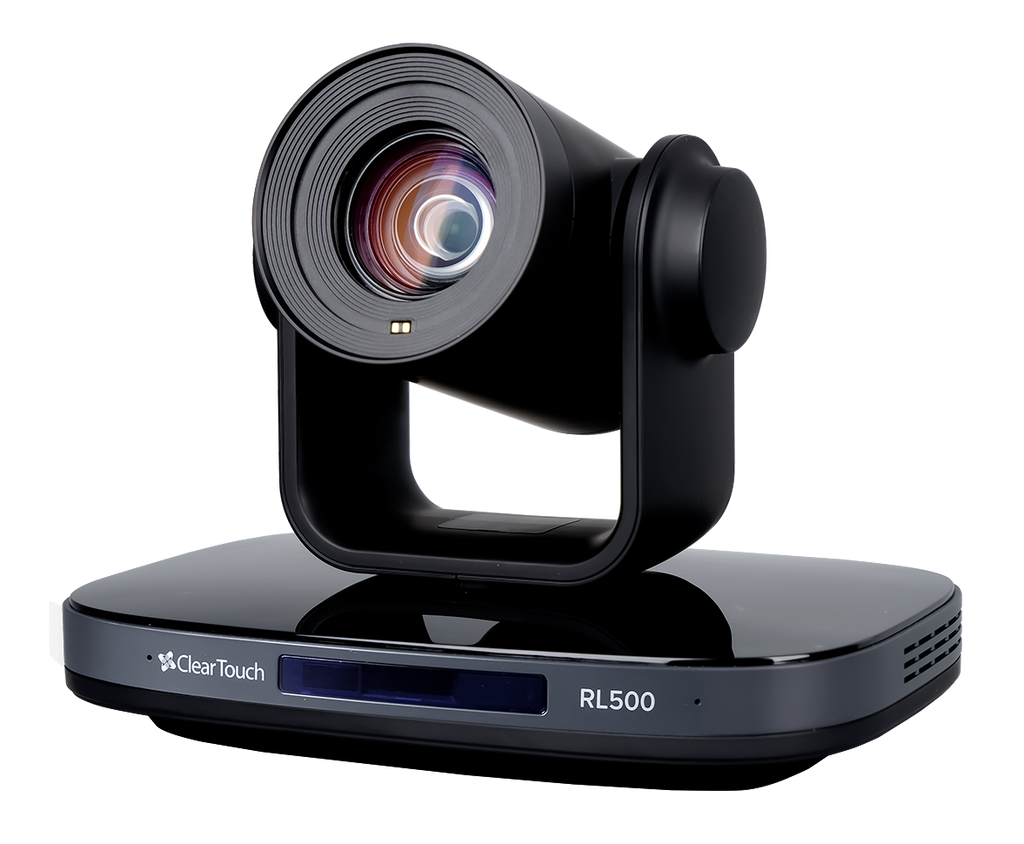

The Clear Touch RL500 is a professional 4K conference camera designed for boardrooms, lecture halls, live events, and modern collaboration spaces. With high-resolution video capture up to 4K, 20x optical zoom, auto tracking, ePTZ, and advanced 2D/3D digital noise reduction, it delivers clear, detailed video even in demanding environments.
Built with flexible connectivity options including HDMI, 3G-SDI, USB 3.0, Ethernet, RS-232, and RS-485, the RL500 integrates easily into a wide range of conferencing, streaming, and AV setups. Network support for protocols such as RTMP, RTSP, TCP/IP, HTTP, DHCP, and ONVIF makes it a reliable solution for professional video communication and content capture.
| Specification | Details |
|---|---|
| SKU | CTS-RL500-4K20 |
| Brand | Clear Touch |
| Product Line | Clear Touch RL500 |
| Product Type | Conference Camera |
| Included Power Device | Power Adapter |
| Video Resolution | Up to 3840 x 2160 4K |
| Supported Resolutions | 1024 x 576, 1280 x 720, 1920 x 1080, 3840 x 2160 |
| Optical Zoom | 20x |
| Digital Zoom | 16x |
| Field of View | 80° |
| Image Sensor | 1/1.8 CMOS |
| Video Features | Auto Tracking, ePTZ, Progressive Scanning, Low Light Performance |
| Noise Reduction | 2D and 3D Digital Noise Reduction |
| Rotation | 340° horizontal rotation; -30° / +90° vertical rotation |
| Pan Speed | 0.7 - 24.8°/sec |
| Tilt Speed | 1.7 - 69.0°/sec |
| Minimum Illumination | 0.5 lux |
| Network Features | ONVIF Support, Built-in NDI, PoE Support |
| Network Standards | DHCP, HTTP, RTMP, RTSP, TCP/IP |

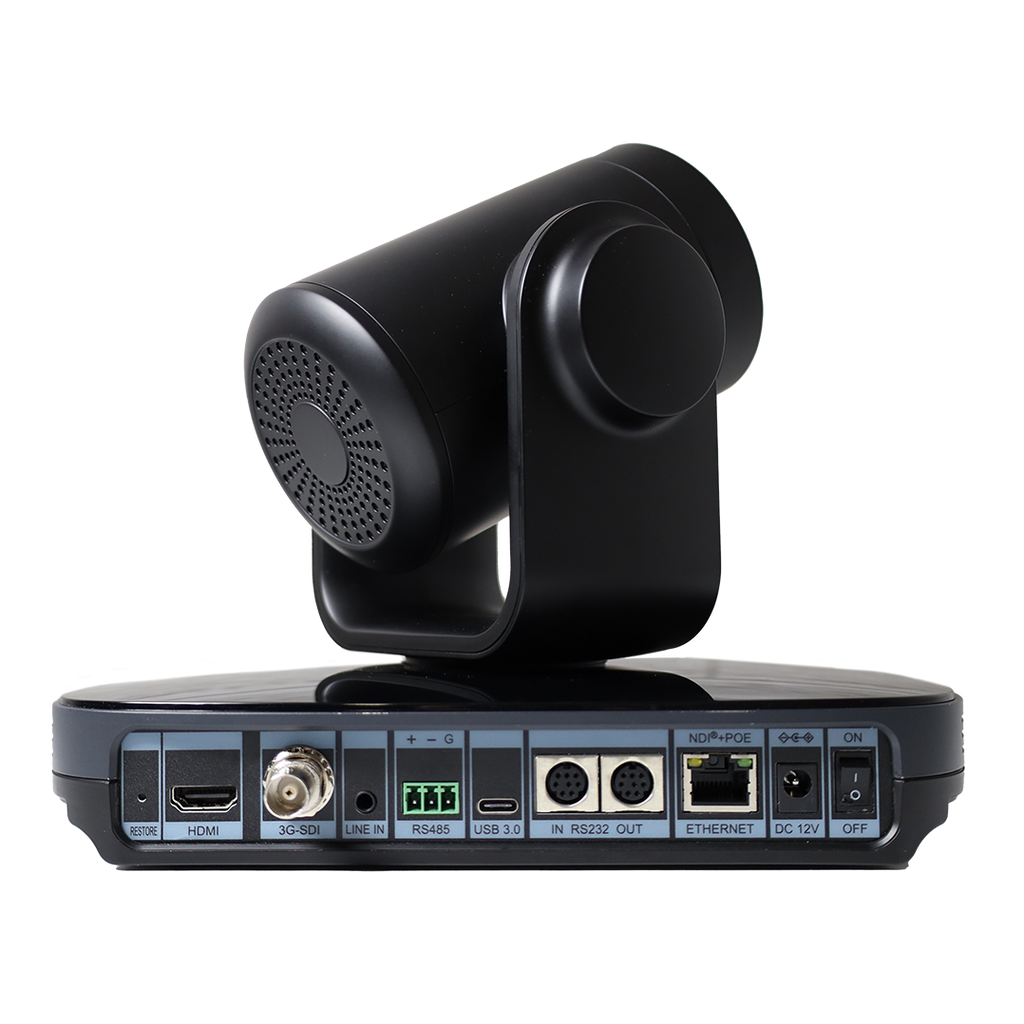

| Interfaces | HDMI Output, 3G-SDI, USB 3.0, RJ-45 Ethernet, RS-232, RS-485, 3.5 mm Audio |
| Operating Systems | Android, macOS, Linux, Windows 7 / 8 / 10 |
| Power Consumption | 18W |
| Required Voltage | DC 12V |
| Power Device Type | External Power Adapter |
| Operating Temperature | 32°F to 104°F |
| Operating Humidity | 10% - 90% |
| Touchscreen | No |
| Color | Black |
| Dimensions | 8.8" W x 6.1" D x 6.5" H |
| Weight | 3.97 lbs |
