Description

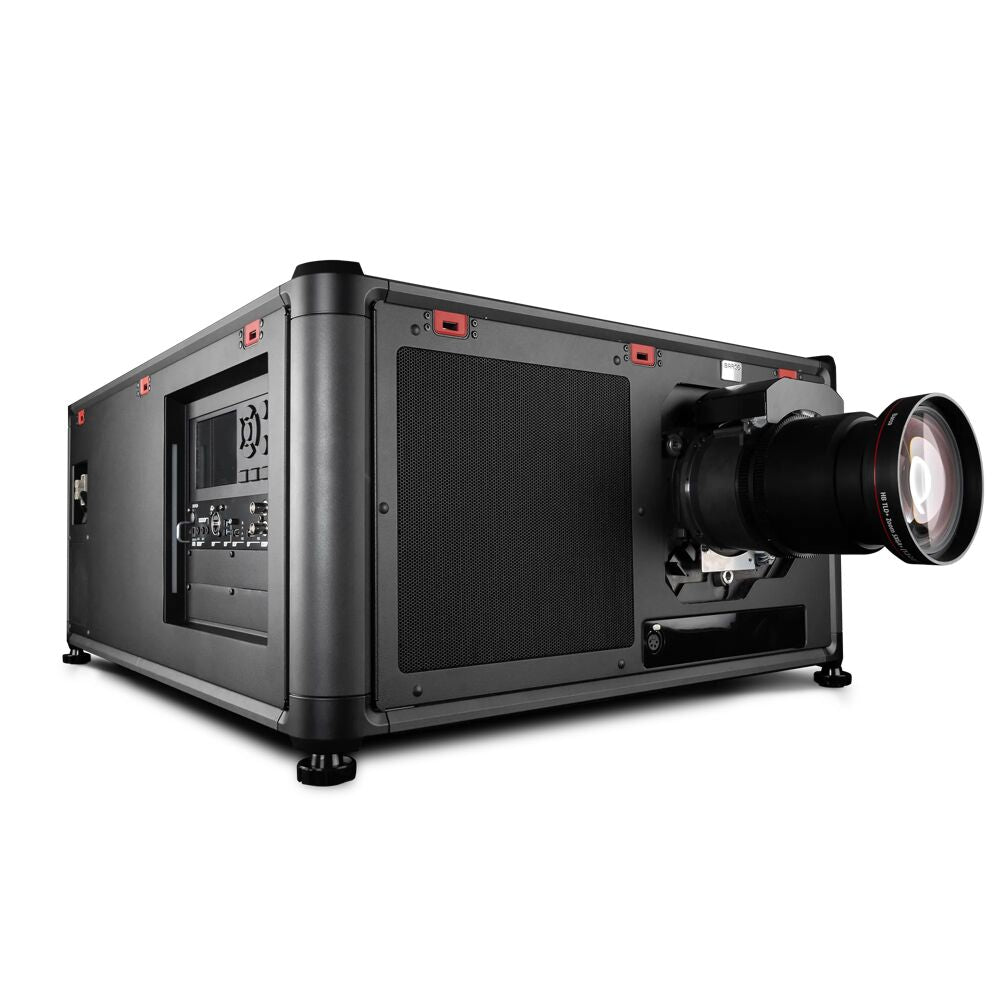

The Barco QDX-4K45 is a next-generation large venue projector engineered to deliver uncompromising brightness, precision, and reliability for demanding professional environments. With an exceptional 41,000 lumens output and true 4K UHD resolution, this 3-chip DLP laser phosphor system produces stunningly sharp visuals with rich color accuracy, even in high ambient light conditions.
Powered by Barco’s advanced Pulse electronics, the QDX-4K45 supports ultra-high bandwidth processing up to 8K at 60Hz or 4K at 240Hz, ensuring ultra-smooth motion and exceptional clarity for live events, simulation, and immersive installations. Its modular and compact design makes it one of the most portable projectors in its class while maintaining enterprise-grade durability for continuous 24/7 operation.
This configuration includes FLEX body architecture, GSM and WiFi connectivity, and integration with Barco’s Insights Management Suite, enabling remote monitoring, predictive maintenance, and optimized fleet performance. Designed for seamless compatibility with Barco TLD+ lenses, frames, and accessories, the QDX platform maximizes operational efficiency and return on investment.
| Specification | Details |
|---|---|
| Projector Type | 3-Chip DLP Laser Phosphor Projector |
| Resolution | 3840 x 2400 (4K UHD) |
| Brightness | 41,000 Center Lumens / 43,000 ISO Lumens |
| Contrast Ratio | 2,200:1 (Full Field), up to 20,000:1 with DynaBlack |
| Light Source | Blue + Red Laser Phosphor |
| Light Source Lifetime | Up to 20,000 Hours |
| Aspect Ratio | 16:10 |
| Processing Technology | Barco Pulse Electronics |
| Max Input Resolution | Up to 8K @ 60Hz / 4K @ 240Hz |
| Lens Compatibility | TLD+ Lens Range (0.37:1 to 11.5:1) |
| Lens Shift | Vertical: -150% to +130%, Horizontal: ±50% (Motorized) |
| Connectivity | HDMI 2.1, DisplayPort 1.4, RJ-45, RS232, USB, BNC 3D Sync |
| Network & Control | Ethernet, WiFi (optional), GSM (optional), DMX (optional) |
| Image Processing | Warp & Blend, Keystone Correction |
| 3D Support | Active 3D Ready |
| Operation | 24/7 Continuous Operation |
| Brightness Uniformity | 95% |
| Orientation | 360° Installation |
| Software Integration | Insights Management Suite (IMS), Pulse Toolset, Mobile Apps |
| Power Requirements | 200–240V ±10%, 50–60Hz |
| Power Consumption | Up to 3500W |
| Noise Level | Approx. 52 dB |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x L x H) | 660 x 830 x 350 mm |
| Weight | 77.5 kg |
| Warranty | 3 Years |
