Description

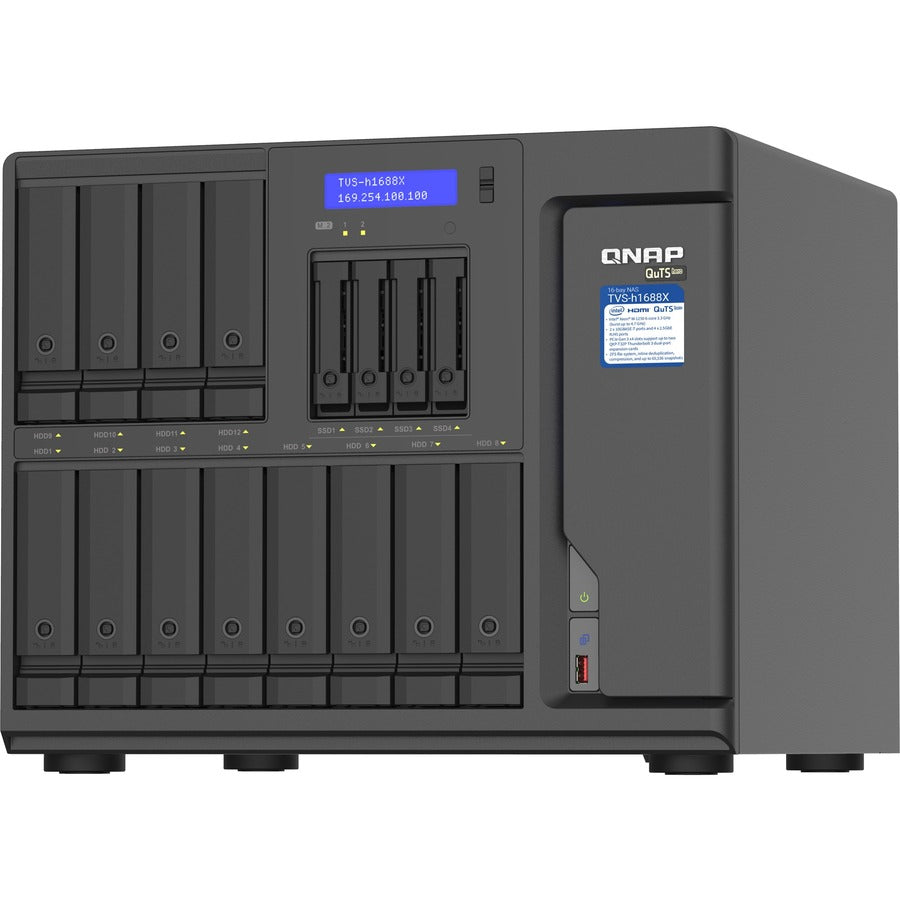

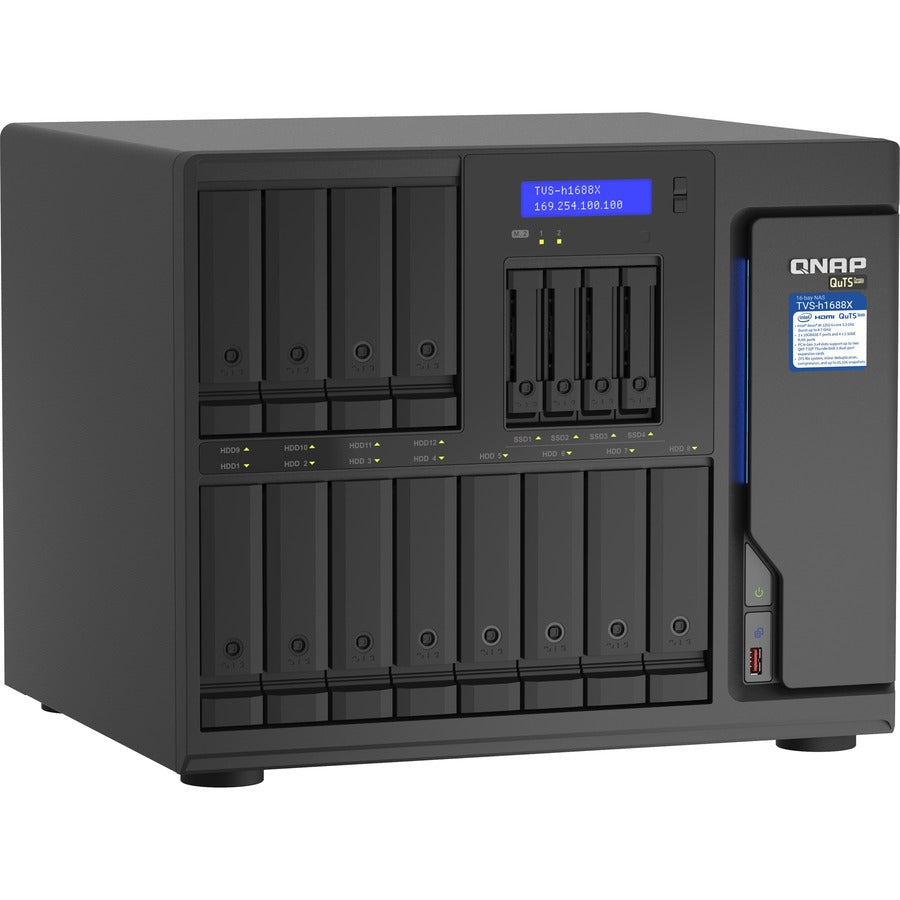

The QNAP TVS-H1688X-W1250-32G is a high-performance ZFS-based NAS designed for creative professionals, enterprise storage, and demanding business applications. Powered by an Intel® Xeon® W-1250 6-core processor with 32GB DDR4 ECC memory (expandable to 128GB), it supports up to 12 HDDs and 16 SSDs for massive storage capacity and exceptional performance.
With built-in dual 10GbE and four 2.5GbE ports, plus PCIe expandability for Thunderbolt™ 3, high-speed Ethernet, and GPU acceleration, the TVS-H1688X delivers ultra-fast file sharing, virtualization, 4K video editing, and backup solutions. Running QuTS hero 4.5.0, it offers advanced data integrity, inline deduplication, real-time SnapSync, and multiple RAID configurations for maximum reliability.
Ideal for studios, post-production houses, and enterprises needing secure, high-speed, and scalable storage, the TVS-H1688X ensures future-ready performance with flexible connectivity and expansion options.
| Specification | Details |
|---|---|
| Processor | Intel® Xeon® W-1250, 6 cores/12 threads, 3.30 GHz (up to 4.7 GHz) |
| Memory | 32GB DDR4 ECC SDRAM (4 x Long-DIMM slots, up to 128GB) |

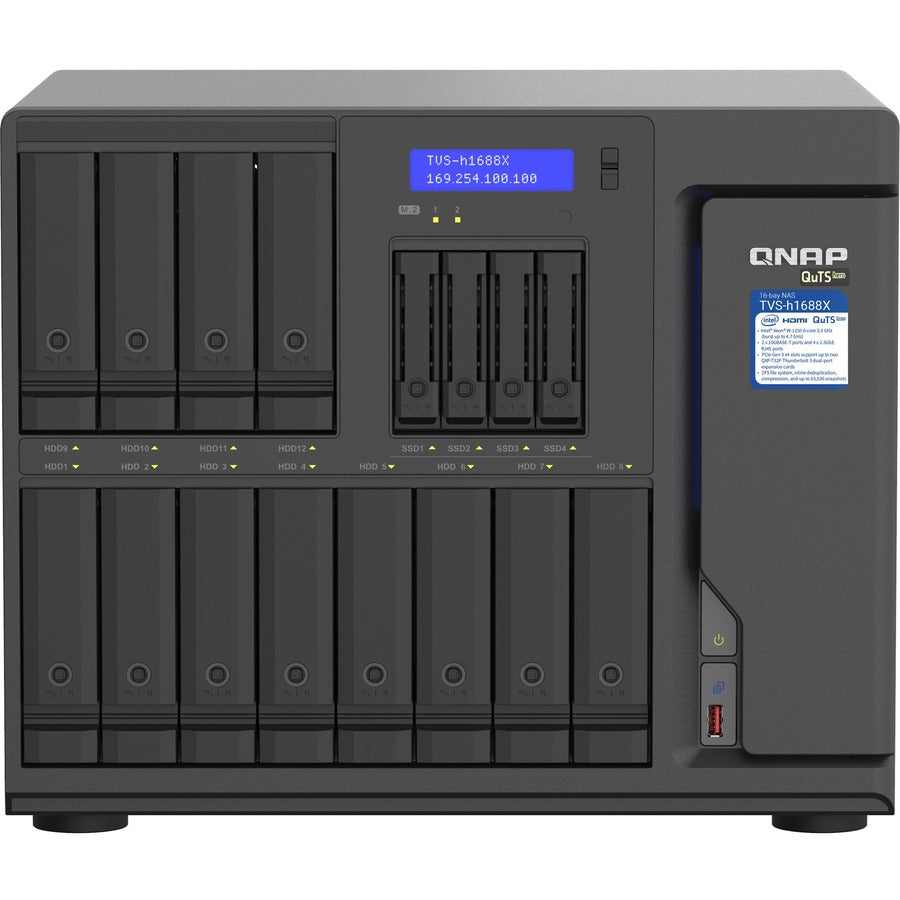

| Drive Bays | 16 total (4 x 2.5" bays, 12 x 2.5"/3.5" bays) |
| Drive Support | 12 x HDD, 16 x SSD (0 installed) |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Hot Spare |

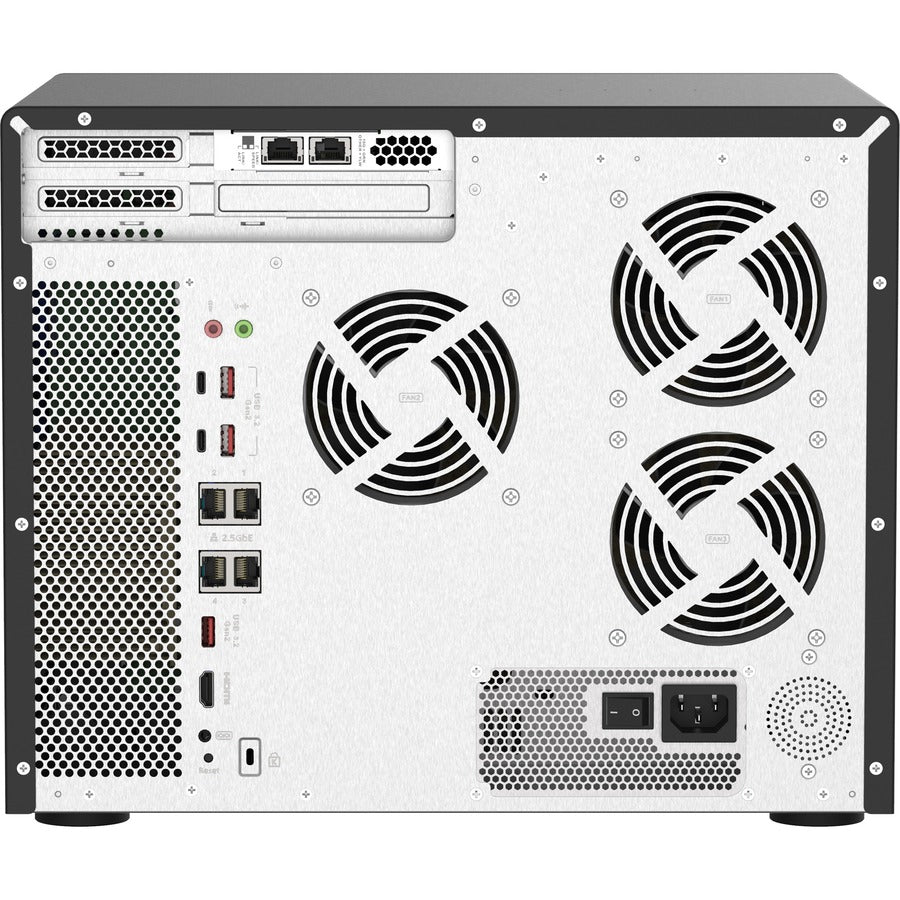

| Network Ports | 2 x 10GBASE-T, 4 x 2.5GbE (RJ-45) |
| Expansion Slots | 3 x PCIe (Gen 3 x8/x4) |
| USB Ports | 6 x USB |
| Video Output | 1 x HDMI (up to 4K @30Hz) |
| Controller | Serial ATA/600 |
| Operating System | QuTS hero 4.5.0 |
| Supported Protocols | TCP/IP, IPv4, IPv6, DHCP, DDNS, NAT, STP, HTTP/HTTPS, TLS, WEBDAV, SMB/CIFS, AFP, iSCSI, NFS, FTP/SFTP, SNMP, LDAP, UPnP, VPN, DLNA |
| Flash Memory | 5 GB |
| Form Factor | Tower |
| Dimensions (H x W x D) | 12" x 14.6" x 12.6" |
| Weight | 29.56 lbs (Shipping Weight: 49 lbs) |
| Power Supply | 550W |
| Warranty | 3-Year Limited Warranty |
| Package Contents | NAS unit, 1 x 10GBASE-T cable, power cord, screws, heatsinks, drive tray keys, QIG |
