Description

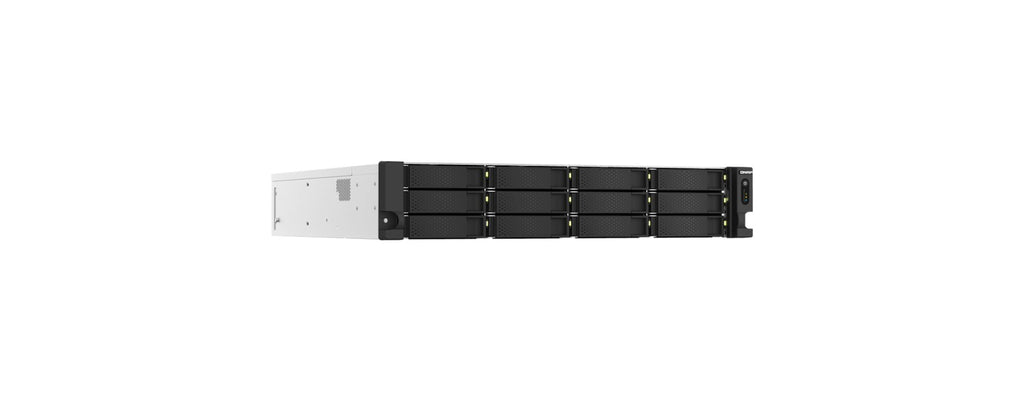

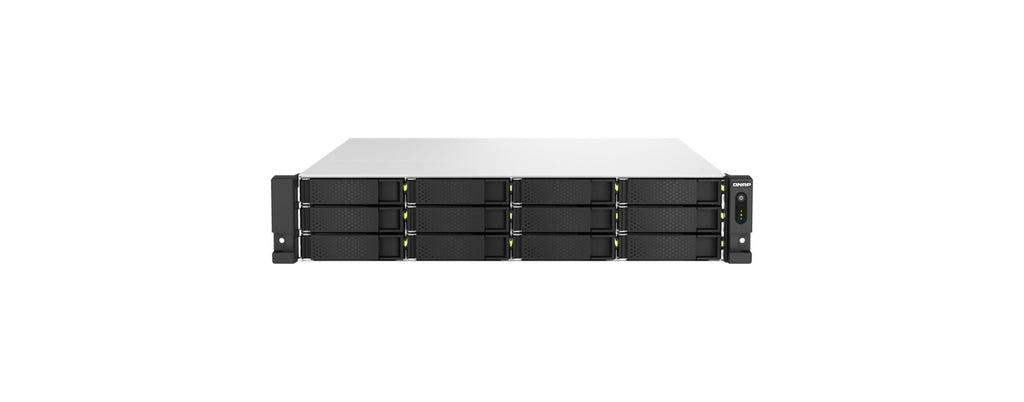

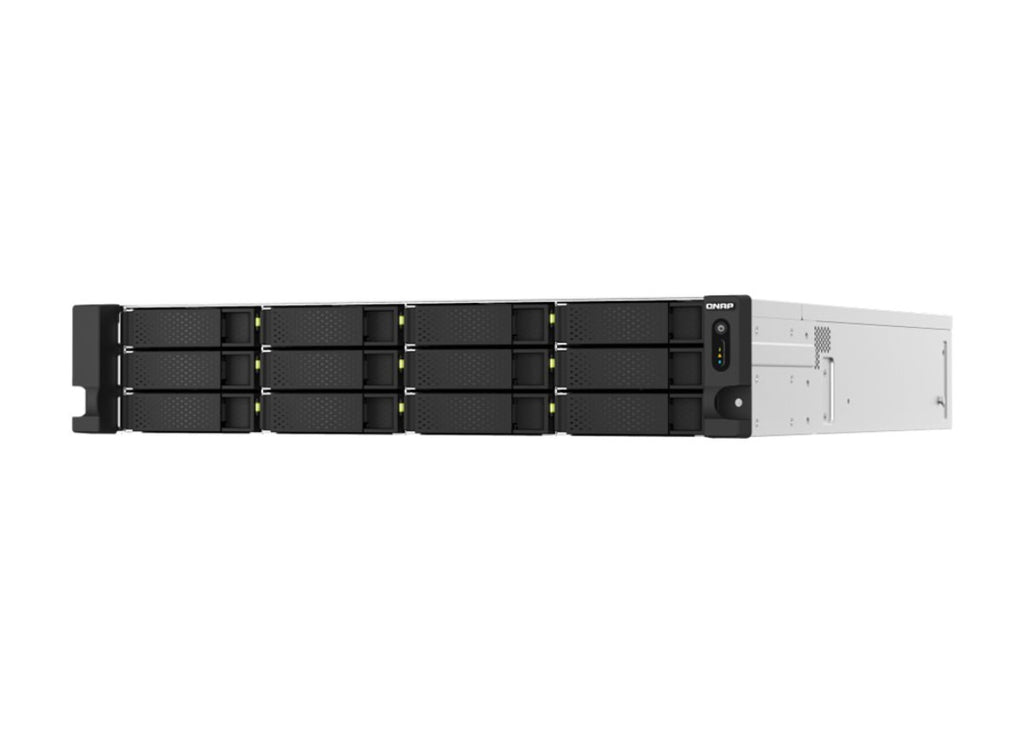

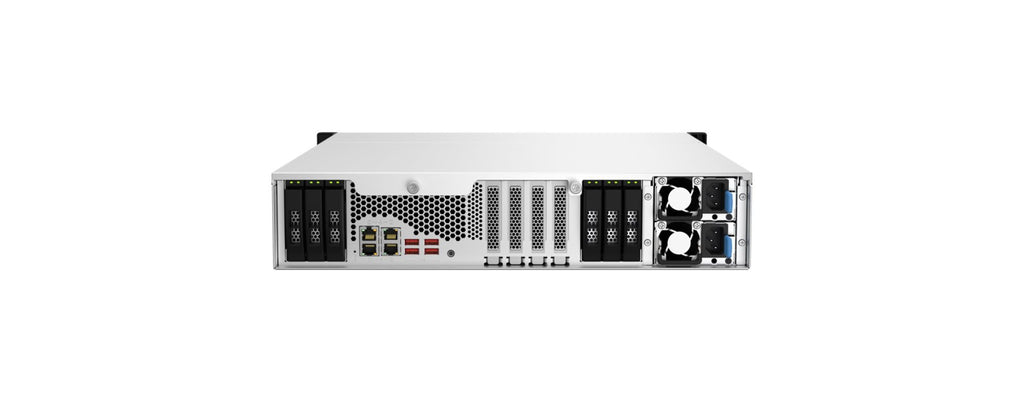

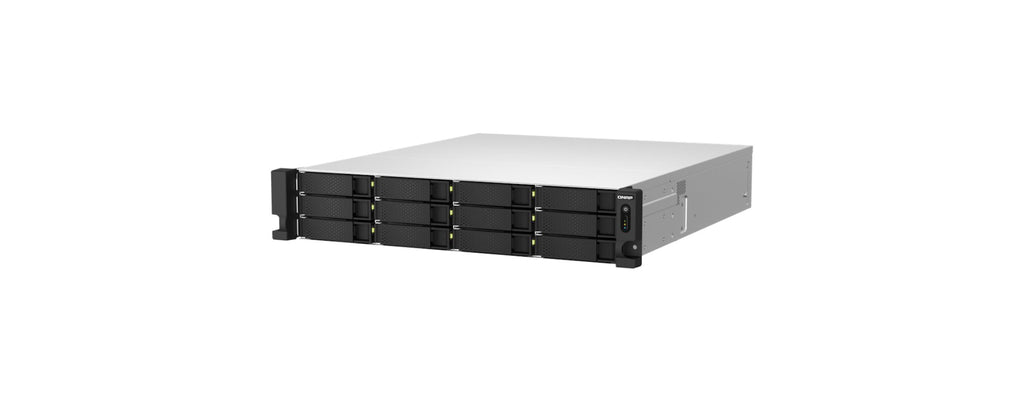

The QNAP TS-h1887XU-RP-E2336-32G is a high-capacity, 2U rackmount SAN/NAS storage system powered by the Intel® Xeon® E-2336 6-core processor and 32 GB DDR4 ECC memory (expandable to 128 GB). Designed for performance, reliability, and scalability, it features an HDD/SSD hybrid architecture that combines the large capacity of HDDs with the speed of SSDs, supporting SSD caching for IOPS-intensive workloads.
Equipped with dual 10GbE and dual 2.5GbE ports, the TS-h1887XU-RP offers high-speed connectivity for virtualization, large file transfers, and intensive backup operations. Its PCIe Gen 4 slots allow further expansion with 10/25GbE adapters, Fibre Channel cards, or QM2 SSD expansion cards. Running the ZFS-based QuTS hero operating system, it ensures enterprise-grade data integrity with inline deduplication, near-unlimited snapshots, real-time SnapSync, and QSAL technology.
Ideal for file servers, virtualization environments, VDI deployments, and hybrid cloud setups, the TS-h1887XU-RP delivers a comprehensive storage solution with advanced backup features, cloud integration, and disaster recovery options.
| Specification | Details |
|---|---|
| Model | TS-h1887XU-RP-E2336-32G |
| Form Factor | 2U Rackmount |
| Processor | Intel® Xeon® E-2336, 6-core, 2.9 GHz (Turbo up to 4.8 GHz) |
| Memory | 32 GB DDR4 ECC (up to 128 GB) |
| Drive Bays | 12 × 3.5" SATA 6Gb/s + 6 × 2.5" SATA 6Gb/s (Hot-swappable) |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60, JBOD, TM, RAID TP |
| Network Interfaces | 2 × 10GbE (RJ45), 2 × 2.5GbE (RJ45) |
| Expansion Slots | 1 × PCIe Gen 4 x8, 2 × PCIe Gen 4 x4 |
| USB Ports | 4 × USB 3.2 Gen 2 Type-A |
| iSCSI Support | Yes |
| Power Supply | 550W redundant (2 × PSU) |
| Operating System | QNAP QuTS hero h5.0.1 / QTS 5.0.1 |
| Dimensions (H × W × D) | 3.5 × 17 × 20.1 in |
| Weight | 28.66 lbs |
| Included Accessories | 2 × power cables, network cable, HDD screws (3.5" & 2.5") |
| Warranty | 3 years limited |
